Product Recognition | |
|---|
Certification Number | ZC10-16085194 |
|---|

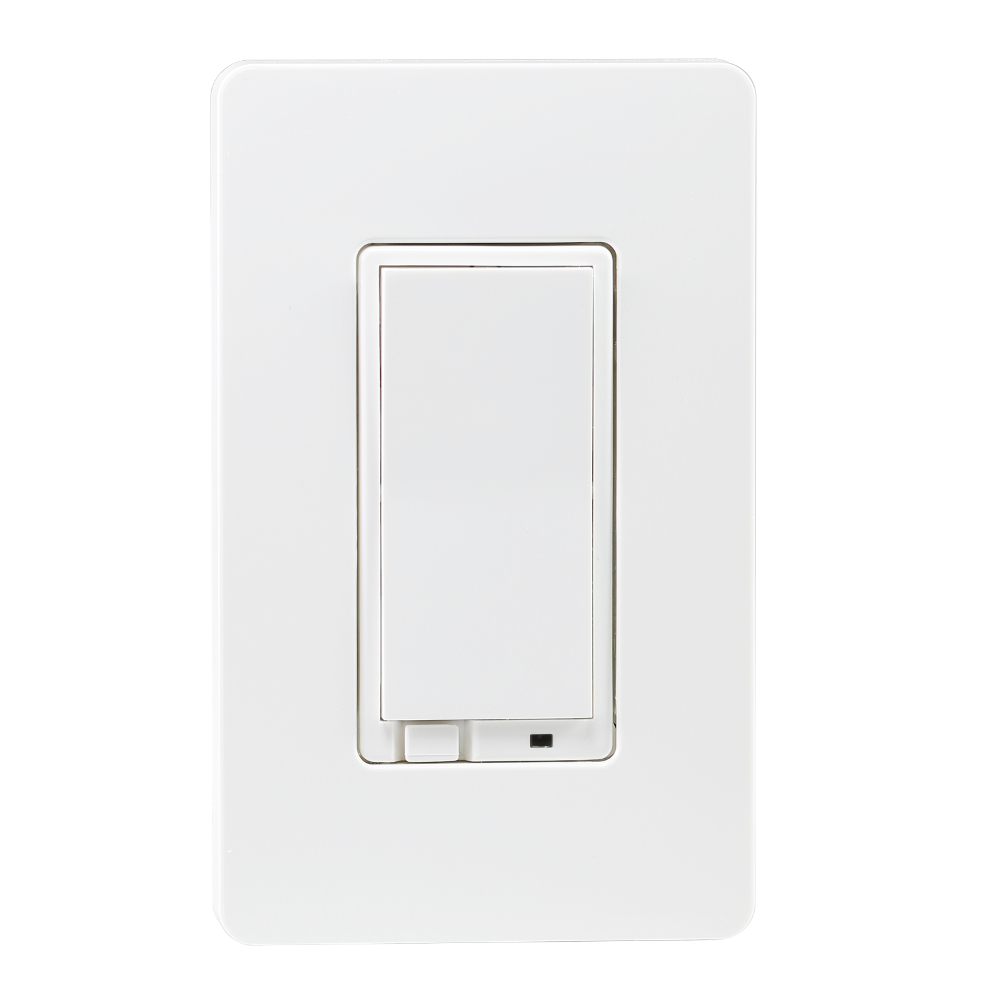

Name | Zooz Z-Wave Dimmer Light Switch |
|---|
Short Description | Use this Z-Wave Plus Dimmer Switch to set and recreate the perfect brightness for your lights with a click. Modern decora style is complemented by a screwless snap-on wall plate. |
|---|
Long Description | PRODUCT FEATURES:
- Manual or remote on/off control and dimming from your mobile device or computer (when included to a Z-Wave gateway controller)
- Z-Wave Plus with improved 500 chip for faster and safer wireless communication
- Works with most high-quality DIMMABLE LED, CFL, and incandescent bulbs
- Based on universal command classes - supported by most Z-Wave controllers
- May be associated and grouped with other Z-Wave devices for advanced home automation
- LED indicator to help locate the switch in dark space
- Simple elegant design with screwless snap-on wall plate included
- Built-in Z-Wave signal repeater for a stronger and more reliable network
SPECIFICATIONS:
Model Number: ZEN22
Z-Wave Signal Frequency: 908.42 MHz
Power: 120 VAC, 60 Hz
Maximum Loads: 500W Single-gang, 400W Double-gang, 300W Triple-gang Incandescent, 150W CFL or LED
Range: Up to 100 feet line of sight
Operating Temperature: 32-104° F (0-40° C)
Installation and Use: Indoor only |
|---|
Brand | Zooz |
|---|
Product Identifier | ZEN22 |
|---|
OEM Version | HW: 1 FW: 20.15 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x015D |
|---|
Product Type ID | 0x0112 |
|---|
Product ID | 0x241C |
|---|
User Icon | 0x1C00 |
|---|
Installer Icon | 0x1C02 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Electric Load Type | Value |
|---|
Incandescent | Dimmable LED |
| Switch Load Capacity Watts | Value |
|---|
500W Single-gang, 400W Double-gang, 300W Triple-gang Incandescent, 150W CFL or LED |
| Neutral Wire Required | | Switch Type | Value |
|---|
Decorator Paddle Push with Indicator |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Depending on your Z-Wave gateway's home automation software capabilities, you may be able to associate your Z-Wave switch in groups with other Z-Wave devices to schedule scenes and create events. This dimmer switch supports Group 1 with up to five devices for lifeline communication. This device will send SWTICH MULTILEVEL REPORT to Group 1 when operated manually.
Please refer to your controller's user guide for advanced programming instructions as they are a little different for every software. |
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | 1. Bring your Z-Wave gateway hub or controller as close to the switch as possible
2. Put your Z-Wave controller in exclusion mode
3. Tap the switch on and off quickly 3 times to complete the exclusion process
4. The device should disappear from your controller's device list | 5 | Factory Reset | The switch will be reset to factory defaults only by exclusion using a Z-Wave controller. You may use any certified Z-Wave controller to exclude and reset the switch. This device may not be reset manually when the network’s primary controller is missing or otherwise inoperable. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory. | 1 | Inclusion | 1. Bring your Z-Wave gateway hub or controller as close to the switch as possible
2. Put your Z-Wave controller in inclusion mode
3. Tap the switch on and off quickly 3 times to finalize the inclusion process
4. A new dimming device should appear on your controller's device list
Troubleshooting Tips:
If you are unable to include the Z-Wave dimmer to your controller, please try one of the following:
- Bring the controller closer to your Z-Wave switch or use a hand-held secondary controller for inclusion
- Tap your Z-Wave switch quicker 4 or 5 times once you put the controller in the inclusion mode to ensure the command has gone through
- Put your controller in the EXCLUSION mode and tap the switch quickly 3 times, then try adding it to your network again |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
