Product Recognition
Certification Number	ZC10-16085198

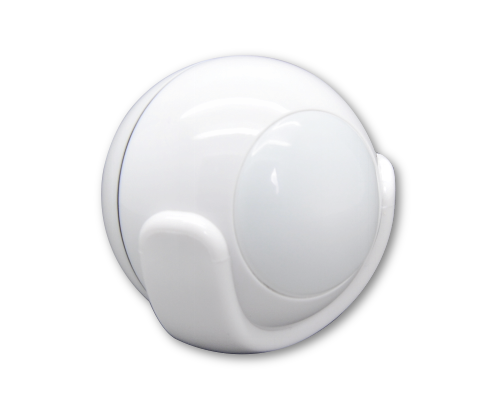

Name	Zooz Z-Wave Motion and Light Mini Sensor
Short Description	Use this compact Z-Wave Plus sensor to monitor motion and light level. Schedule scenes and events based on sensor readings and receive notifications when activity is detected.
Long Description	PRODUCT FEATURES: - Accurate motion and light level detection - Wireless notifications and low battery alerts (when included to a Z-Wave gateway controller) - Custom automation scenarios based on both light and motion triggers (advanced configuration required) - Adjustable sensitivity levels for motion detection to fit your needs - Ultra small and simple design - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Flexible and quick installation SPECIFICATIONS: Model Number: ZSE09 Z-Wave Signal Frequency: 908.42 MHz Power: 1 CR123A battery (included) Power Consumption: 0.15W Operating Temperature: 32 – 104 F Motion detection: Up to 20 feet Range: Up to 100 feet line of sight Installation and Use: Indoor only Dimensions: 1.9” x 1.8” Weight: ½ oz
Brand	Zooz
Product Identifier	ZSE09
OEM Version	HW: 66 FW: 3.80
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x027A
Product Type ID	0x0003
Product ID	0x0083
User Icon	0x0C07
Installer Icon	0x0C07
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual zooz-zse09-mini-sensor-manual.pdf
Features	Feature Values Battery Quantity Value 1 Battery Type Value CR123A Color Value White Sensors Value Motion/No Motion (Binary) Luminance
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Group 1 for lifeline communication of motion / no motion and light level status to Z-Wave controller. Supported command classes: NOTIFICATION_REPORT_V4 SENSOR_BINARY_REPORT_V2 SENSOR_MULTILEVEL_REPORT_V7 BATTERY_REPORT DEVICE_RESET_LOCALLY_NOTIFICATION 2 5 0 Group 2 for control command communication to associated Z-Wave devices in the network. Use parameters 2, 3, 5, and 8 to configure this group’s settings. Supported command classes: BASIC_SET 3 5 0 Group 3 for notifications to Z-Wave devices associated in this group. Supported command classes: NOTIFICATION_REPORT_V4 4 5 0 Group 4 for notifications to Z-Wave devices associated in this group. Supported command classes: SENSOR_BINARY_REPORT_V2
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 Trigger Action You can choose if your Mini Sensor turns an associated device on or off when sending the BASIC SET command. Use value 0 to turn the associated device OFF and value 255 to turn it ON. Adjust brightness level for a Z-Wave dimmer (Multilevel switch) by putting in any value between 1 and 99. 0 1 0 0 255 From To Description 255 255 Associated device will turn ON when triggered by the sensor 1 99 Brightness level (percentage) the associated device will turn ON to when triggered by the sensor 4 Motion Detection Use this parameter to enable and disable motion detection on your Mini Sensor. 0 1 0 0 255 From To Description 255 255 Motion detection enabled 5 Light Trigger Level Set your light sensor as a secondary trigger for associated devices. If light level in a room falls beyond the set point and motion is detected, the Mini Sensor will send BASIC_SET command to associated devices to turn ON. The number entered as the value corresponds to the number of LUX. So if 100 is entered by default, the associated device will turn ON if light level last reported by the sensor is under 100 LUX and if motion has been detected by your Mini Sensor. Values: 0 – 1000 (LUX). 100 (LUX) – default setting. 0 2 0 0 100 From To Description 0 1000 Light level change (in LUX) to set off light trigger 6 Motion Trigger Interval Adjust the time when motion is reported again after initial trigger. The number entered as the value corresponds to the number of seconds. So if 8 is entered by default, the Mini Sensor will report motion for 8 seconds after it first detects movement. The value set for this parameter can NOT be greater than value set in parameter 2. NOTE: Small interval will increase activity and decrease battery life. 0 1 0 0 8 From To Description 1 8 Number of seconds for motion trigger interval 8 Light Trigger Use this parameter to enable and disable the light sensor as secondary trigger. If this feature is enabled, the Mini Sensor will activate associated devices based on motion AND light level set in parameter 5. 0 1 0 0 0 From To Description 0 0 Light trigger disabled 255 255 Light trigger enabled 10 LED Notifications Use this parameter to turn LED notifications on or off for motion detection. 0 1 0 0 1 From To Description 0 0 LED disabled 1 1 LED enabled 7 Light Polling Interval Decide how often you want the Mini Sensor to report light level to the controller and associated devices. The number entered as the value corresponds to the number of seconds. So if 180 is entered by default, the Mini Sensor will report light level values every 3 minutes. The value set for this parameter can NOT be greater than the wake-up interval. NOTE: Small interval will increase activity and decrease battery life. 0 2 0 0 180 From To Description 60 360000 Light polling interval in seconds 9 Light Report Choose light level change to be reported by the Mini Sensor to the controller. The number entered as the value corresponds to the number of LUX. So if 100 is entered by default, the sensor will report any change of 100 LUX or more. 0 2 0 0 100 From To Description 0 255 Light level change (in LUX) to be reported by the sensor to the controller
Texts	ID Description Value 5 Factory Reset When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. To complete the process, make sure the Mini Sensor is powered on, then open the cover and PRESS AND HOLD the Z-Wave button for AT LEAST 10 SECONDS until the LED indicator flashes ONCE. Release the button. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory. 2 Exclusion 1. Make sure the Mini Sensor is powered on and located within direct range of your Z-Wave gateway controller 2. Put your Z-Wave controller into exclusion mode 3. Press and release the Z-Wave button 3 TIMES quickly. The LED indicator will flash quickly 4. The Mini Sensor should disappear from your controller's device list 1 Inclusion 1. Bring the Mini Sensor within direct range of your controller 2. Carefully turn and lift the cover of your Mini Sensor to access the battery 3. Remove the plastic pull-tab from the battery slot. The LED indicator will blink slowly 4. Put your Z-Wave controller into inclusion mode 5. Press and release the Z-Wave button on the Contact Sensor 3 TIMES quickly. The LED indicator will flash quickly 6. A new motion and light sensor will appear on your controller's device list Troubleshooting Tips If you are unable to include the Z-Wave Mini Sensor to your controller, please try one of the following: - Bring the Mini Sensor closer to your Z-Wave controller - Once in inclusion mode, press and release the Z-Wave button quickly 6-7 TIMES to ensure the command has gone through - Put your controller into EXCLUSION mode. Press and release the Z-Wave button quickly 3 TIMES, and then try adding it to your network again 4 Device Wake-Up If you change settings and parameters for the sensor, you may need to wake it up manually for the changes to be recorded. Press and release the Z-Wave button ONCE to wake the device up. The LED indicator will flash ONCE. The sensor’s wake-up interval is set to 12 hours by default to save battery life. Though not recommended, you can change the wake-up interval using your controller’s advanced settings if available. Minimum value: 300s (5 minutes), maximum value: 16,777,200s (around 194 days). Accepted values need to match minute intervals, so 300, 360, 420, etc.
Supported Multilevel Sensors	Multilevel Sensor Type 0x02 Illuminance
Supports NWI	Yes
Supports Explorer Frames	Yes
