Product Recognition | |
|---|
Certification Number | ZC10-16115307 |
|---|

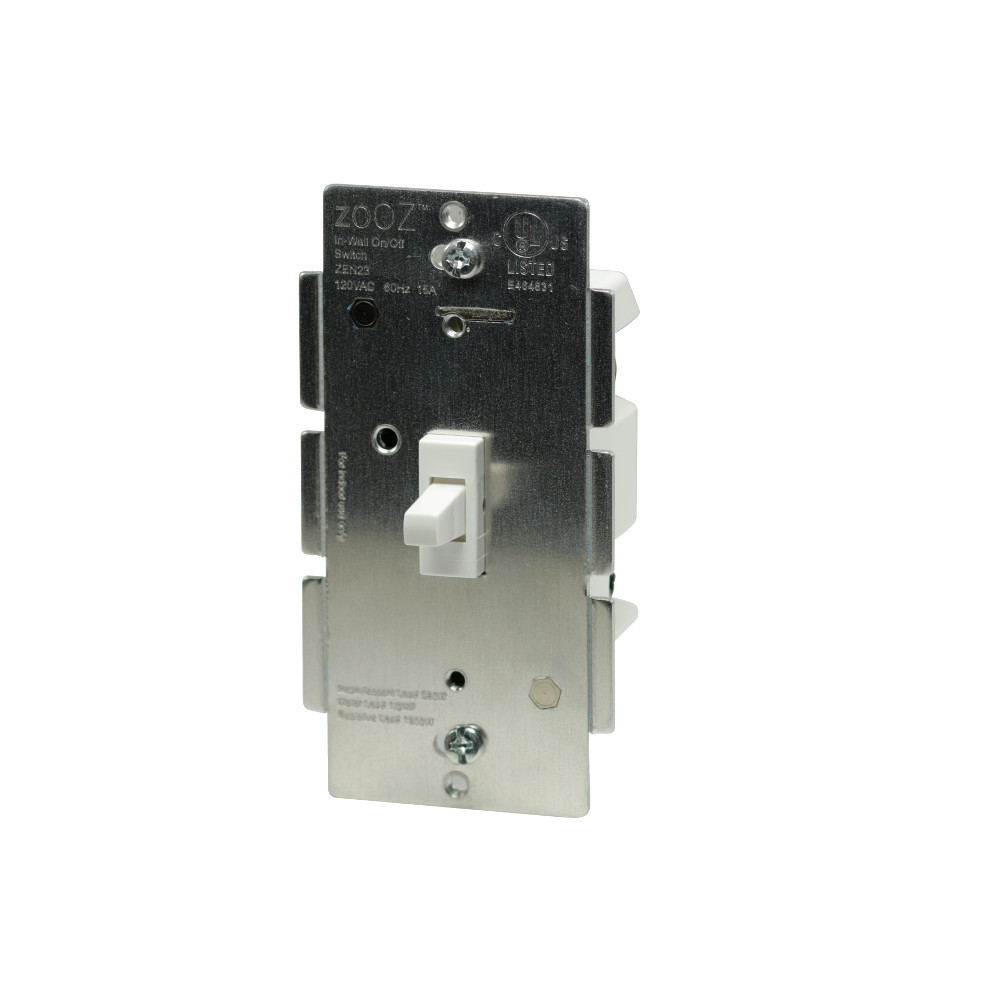

Name | Zooz Z-Wave Plus On/Off Toggle Switch |
|---|
Short Description | Use the ZEN23 on/off toggle switch instead of your existing light switch to add wireless control of lights or small appliances. |
|---|
Long Description | FEATURES
- Manual or remote on/off control from your mobile device or computer (when included to a Z-Wave gateway controller)
- Z-Wave Plus with improved 500 chip for faster and safer wireless communication
- Works with LED, CFL, and incandescent bulbs (minimum 15Watts on load required)
- Based on simple and universal binary switch command class - supported by most Z-Wave controllers
- May be associated and grouped with other Z-Wave devices for advanced home automation
- Built-in Z-Wave signal repeater for a stronger and more reliable network
SPECIFICATIONS
Model Number: ZEN23
Z-Wave Signal Frequency: 908.42 MHz
Power: 120 VAC, 60 Hz
Maximum Loads: 960W Incandescent, 1800W (15A) Resistive, ½ HP Motor
Minimum Load: 15W for LED and CFL bulbs
Range: Up to 100 feet line of sight
Operating Temperature: 32-104° F (0-40° C)
Installation and Use: Indoor only |
|---|
Brand | Zooz |
|---|
Product Identifier | ZEN23 |
|---|
OEM Version | HW: 1 FW: 20.16 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x015D |
|---|
Product Type ID | 0x0112 |
|---|
Product ID | 0x251C |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0702 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Load Capacity Current | | Color | | Electric Load Type | Value |
|---|
Incandescent | Fluorescent | LED |
| Neutral Wire Required | | Switch Type | | Switch Load Capacity Watts | Value |
|---|
960 Watts (incandescent), 1800 Watts (resistive) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Toggle Control | Use it to change between 2 control modes. Mode 1 will turn the light on when you toggle the switch up, and turn it off when you toggle the switch down. Mode 2 will turn the light on when you toggle the switch down, and turn it off when you toggle the switch up. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Mode 1 (up for on, down for off) | 1 | 1 | Mode 2 (down for on, up for off) |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | 1. Bring your Z-Wave gateway hub or controller within direct range of the switch
2. Put your Z-Wave controller in exclusion mode
3. Toggle the switch up and down quickly 3 times to complete the exclusion process
4. The device should disappear from your controller's device list
Please repeat the process following all steps carefully if the first attempt is unsuccessful | 1 | Inclusion | 1. Bring your Z-Wave gateway hub or controller within direct range of the switch
2. Put your Z-Wave controller in inclusion mode
3. Toggle the switch up and down quickly 3 times to finalize the inclusion process
4. A new on/off device should appear on your controller's device list
Troubleshooting Tips:
If you are unable to include the Toggle Switch to your controller, please try one of the following:
- Bring the controller closer to your Z-Wave switch or use a hand-held secondary controller for inclusion
- Toggle your Z-Wave switch quicker 4 or 5 times once you put the controller in the inclusion mode to ensure the command has gone through
- Put your controller in the EXCLUSION mode and toggle the switch quickly 3 times, then try adding it to your network again | 5 | Factory Reset | The Toggle Switch will be reset to factory defaults only by exclusion using a Z-Wave controller. You may use any certified Z-Wave controller to exclude and reset the switch. This device may not be reset manually when the network’s primary controller is missing or otherwise inoperable. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
