Product Recognition
Certification Number	ZC10-17015394

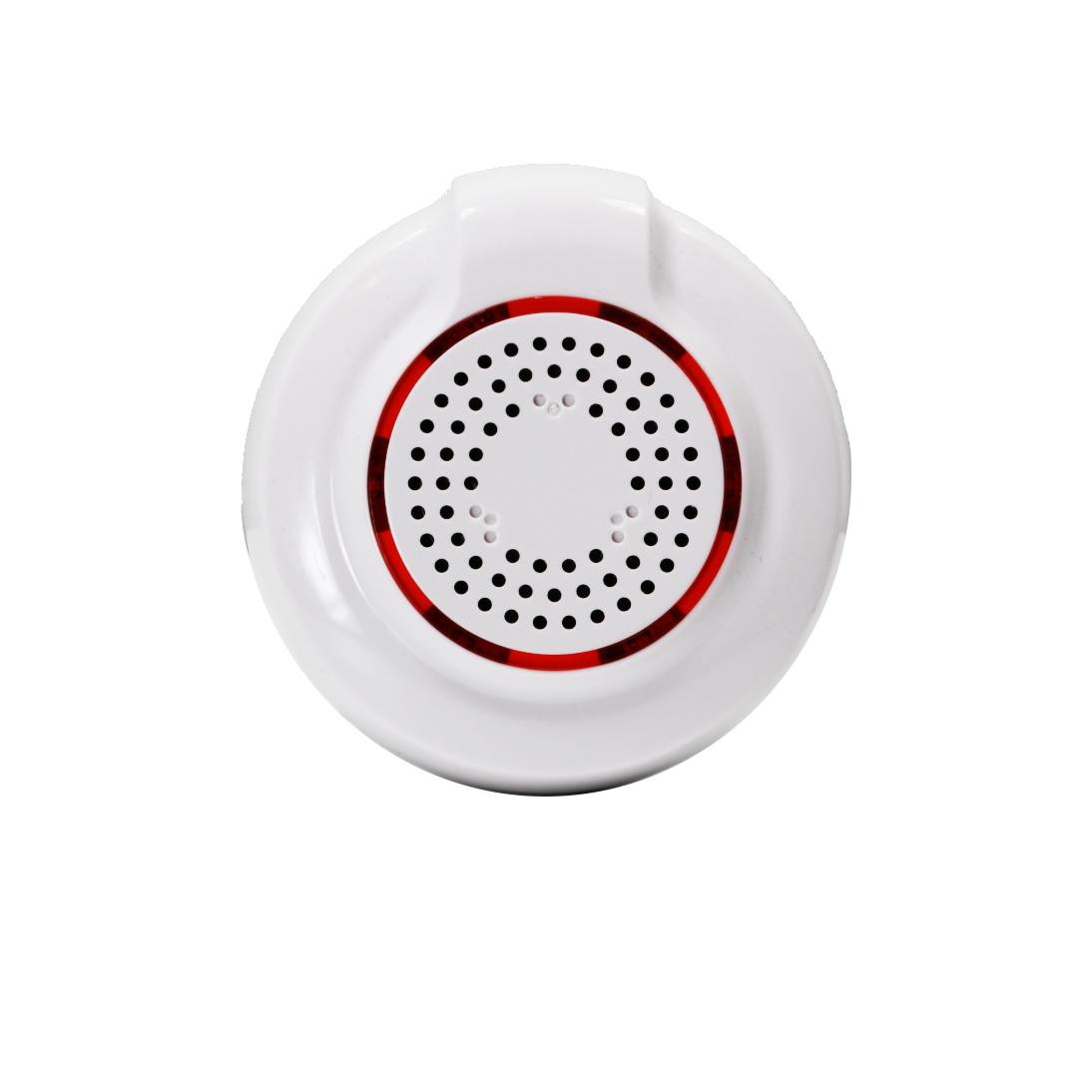

Name	Zooz Z-Wave Plus Smart Chime
Short Description	Use the Zooz Z-Wave Plus Smart Chime to receive discreet sound notifications if a door was opened when you're home or have it trigger a siren alarm when your hub is in away mode.
Long Description	Product features: - Audio and visual notifications triggered by other Z-Wave devices or scheduled in your routine - Choose from 10 different sounds for chime and siren modes - Advanced configuration available - Powerful long-lasting batteries - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Small size and quick installation Specifications: Model Number: ZSE33 Z-Wave Signal Frequency: 908.42 MHz Power: 2 CR123 batteries (included) Power Consumption: 2W Operating Temperature: 32 – 104 F Range: Up to 100 feet line of sight Installation and Use: Indoor only Dimensions: 2.7” x 1.2” Weight: 3 oz
Brand	Zooz
Product Identifier	ZSE33
OEM Version	HW: 48 FW: 2.65
Hardware Platform	ZM5202
Z-Wave Version	6.51.08
Library Type	SLAVE_ROUTING
Device Type	Siren
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x027A
Product Type ID	0x0003
Product ID	0x0088
User Icon	0x0F00
Installer Icon	0x0F00
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Security Add-Ons
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_NOTIFICATION_V6 Notification V6 0x71 6 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual zooz-z-wave-plus-smart-chime-zse33-user-manual-online.pdf
Features	Feature Values Battery Quantity Value 2 Battery Type Value CR123 Color Value White
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline. Supported command classes: SWITCH_BINARY_REPORT NOTIFICATION_REPORT BATTERY_REPORT DEVICE_RESET_LOCALLY_NOTIFICATION 2 5 0 Status notifications to Z-Wave devices associated in this group. Supported command classes: SWITCH_BINARY_REPORT 3 5 0 Notifications to Z-Wave devices associated in this group. Supported command classes: NOTIFICATION_REPORT
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 Chime Sound Duration Choose how many times the chime should repeat the doorbell sound once triggered by a BASIC_SET alarm command from a door sensor. Values: 0 – chime is off, 1 – 254 (cycles); 255 – chime sound continues until battery drains; 2 – default setting. 0 1 0 0 2 From To Description 0 0 Chime is off 1 254 Number of cycles 255 255 chime sound continues until battery drains 4 Chime Volume Choose from 3 volume levels for the doorbell sound. Set volume to low, medium, or high. 0 1 0 0 3 From To Description 1 3 Low (1), medium (2), high (3) 5 Siren Alarm Tone Choose one of the 10 different tones for alarm siren. 0 1 0 0 10 From To Description 1 10 Alarm tones from library 6 Chime Tone Choose one of the 10 different tones for doorbell. 0 1 0 0 4 From To Description 1 10 Chime tones from library 7 Siren Alarm or Chime Mode Switch between Siren Alarm (configured by parameters 1, 2, 5, 8) and Chime / Doorbell (parameters 3, 4, 6, 9) modes. Values: 1 – Siren Alarm enabled; 2 – Chime enabled (default). 0 1 0 0 2 From To Description 1 1 Siren Alarm enabled 2 2 Chime enabled 8 LED Notifications for Siren Alarm Enable or disable visual alarm for Siren mode. The LED will blink when triggered. Values: 0 – LED disabled; 1 – LED enabled (default). 0 1 0 0 1 From To Description 0 0 LED disabled 1 1 LED enabled 9 LED Notifications for Chime Enable or disable visual alarm for Chime mode. The LED will blink when triggered. Values: 0 – LED disabled (default); 1 – LED enabled. 0 1 0 0 0 From To Description 0 0 LED disabled 1 1 LED enabled 1 Siren Volume Choose from 3 volume levels for the alarm siren sound. Set volume to low, medium, or high. 0 1 0 0 3 From To Description 1 3 Low (1), medium (2), high (3) 2 Siren Alarm Duration Choose from 5 modes to set the duration for siren alarm: 0 – alarm is off 1 – alarm goes off for 30 seconds 2 – alarm goes off for 60 seconds 3 – alarm goes off for 5 minutes 255 – alarm continues until battery drains 0 1 0 0 1 From To Description 1 1 alarm goes off for 30 seconds 2 2 alarm goes off for 60 seconds 3 3 alarm goes off for 5 minutes 255 255 alarm continues until battery drains 0 0 alarm is off
Texts	ID Description Value 4 Device Wake-Up Press and release the Z-Wave button three times. 2 Exclusion 1. Make sure the Smart Chime is powered on and located within direct range of your Z-Wave gateway controller 2. Put your Z-Wave controller in exclusion mode 3. Press and release the Z-Wave button 3 TIMES quickly. The LED indicator will flash quickly 4. The Smart Chime should disappear from your controller's device list If the first attempt is unsuccessful, please repeat the process following all steps carefully. 5 Factory Reset When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. To complete the process, make sure the Smart Chime is powered on, then PRESS AND HOLD the Z-Wave button for AT LEAST 10 SECONDS until the LED indicator flashes ONCE. Release the button. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory. 1 Inclusion Auto Inclusion: 1. Put your Z-Wave controller in inclusion mode 2. Carefully remove the cover from the device 3. Remove the plastic pull-tab from the battery slot – the Chime will automatically enter inclusion mode for 20 seconds 4. A new alarm siren / doorbell device will appear on your controller's device list Manual Inclusion: 1. Bring the Smart Chime within direct range of your controller 2. Carefully remove the cover from the device 3. Remove the plastic pull-tab from the battery slot. The LED indicator will blink slowly 4. Put your Z-Wave controller in inclusion mode 5. Press and release the Z-Wave button on the Smart Chime 3 TIMES quickly. The LED indicator will flash quickly 6. A new alarm siren / doorbell device will appear on your controller's device list (if it connects as an on/off switch, you may need to change the device type manually. Contact us for instructions).
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
