Product Recognition
Certification Number	ZC10-16115308

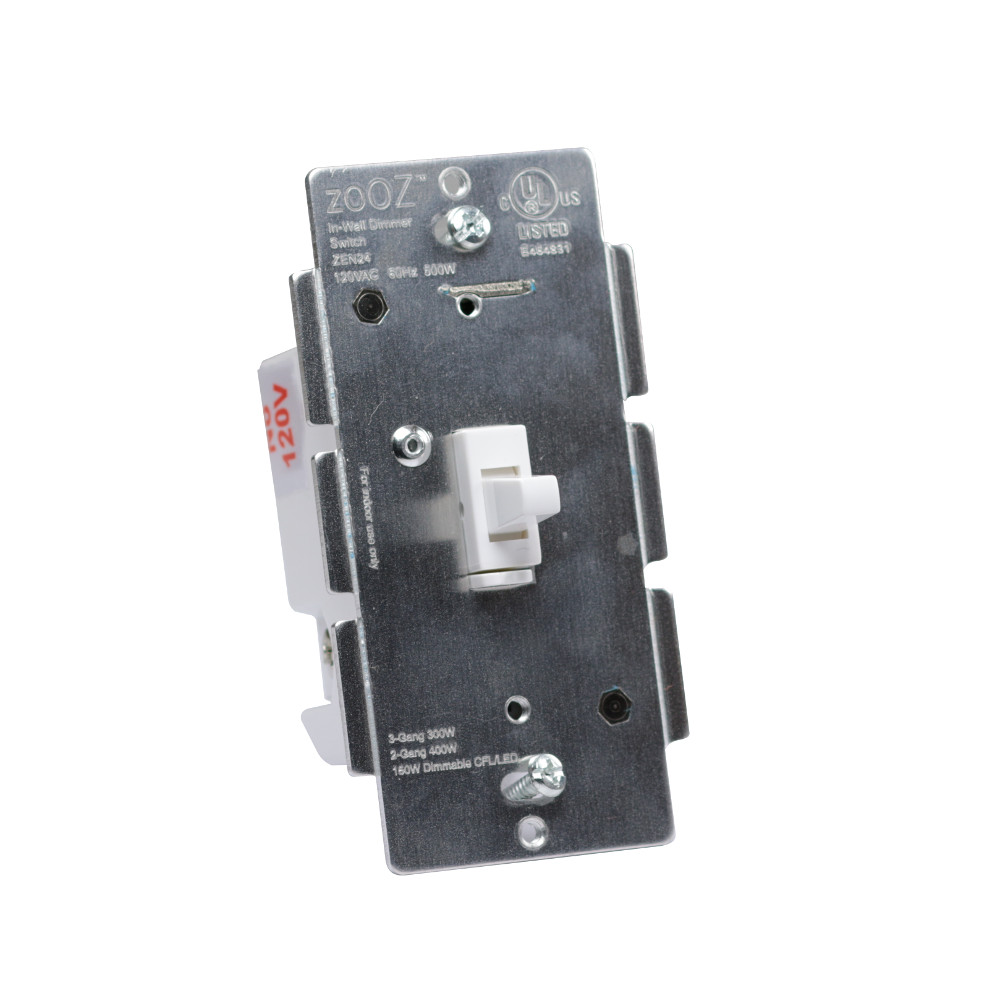

Name	Zooz Z-Wave Plus Toggle Dimmer Switch
Short Description	Replace a classic dimmer switch with this smart Z-Wave Plus ZEN24 equivalent and control lighting, adjust brightness, or recreate settings remotely.
Long Description	FEATURES - Manual or remote on/off control and dimming from your mobile device or computer (when included to a Z-Wave gateway controller) - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Works with most high-quality DIMMABLE LED, CFL, and incandescent bulbs (20 Watts minimum required) - Based on universal command classes - supported by most Z-Wave controllers - May be associated and grouped with other Z-Wave devices for advanced home automation - Air-gap switch to power the dimmer off when changing light bulbs - Built-in Z-Wave signal repeater for a stronger and more reliable network SPECIFICATIONS Model Number: ZEN24 Z-Wave Signal Frequency: 908.42 MHz Power: 120 VAC, 60 Hz Maximum Loads: 600W Single-gang, 500W Double-gang, 400W Triple-gang Incandescent, 150W CFL or LED Minimum Load: 20W for LED and CFL bulbs Range: Up to 100 feet line of sight Operating Temperature: 32-104° F (0-40° C) Installation and Use: Indoor only
Brand	Zooz
Product Identifier	ZEN24
OEM Version	HW: 1 FW: 20.15
Hardware Platform	ZM5202
Z-Wave Version	6.51.07
Library Type	SLAVE_ROUTING
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x015D
Product Type ID	0x0111
Product ID	0x261C
User Icon	0x1C00
Installer Icon	0x1C02
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual zooz-z-wave-plus-toggle-dimmer-zen24-manual.pdf
Features	Feature Values Neutral Wire Required Switch Type Value Toggle Color Value White Electric Load Type Value Incandescent Dimmable LED Switch Load Capacity Watts Value 600W Single-gang, 500W Double-gang, 400W Triple-gang Incandescent, 150W Dimmable LED
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Toggle Control Use it to change between 2 control modes. Mode 1 will turn the light on when you toggle the switch up, and turn it off when you toggle the switch down. Mode 2 will turn the light on when you toggle the switch down, and turn it off when you toggle the switch up. 0 1 0 0 0 From To Description 0 0 Mode 1 (up for on, down for off) 1 1 Mode 2 (down for on, up for off)
Texts	ID Description Value 2 Exclusion 1. Bring your Z-Wave gateway hub or controller within direct range of the switch 2. Put your Z-Wave controller in exclusion mode 3. Toggle the switch up and down quickly 3 times to complete the exclusion process 4. The device should disappear from your controller's device list Please repeat the process following all steps carefully if the first attempt is unsuccessful 1 Inclusion 1. Bring your Z-Wave gateway hub or controller within direct range of the switch 2. Put your Z-Wave controller in inclusion mode 3. Toggle the switch up and down quickly 3 times to finalize the inclusion process 4. A new dimmer switch should appear on your controller's device list Troubleshooting Tips: If you are unable to include the Toggle Dimmer to your controller, please try one of the following: - Bring the controller closer to your Z-Wave switch or use a hand-held secondary controller for inclusion - Toggle your Z-Wave switch quicker 4 or 5 times once you put the controller in the inclusion mode to ensure the command has gone through - Put your controller in the EXCLUSION mode and toggle the switch quickly 3 times, then try adding it to your network again 5 Factory Reset The Toggle Dimmer will be reset to factory defaults only by exclusion using a Z-Wave controller. You may use any certified Z-Wave controller to exclude and reset the switch. This device may not be reset manually when the network’s primary controller is missing or otherwise inoperable. NOTE: All previously recorded activity and custom settings will be erased from the device’s memory.
Supports NWI	Yes
Supports Explorer Frames	Yes
