Product Recognition

Certification Number

ZC14-22100148

Name

ZPAD V3.4

Short Description

Long Description

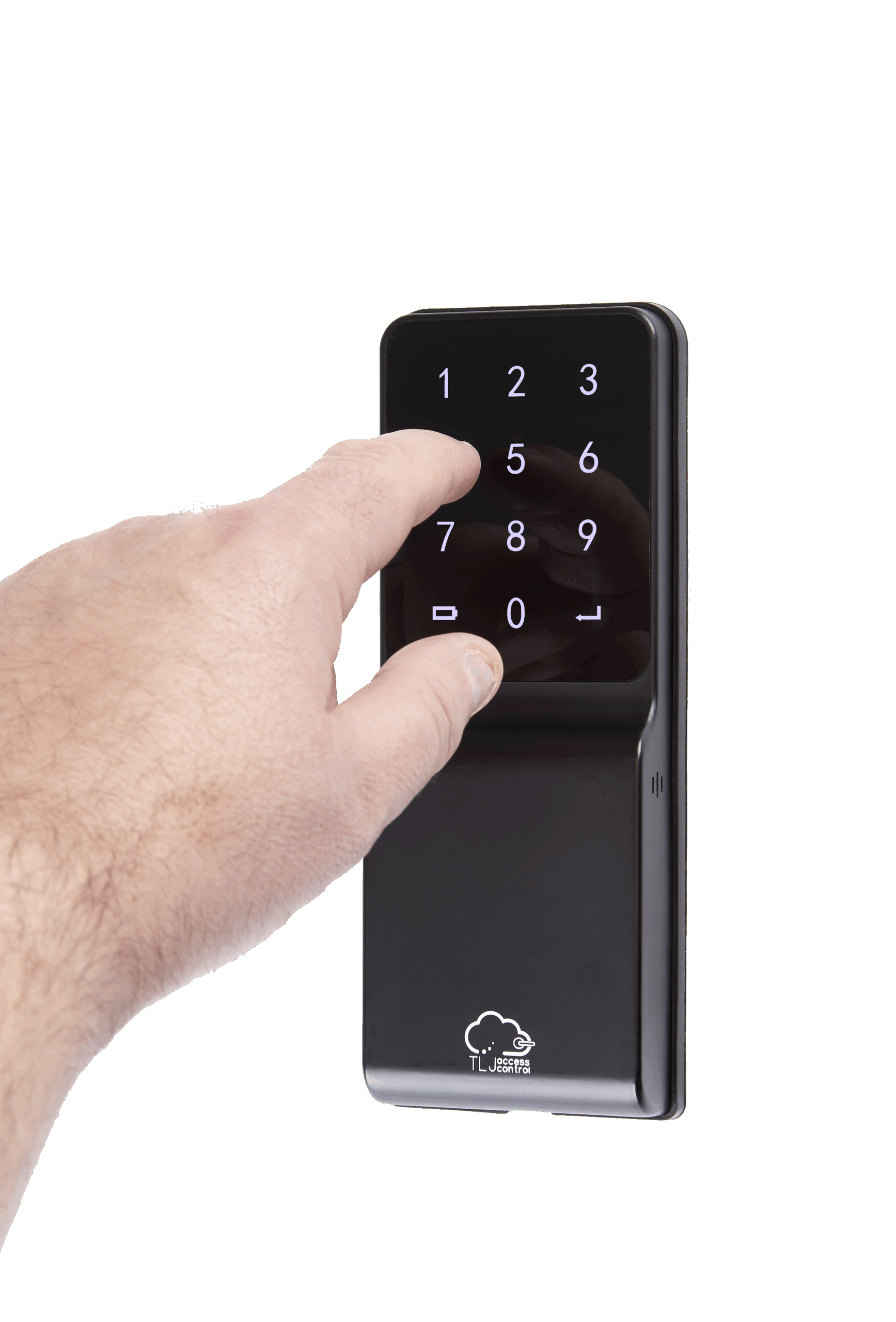

Digital Keypad, which wirelessly pairs to a compatible TLJ battery powered lock set. Totally wire-free & battery powered , with embedded Z-Wave™ capabilities for remote control. The Zpad has 2 embedded modes of operation; DIY mode or Z-Wave™ mode. Essentially, DIY mode allows the Zpad to be managed and configured using the onboard menu, utilizing the keypad digits as navigation. It is a very comprehensive menu, aimed to offer the same level of configuration as the Z-Wave™ operational mode. For example, the Zpad administrator can choose from 3 different volume options, 2 different user types, 2 different styles of one touch locking & 3 different types of factory reset. In addition to the DIY mode, the Zpad can be operated by a gateway and thus allowing for remote control. The Zpad has an integrators guide which is very comprehensive, and offers lots of configurations and notifications for those integrators needing a deep level of control but with a personal feel.

Brand

TLJ Access Control

Product Identifier

TLJ ZPAD

Product Line

Digital Keypads

OEM Version

HW: 01 FW: 01.28:03.30

Hardware Platform

ZGM130S037HGN2 / ZGM130S037HGN1

Z-Wave Version

7.16.3

Library Type

END_NODE_ENHANCED_232

Device Type

Lock DT

Role Type

ROLE_TYPE_SLAVE_SLEEPING_LISTENING

Manufacturer ID

0x0449

Product Type ID

0x0004

Product ID

0x0001

User Icon

0x0300

Installer Icon

0x0300

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Locks, Security Add-Ons, Security Systems

Countries / Regions

Algeria, Armenia, Bahrain, European Union, Cyprus, Moldova, Egypt, French Guiana, Georgia, Iraq, Jordan, Kazakhstan, Kuwait, Lebanon, Libya, Maldives, Mauritius, Nigeria, Oman, Philippines, Qatar, Saudi Arabia, South Africa, Turkmenistan, United Arab Emirates, ZU, Yemen

Supported Command Classes

S2 Classes

S2_ACCESS_CONTROL

Documents

Features

Association Groups

Configuration Parameters

Texts

ID	Description	Value
8	Where to find S2 DSK on product	DSK usually print on the main body
1	Classic Inclusion	Operating Mode 1 (Z-Wave) Enter Menu Mode (press and hold Enter key for 3 secs & enter the Master PIN). Then choose option 2 by pressing digit 2. The Zpad is now in inclusion/exclusion mode, please follow gateway guidance to include/exclude Zpad into network. Please note the Zpad will time out after 60 seconds if no gateway inclusion/exclusion requests are received. When a request is recieved the Zpad will sound an audible beep, and all LED's will being to flash, once complete the Zpad will exit inclusion/exclusion mode, returning to Menu mode. Press Return (bottom left key) to exit Meu mode. Operating Mode 2 (DIY) Enter Menu Mode (press and hold Enter key for 3 secs & enter the Master PIN). Then choose option 4 by pressing digit 4. The Zpad is now in inclusion/exclusion mode, please follow gateway guidance to include/exclude Zpad into network. Please note the Zpad will time out after 60 seconds if no gateway inclusion/exclusion requests are received. When a request is received the Zpad will sound an audible beep, and all LED's will being to flash, once complete the Zpad will exit inclusion/exclusion mode, returning to Menu mode. Press Return (bottom left key) to exit Meu mode.
2	Classic Exclusion	Operating Mode 1 (Z-Wave) Enter Menu Mode (press and hold Enter key for 3 secs & enter the Master PIN). Then choose option 2 by pressing digit 2. The Zpad is now in inclusion/exclusion mode, please follow gateway guidance to include/exclude Zpad into network. Please note the Zpad will time out after 60 seconds if no gateway inclusion/exclusion requests are received. When a request is recieved the Zpad will sound an audible beep, and all LED's will being to flash, once complete the Zpad will exit inclusion/exclusion mode, returning to Menu mode. Press Return (bottom left key) to exit Meu mode. Operating Mode 2 (DIY) Enter Menu Mode (press and hold Enter key for 3 secs & enter the Master PIN). Then choose option 4 by pressing digit 4. The Zpad is now in inclusion/exclusion mode, please follow gateway guidance to include/exclude Zpad into network. Please note the Zpad will time out after 60 seconds if no gateway inclusion/exclusion requests are received. When a request is received the Zpad will sound an audible beep, and all LED's will being to flash, once complete the Zpad will exit inclusion/exclusion mode, returning to Menu mode. Press Return (bottom left key) to exit Meu mode.
4	Wake-Up Procedure	Simply by touching the front main panel touch screen keypad, anywhere will wake-up the Zpad.
5	Factory Reset Procedure	Remove the Zpad from the wall, and locate the "SET" button on the backside. Press & Hold this button for the required duration to perform the factory reset A, B or C. Please note regarding reset type C - Please use this procedure only when the network primary controller is missing or otherwise inoperable.
6	Other Special Features	Pairing to TLJ door lock, wirelessly using BLE - see pages 6 & 7 of the user guide. This requires the 'Owner Card' which can be created using any RFID card and having access to the secure side of the door lock or metal over-ride key.

Supported Notification Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Is Flirs

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
