Product Recognition
Certification Number	ZC10-15120002
Name	ZRC-90CN

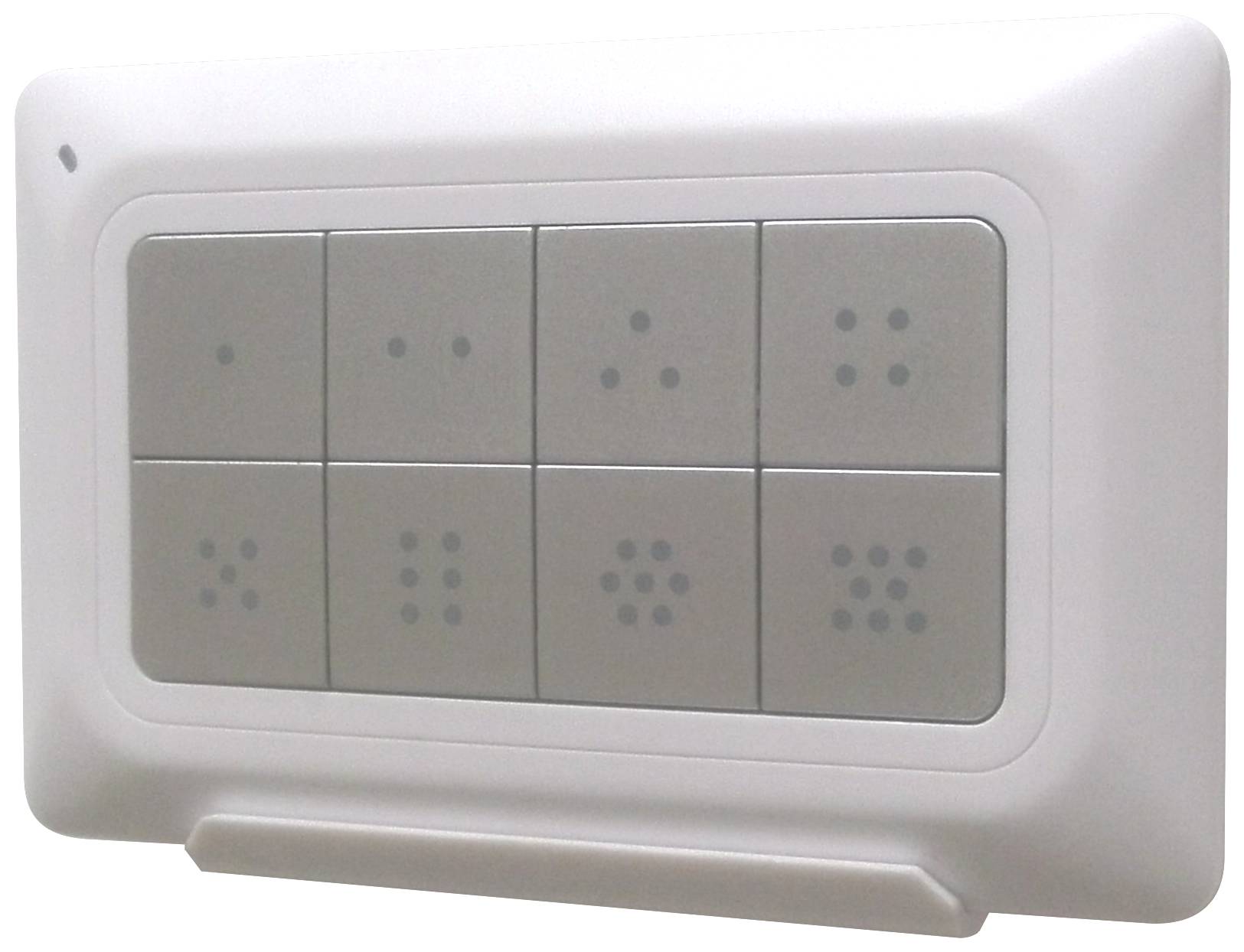

Short Description	The ZRC-90 Scene Master is a Z-Wave Central Scene Controller. When one of the buttons on the ZRC-90 is pushed, your Z-Wave central controller will receive a signal which it can use to trigger unlimited control possibilities. With 8 buttons, each supporting a long-press capability, you can control 16 different actions in your central controller.
Long Description	The ZRC-90 Scene Master is a Z-Wave Central Scene Controller. When one of the buttons on the ZRC-90 is pushed, your Z-Wave central controller will receive a signal which it can use to trigger unlimited control possibilities. With 8 buttons, each supporting a long-press capability, you can control 16 different actions in your central controller. The ZRC-90 is a great solution for triggering events more quickly than taking out your smart-phone and running a home control app. The Scene Master is ideal for kids, elderlies and guests who may not have full access to your smart home’s mobile application and hence may not have the rights to switch on various lighting, heating, air conditioning and other home appliance. With a convenient snap-in wall mount, the ZRC-90 can also be removed to keep it handy while you go about your home for the ultimate in simple convenience.
Brand	Remotec
Product Identifier	BW8510CN
OEM Version	03
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	CONTROLLER_PORTABLE
Device Type	Remote Control - Simple
Role Type	ROLE_TYPE_CONTROLLER_PORTABLE
Manufacturer ID	0x5254
Product Type ID	0x000B
Product ID	0x8510
Frequency Plans	CN: 868.40MHz
Categories	All Lighting Devices, Lighting Accessories
Countries / Regions	China
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_CENTRAL_SCENE Central Scene 0x5B 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 8510_UM_V1.01_F820-8510-0001_20151119.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline: Association Group-1 will be a default status report channel in ZWave+ lifeline requirement. Only one node can be assigned to this association group.
Texts	ID Description Value 3 Learn Mode (adding another controller) When prompted by your primary controller (gateway), click once on the “L” button. 4 Device Wake-Up Enter to the Listening mode (Wake up) by click once on “W” button. 5 Factory Reset Press and keep holding “R” button not less than 10 seconds. Release “R” button then triple click on “R” button within 2 seconds. 1 Inclusion Press “L+R” buttons simultaneously until LED light up to add the device into ZRC-90 Z-Wave network. 2 Exclusion Click once on the “R” button to remove the device from ZRC-90 Z-Wave network. 6 Additional Special Features Create a Primary Controller - Press “W+L” buttons simultaneously until LED light up. Create a Secondary Controller - Press “W+R” buttons simultaneously until LED light up. (Place the two controllers close to each other.)
Supports NWI	Yes
Supports Explorer Frames	Yes
