| Product Recognition | — |
|---|
| Certification Number | ZC08-10090006 |
|---|

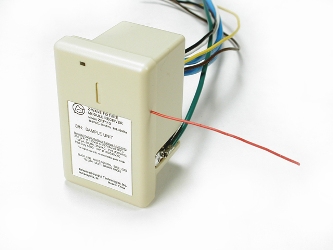

| Name | ZRF113 - Isolated Contact Fixture Module |
|---|
| Long Description | - The relay on this device is isolated from the power line, so it can be used to switch any load, including low voltage. This can be used in areas where an X10 universal module may have been used.
- The LED on the ZRF113 will turn on when the load attached is ON. The LED is user configured however to turn ON when the load attached is OFF, if so desired.
- The ZRF113 supports the AS101 and AS001 auxiliary switch.
- Max load 20 amps.
- Supports Z-Wave 40Kbps speed
- Signal (Frequency): 908.42 MHz |
|---|
| Brand | Advanced Control Technologies, Inc. |
|---|
| Product Identifier | ZRF113 |
|---|
| OEM Version | ZRF113 V5.1 |
|---|
| Hardware Platform | ZW0301 |
|---|
| Z-Wave Version | 4.51 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Not Z-Wave Plus |
|---|
| Manufacturer ID | 0x0001 |
|---|
| Product Type ID | 0x5246 |
|---|
| Product ID | 0x3133 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
| Countries / Regions | United States of America |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 |
|
|---|
| Documents | |
|---|
