Product Recognition | |
|---|
Certification Number | ZC10-18036065 |
|---|
Name | ZWS12 |
|---|

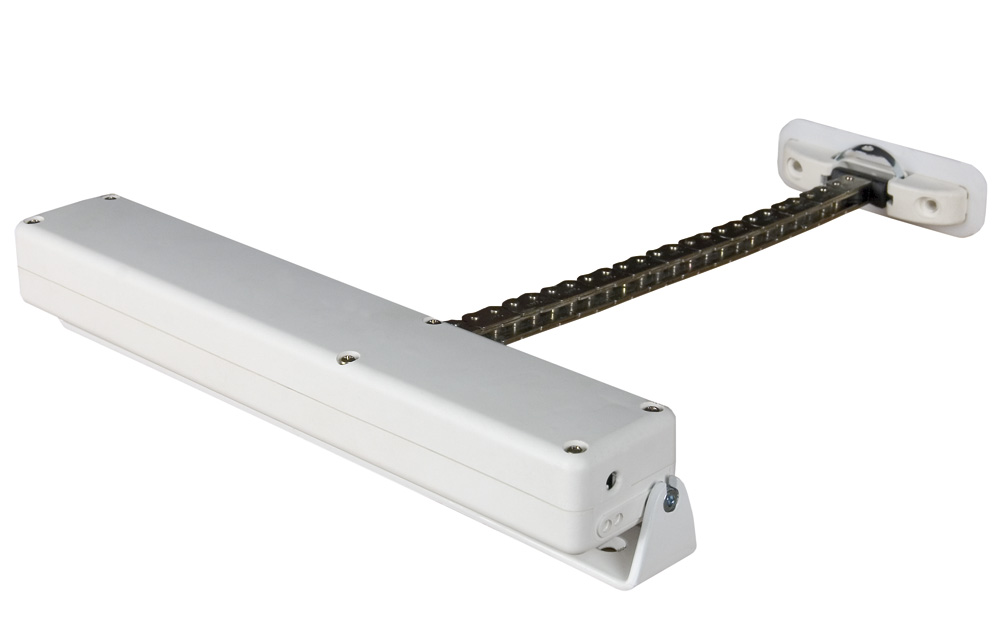

Short Description | FAKRO ZWS12 chain actuator is fully compatible white Z-Wave Plus protocol. Is dedicated for roof window operating. The maximum chain reach is 24cm. Motor is equipped with encoder and secure transmission. |
|---|
Long Description | FAKRO ZWS12 chain motor thanks to their small dimensions and suitable force output are ideal for roof window operating, being fully compatible with the Z-Wave Plus system. The motors can be applied in both centre pivot and top hung and pivot roof windows as well as windows of non-standard dimensions.
The chain has 2 output speed and reach 24cm.
The ZWS12 motor is equipped with encoder and two limit switches:
limit switch at maximum chain travel position,
overload limit in both directions (used mainly when closing the window).
This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers.
ZWS12 also can be controlled manually by button and closed by rain sensor and timer.
There are four association groups in actuator ZWS12:
Life Line – group for position reporting actuator after each a stoppage and alarm reporting
Basic Repeat – group used to transfer the received basic commands to the devices included in this group.
Multilevel Repeat – group used to transfer the received multilevel commands to the devices included in this group.
Basic Rain – group used to transfer the received commands from actuator & rain detector to the devices included in this group.
Z-Wave Plus Secure Enabled Product
This device is a security enabled Z-Wave Plus product that is able to use encrypted Z-Wave Plus messages to communicate to other security enabled Z-Wave Plus products.
Technical Parameters:
Chain reach: 240 mm
Output power : 9 W
Rated current: 0.72 A
Standby current: 0.03 A
Chain pushing force: 250 N
Closing force: 200 N
Current limit: YES
Power voltage: 15V DC
Power cable: 2 x 0.75 mm2 (0,4 m) |
|---|
Brand | FAKRO |
|---|
Product Identifier | ZWS12 RU |
|---|
OEM Version | HW: 25 FW: 1.01:01.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.61.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Window Covering - Pos/End Aware |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0085 |
|---|
Product Type ID | 0x0002 |
|---|
Product ID | 0x0011 |
|---|
User Icon | 0x1A00 |
|---|
Installer Icon | 0x1A00 |
|---|
Frequency Plans | RU: 869.00MHz |
|---|
Categories | Window Covering |
|---|
Countries / Regions | Russian Federation |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_NODE_NAMING | Node Naming | 0x77 | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_NOTIFICATION_V3 | Notification V3 | 0x71 | 3 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SWITCH_MULTILEVEL_V3 | Switch Multilevel V3 | 0x26 | 3 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V3 | Switch Multilevel V3 | 0x26 | 3 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Window Covering Control Features | Value |
|---|
Position Aware | Manual Calibration | Supports Up/Down Motion |
| Color | | Sensors | | Switch Type | Value |
|---|
Push Button with Indicator |
| Supported Notification Types | Value |
|---|
Water Alarm | Power Management |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | Basic Repeat – group used to transfer the received basic commands to the devices included in this group. This group can be a
maximum 5 devices. | 3 | 5 | 0 | Multilevel Repeat – group used to transfer the received multilevel commands to the devices included in this group. This
group can be a maximum 5 devices. | 4 | 5 | 0 | Basic Rain – group used to transfer the received commands from actuator & rain detector to the devices included in this
group. This group can be a maximum 5 devices. | 1 | 1 | 0 | Life Line – group for position reporting actuator after each a stoppage and alarm reporting (overcurrent, damage encoders).
This group can be a maximum 1 device. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
7 | Motor speed I | This parameter change motor speed | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
1 | 4 | 1- the lowest speed, 4 - the higest speed, 2- default |
| 8 | Motor speed II (rain sensor) | This parameter change motor speed when rain sensor turned on servomotor | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
1 | 4 | 1- the lowest speed, 4 - the higest speed, 2- default |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Autoinclusion - This feature allow you to add hard to reach devices to Z-Wave network. 3-times ON and OFF the power actuator (OFF-ON-OFFON-OFF-ON) causes the introduction of actuator to Autoinclusion mode.
Please note that the procedure has been started the time between on and off can not exceed 20s. Autoinclusion mode is activated for a maximum of 10 minutes. During this time, we can add an actuator to any Z-Wave controller running in the Include procedure.
Include - This function allow you to add actuator to the network Z-Wave.
Follow the procedure adding device to the network Z-Wave according to user manual supplied with the product. Then, press the programming button P on the actuator for 1 second. | 2 | Exclusion | Exclude - This function allow you to remove actuator from the network Z-Wave. Follow the procedure removing device from the network Z-Wave
according to user manual supplied with the product. Then, press the
programming button P on the actuator for 1 second. Function removes
information only about network Z-Wave. | 5 | Factory Reset | Device Reset Locally – This function allows you to reset the Z-Wave
network without the use of Z-Wave controller. Press 5 times the
programming button P fast, the actuator was removed from the Z-Wave
network, restore the default parameters, name and locations.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 6 | Additional Special Features | Autoinclusion - This feature allow you to add hard to reach devices to Z-Wave network. 3-times ON and OFF the power actuator (OFF-ON-OFFON-OFF-ON) causes the introduction of actuator to Autoinclusion mode. Please note that the procedure has been started the time between on and off can not exceed 20s. Autoinclusion mode is activated for a maximum of 10 minutes. During this time, we can add an actuator to any Z-Wave controller running in the Include procedure. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Water Alarm | (Refer to parameters): State idle | Power Management | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Rain rate |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
