Certification Number | ZC12-24030352 |
|---|
Name | 10 Button Z-Wave Plus v2 Deadbolt |
|---|
Short Description | For enhanced security, a MasterCode may be used in order to protect local user code maintenance, as well as other configuration settings. |
|---|
Long Description | A Z-Wave Plus® enabled deadbolt from Kwikset, offering the latest S2 security and SmartStart functionality. Has a 10-Digit keypad with one-touch locking, tapered deadbolt designed to assist with misaligned doors, and features the SmartKey Re-Key technology with BumpGuard protection. |
|---|
Brand | Kwikset |
|---|
Product Identifier | 893 |
|---|
Product Line | Connected Deadbolt Door Lock |
|---|
OEM Version | HW: 1 FW: 7.13:69.30 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.20.2 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Lock |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0090 |
|---|
Product Type ID | 0x0811 |
|---|
Product ID | 0x13A8 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America, Canada |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DOOR_LOCK_V4 | Door Lock V4 | | 0 | COMMAND_CLASS_USER_CODE_V2 | User Code V2 | | 0 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ANTITHEFT_V2 | Anti-theft V2 | 0x5D | 2 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_DOOR_LOCK_LOGGING | Door Lock Logging | 0x4C | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 | Schedule Entry Lock V3 | 0x4E | 3 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|

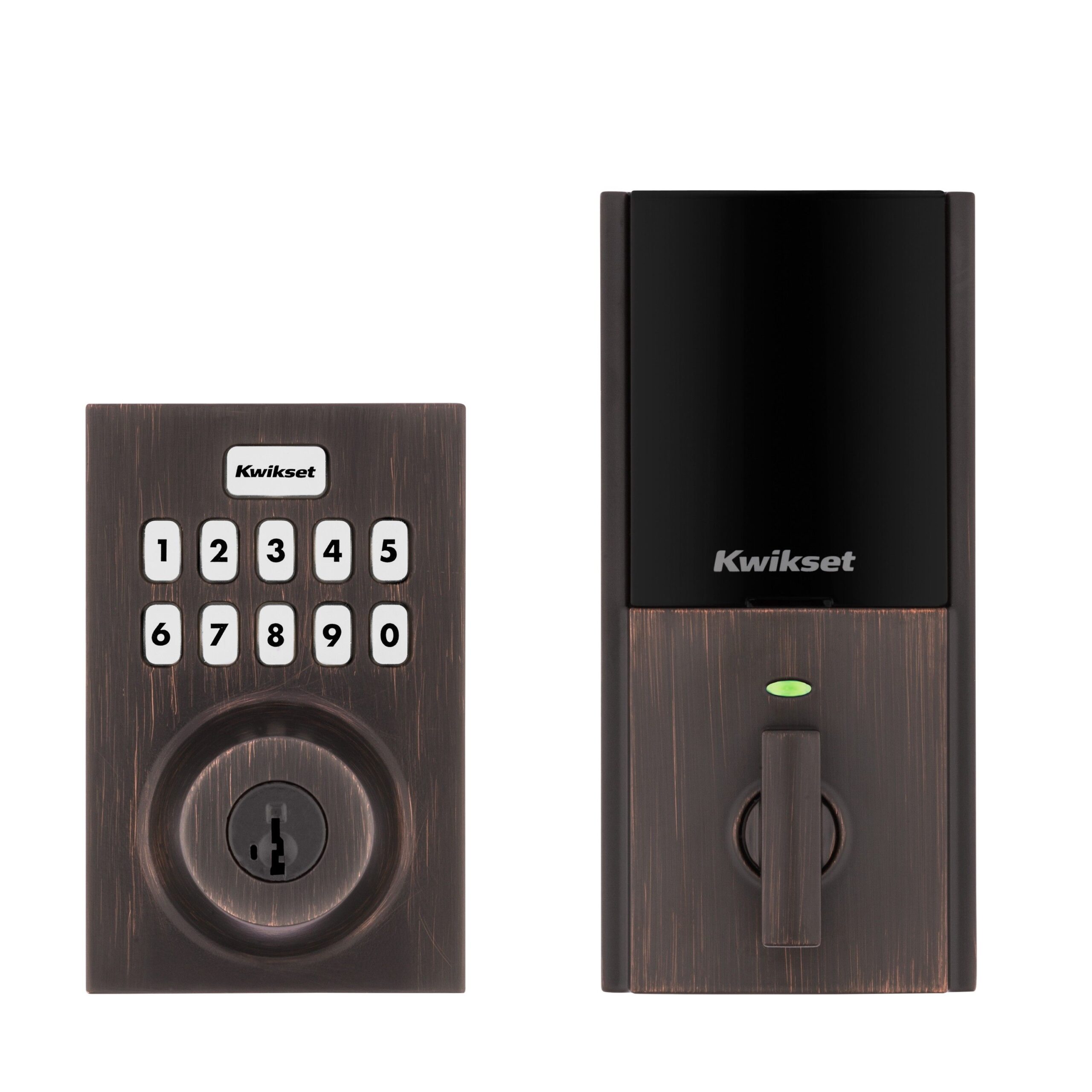

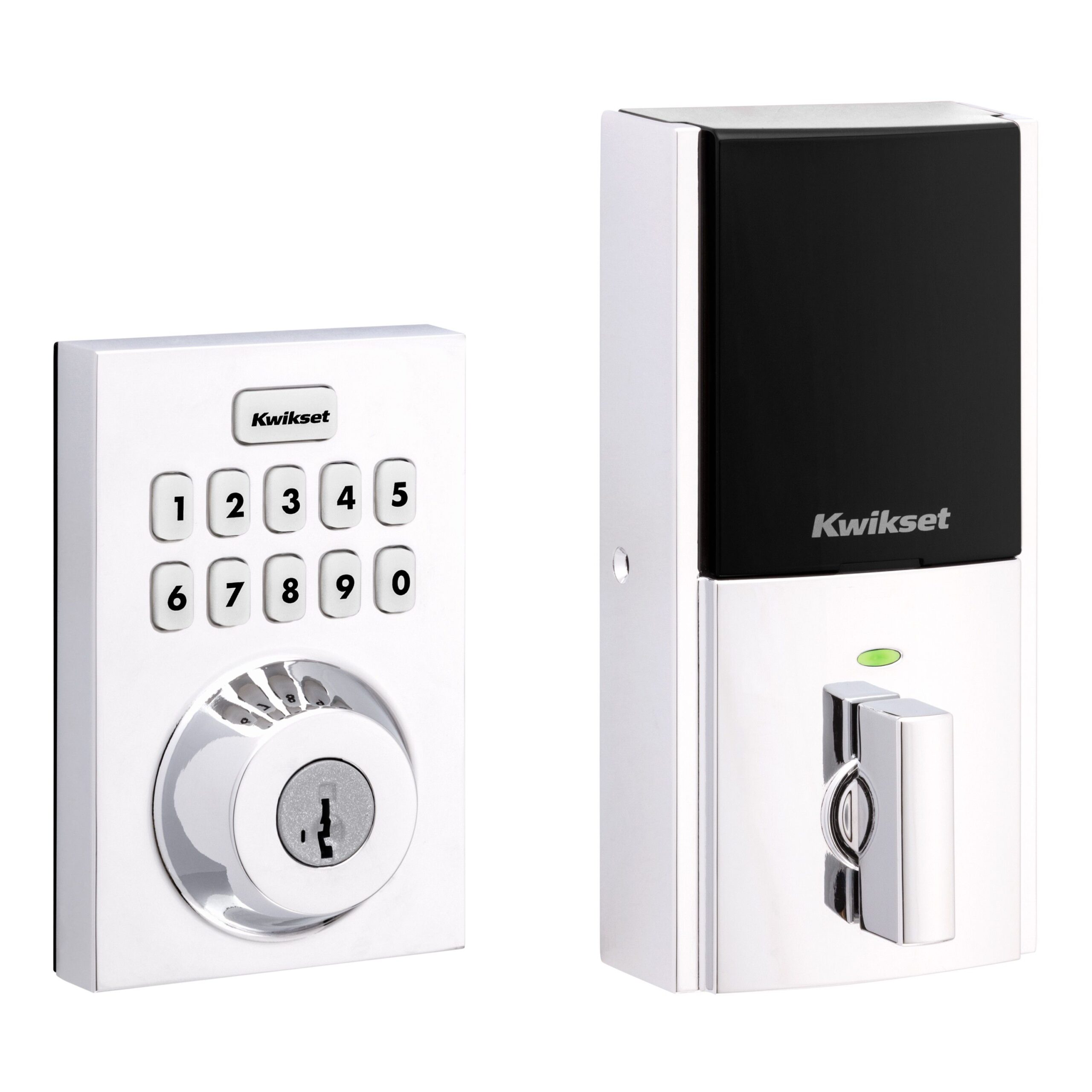

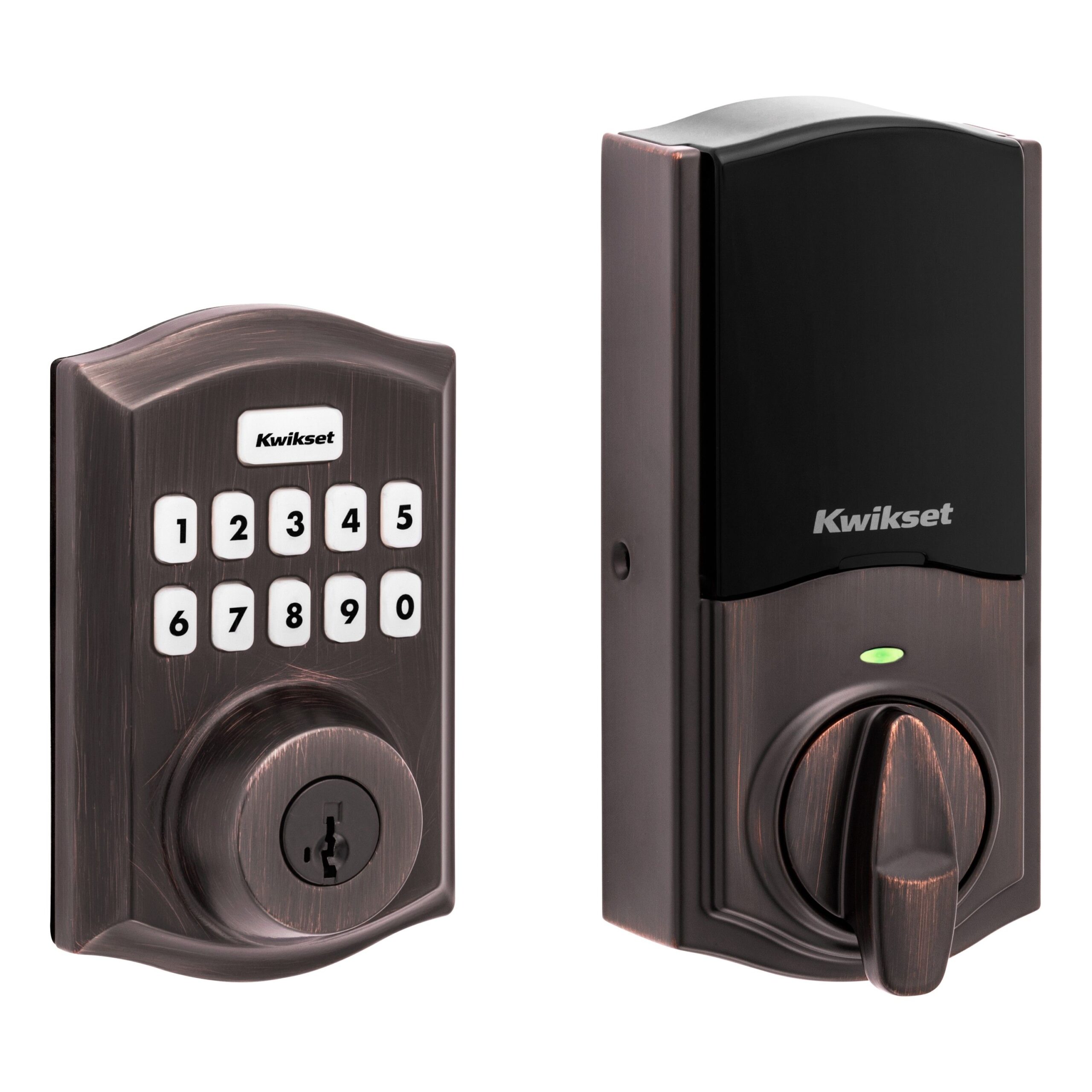

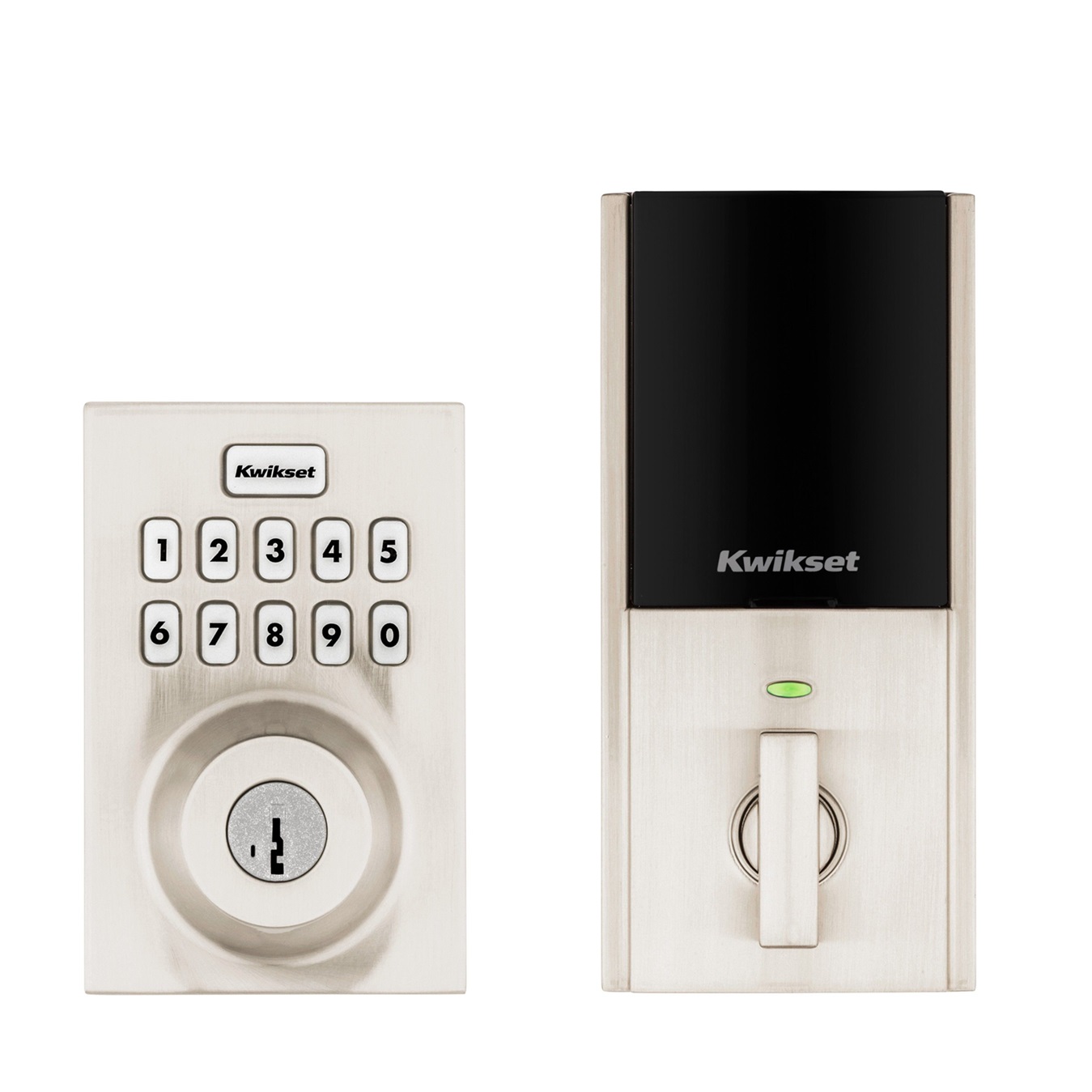

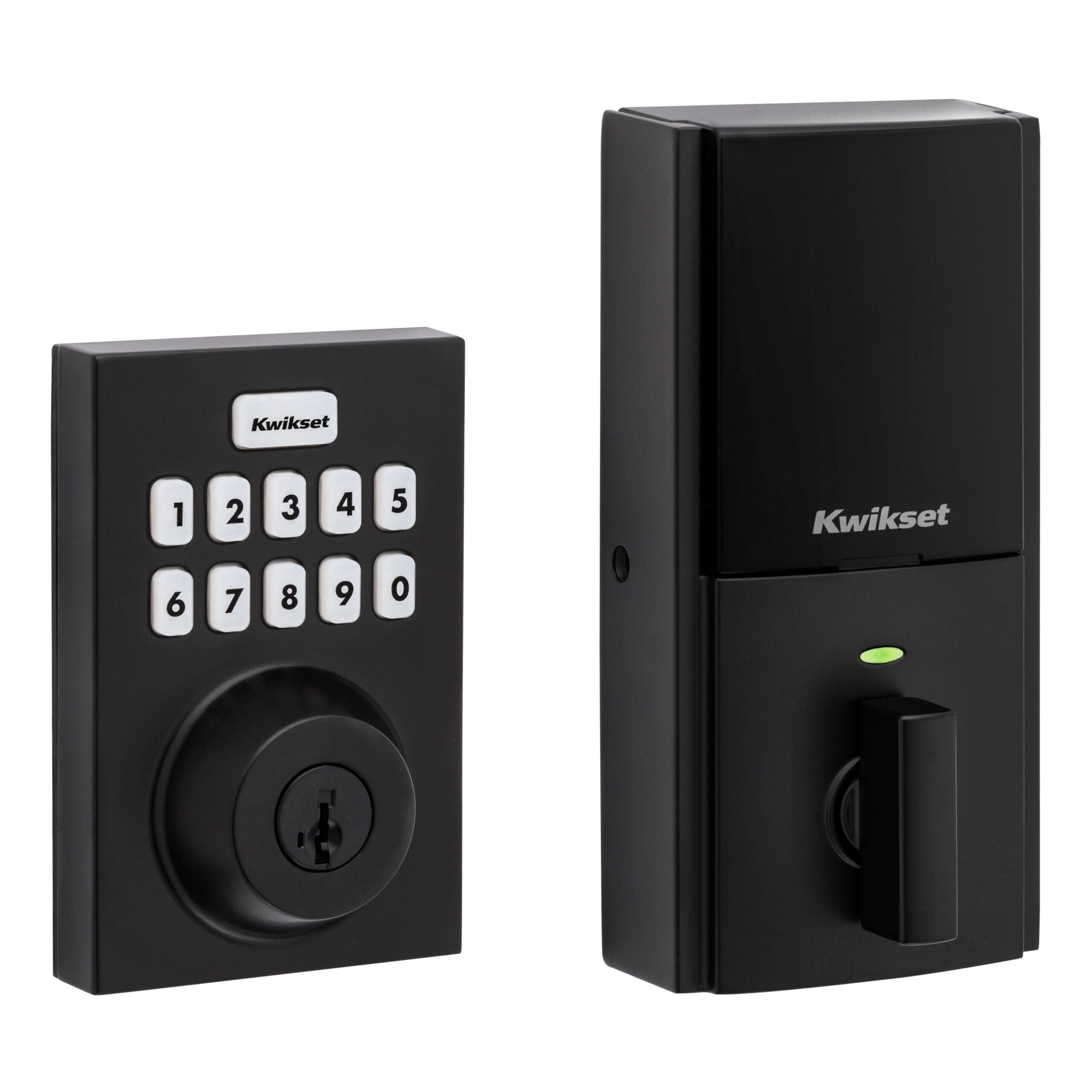

Image_Product_Supplemental_3 | HC-620, Traditional, Satin Nickel | | Image_Product_Supplemental_4 | HC-620, Contemporary, Matte Black | | Image_Product_Supplemental_5 | HC-620, Contemporary, Polished Chrome | | Manual_Primary_Lang | Product Manual | | Manual_English | Product Manual in English | | Manual_Other_Lang_1 | Product Manual Spanish | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Door Lock Type | | Firmware Updatable | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | The lock will support the Lifeline association group. It supports sending messages to a maximum of 5 nodes. These messages provide information on changes that occur locally. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values | Read-only |
|---|
1 | Status LED Control | The configuration parameter 1 is a read/write parameter with a one-byte field, used to control the status LED. If set
to on, the status LED will show the status of the latch every 6 seconds. If set to off, the status LED will not be
shown. | 2 | 1 | 0 | 1 | 1 |
Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98
From | To | Description |
|---|
0 | 0 | Turns Status LED off | 1 | 1 | Turns Status LED on |
| | 2 | Sound Control | The configuration parameter 2 is a read/write parameter with a one-byte field, used to control the lock’s buzzer. If
set to on, the buzzer is enabled and will sound during normal events. If set to off, the buzzer is disabled, and the
buzzer sound will not occur. | 2 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Turns the sound (buzzer) off | 1 | 1 | Turns the sound (buzzer) on |
| | 3 | User Program Button Control | The configuration parameter 3 is a read/write parameter with a one-byte field, used to control the user program
button. If set to on, the program button is available for user code maintenance. If set to off, the program button is
not available for user code maintenance. | 2 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Disables the program button | 1 | 1 | Enables the program button |
| | 4 | Secure Screen Control | The configuration parameter 4 is a read/write parameter with a one-byte field, used to control the secure screen
functionality on touch locks only. This parameter is not used on non-touch locks and will be ignored. If set to
enabled, the touch screen will display the secure screen functionality when woken. If set to disabled, the touch
screen will not display the secure screen functionality when woken. | 2 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Disables secure screen (Touch products only) | 1 | 1 | Enables secure screen (Touch products only) |
| | 10 | Handing Control | The configuration parameter 10 is a read/write parameter with a one-byte field. When this parameter is read, it will
return the handing of the lock. When this parameter is written, it will run a handing operation. When written with a
value of 0x01, it will cause the lock to cycle through locking and unlocking until it determines the correct handing.
It is suggested that this operation occur while the door is opened so that no obstructions will be in the way for the
operation. After the completion of the handing process, a Configuration Report message will be sent back to the
requestor. It will contain a non-zero value for success or a zero value for failure. | 2 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 0 | Unknown latch position (get/read from lock) | 0 | 1 | Initiate the handing process (set/write to lock) | 1 | 0 | Right handed lock (get/write to lock) | 2 | 0 | Left handed lock (get/write to lock) |
| | 46 | Motor Load Value | The configuration parameter 46 is a read only parameter with a four-byte field. It is used to retrieve the calculated
sideload value from the last motor run that was performed. This value is used to represent the amount of power
needed to run the motor, giving the opportunity to see if any resistance was encountered based on the value read
from a free running motor with no resistance. | 2 | 4 | 0 | 16777215 | 0 | From | To | Description |
|---|
0 | 16777215 | Provides an insight into the amount of resistance encountered by motor |
| Yes |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The SmartStart label and QR code can be found on the interior cover of the lock. It is located by the battery compartment and is accessible by sliding up and removing the window on the interior of the lock. | 1 | Classic Inclusion | For classic inclusion, initiate the process to add the lock to your system at your smart home controller. When prompted by your smart home system to add the lock, press button 'A' on the lock interior one time. The red LED will illuminate when the lock enters inclusion mode. If successful, re-name the lock in your system. If unsuccessful, follow your system's instruction to remove the lock from the network, press button 'A' one time to remove, and then repeat the process. | 2 | Classic Exclusion | Follow your smart home system's instructions to remove the lock from the network. When prompted by the system, press button 'A' on the lock interior once. | 4 | Wake-Up Procedure | A wake-up procedure is not necessary. The lock is a always listening sleeping device. | 5 | Factory Reset Procedure | NOTICE: A factory reset will delete all user codes associated with the lock as well as removing it from your smart home system.
1. Remove the battery pack
2. Press and HOLD the program button while reinserting the battery pack.
3. Continue to hold the button for 30 seconds until the lock beeps and the status LED flashes red.
4. Press the program button once more. The LEDs will cycle flashing between red and green while the reset process is being performed.
5. When complete, the lock will reset and initiate the door handing process. | 6 | Other Special Features | For enhanced security, a MasterCode may be used in order to protect local user code maintenance, as well as other configuration settings. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | Manual lock operation | Access Control | Manual unlock operation | Access Control | RF lock operation | Access Control | RF unlock operation | Access Control | Keypad lock operation | Access Control | Keypad unlock operation | Access Control | Auto lock locked operation | Access Control | Auto lock not fully locked operation | Access Control | Lock state: Lock jammed | Access Control | Single user code deleted | Access Control | New user code added | Access Control | New user code not added due to duplicate code | Access Control | Keypad state: Keypad temporary disabled | Access Control | New program code entered : unique code for lock configuration | Access Control | Manually enter user access code exceeds code limit | Access Control | Messaging User Code entered via keypad | Home Security | Cover status: Tampering, product cover removed | Home Security | Tampering, invalid code | Power Management | Battery maintenance status: Replace battery soon | Power Management | Battery maintenance status: Replace battery now |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
