Product Recognition

Certification Number

ZC14-25060524

Name

Alloy Fusion (gen3)

Short Description

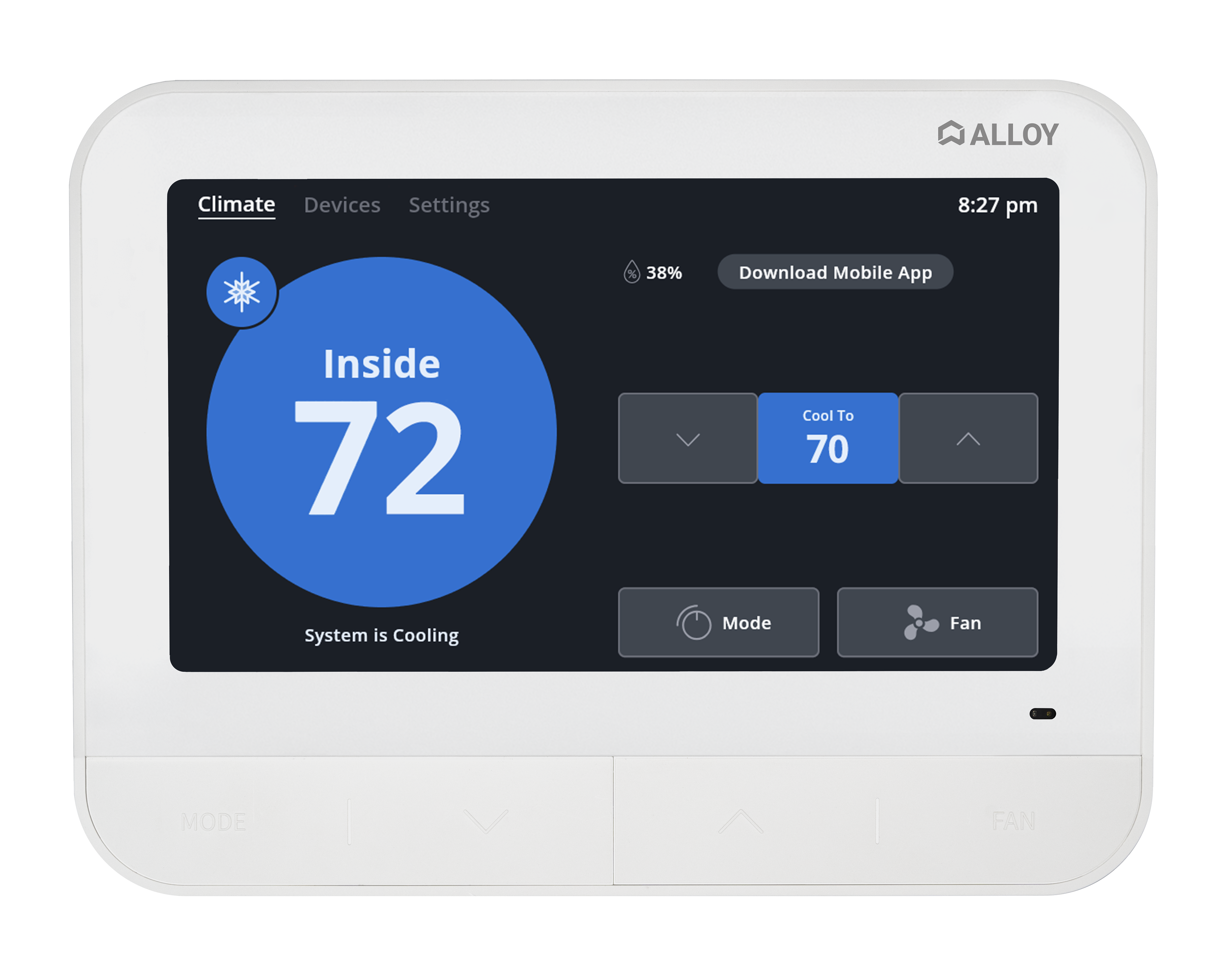

The Alloy Fusion is our next-generation Hub & Thermostat combo device. Fusion features an integrated touch screen that allows users to control their home HVAC & Z-Wave smart home devices in one interface.

Description

Next-Generation Fusion Hub Features: -Cellular, WiFi & Ethernet Available -7" Touchscreen -Z-Wave 800 with Long Rage Support -Supports most Conventional & Heat Pump type HVAC Systems -24VAC Common Wire

Brand

Alloy SmartHome

Identifier

af3.zw8us.mw.4G

Product Line

Alloy Hubs

OEM Version

HW: 01 FW: 07.19:07.18

Hardware Platform

EFR32ZG23B

Z-Wave Version

7.19.4

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway DT

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0390

Product Type ID

0x0001

Product ID

0x0004

User Icon

0x0500

Installer Icon

0x0500

Radio Range Z-Wave (m)

Radio Range Z-Wave LR (m)

400

Frequency Plans

US: 916.00MHz, 908.40MHz, US_LR: 912.00MHz, 920.00MHz

Categories

Gateway Controller

Countries / Regions

Canada, United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_ACCESS_CONTROL, S2_AUTHENTICATED, S2_UNAUTHENTICATED

Documents

Features

Association Groups

Texts

ID	Description	Value
23	Controller Classic Inclusion	To add a device that is not yet part of a Z-Wave network, press the Add a device button and put a device into "add mode" (follow the instructions in the documentation that came with the device)
24	Controller Classic Exclusion	When the Devices tab is selected, a Remove a device button is displayed under the list of already added devices. To remove a device from the Z-Wave network controlled by the Hub, press the button.
11	Controller SmartStart Inclusion	A device is provisioned first clicking on the "Add provisioning" button and then editing the details of its provisioning. This is done by entering its 40-digit secure device key (SDK), accompanied by a meaningful name. Note that the SDK is composed of eight 5-digit numbers separated by dashes. If the device supports long-range, you can request that it be paired as a long-range device. Make sure the device supports it if you check the box. When done, press on the "Set" button.
25	Controller Provisioning List	SmartStart Provisioning list can be managed from the SmartStart tab in main navigation menu.
5	Factory Reset Procedure	To reset the Alloy Fusion Hub to its factory settings, you will first need to remove all devices. A factory reset button will then become visible. Pressing the Factory reset button will immediately reset the Hub without prompts. The Hub will reboot.
10	Controller Replication	The Alloy Fusion Hub is a Z-Wave static central controller. It is responsible for managing a network of Z-Wave-compliant devices from a fixed location. It typically acts as the "primary" controller for the network, meaning that it is responsible for the addition (inclusion) and removal (exclusion) of devices from the network. Only primary controllers can add or remove devices. A controller maintains "routing tables" and uses them to reach the devices in its network. The Hub adds a controller (from any manufacturer) to its network the same way it adds any new device. The routing tables on the Alloy Fusion Hub are automatically replicated to the newly added, secondary, controller.

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes
