Product Recognition | |
|---|
Certification Number | ZC10-18036066 |
|---|
Name | AMZ Solar |
|---|

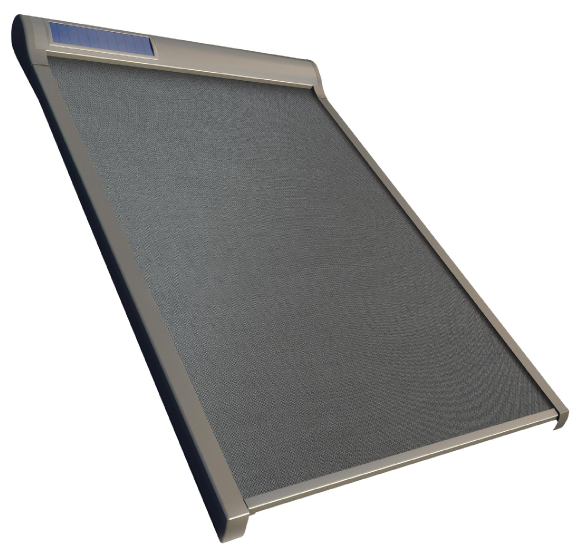

Short Description | FAKRO AMZ Solar is the external awning blind, fully compatible with the Z-Wave Plus protocol. It is dedicated for FAKRO roof windows. The awning blind is powered by solar panel. |
|---|
Long Description | FAKRO AMZ Solar awning blind is a perfect combination of comfort of use and effective protection from heat. Due to the fact that the awning blind absorbs solar radiation before it reaches the glazing and emits the heat to the outside of the room, it constitutes much better protectction from tiresome heat in the sunny days than internal accessories. At the same time, it allows the ingress of natural light and ensures visual contact with the environment.
FAKRO AMZ Solar is equipped with the algorithm which allows to operate the awning blind depending on the insolation level. It is also equipped with the Z-Wave remote control. In an emergency, the awning blind can be controlled by a service button located on the awning blind. The solar awning blind is powered by 12VDC battery pack built-in in the blind’s cases powered by the solar panel.
The AMZ Solar awning blind has three protections:
- Maximum extension (encoder maximum position)
- Completely rolled up (encoder minimum position)
- Current limiting protecting the awning blind against damage and user against accidental injury resulting from the contact with moving elements of the awning blind.
There are four association groups in FAKRO AMZ Solar awning blind:
1. Life Line – group for reporting a position of the awning blind after each stoppage and alarm reporting (overcurrent, damage encoders). A maximum 1 device can be in this group.
2. Basic Repeat – group used to transfer received basic commands to devices included in this group. A maximum 5 devices can be in this group.
3. Multilevel Repeat – group used to transfer received multilevel commands to devices included in this group. A maximum 5 devices can be in this group.
4. Basic Control – group used to transfer received commands from the AMZ Solar (A, S mode) to devices included in this group. A maximum 5 devices can be in this group.
Technical Parameters:
Power voltage: 12V DC
Rated current: 1,4 A
Current limit: YES
Speed: 23 r.p.m
Temperature of usage: (-10 deg C) do (65 deg C)
Supplying cable: 2 x 0,75 mm2 |
|---|
Brand | FAKRO |
|---|
Product Identifier | AMZ Solar AU |
|---|
OEM Version | HW: 31 FW: 1.01:01.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.61.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Window Covering - Pos/End Aware |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0085 |
|---|
Product Type ID | 0x0005 |
|---|
Product ID | 0x0012 |
|---|
User Icon | 0x1A00 |
|---|
Installer Icon | 0x1A00 |
|---|
Frequency Plans | ANZ: 919.80MHz, 921.40MHz |
|---|
Categories | Window Covering |
|---|
Countries / Regions | Australia |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_NODE_NAMING | Node Naming | 0x77 | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_ALARM_V2 | Alarm V2 | 0x71 | 2 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_NOTIFICATION_V3 | Notification V3 | 0x71 | 3 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SWITCH_MULTILEVEL_V3 | Switch Multilevel V3 | 0x26 | 3 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V3 | Switch Multilevel V3 | 0x26 | 3 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | Value |
|---|
Power Management | System |
| Window Covering Control Features | Value |
|---|
Endpoint Aware | Position Aware | Manual Calibration | Supports Up/Down Motion |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | Basic Repeat – group used to transfer the received basic commands to the devices included in this group. | 1 | 1 | 0 | Z-Wave Plus Lifeline - group for position reporting awning blind after each a stoppage and alarm reporting (overcurrent, damage encoders) | 3 | 5 | 0 | Multilevel Repeat – group used to transfer the received multilevel commands to the devices included in this group. | 4 | 5 | 0 | Basic Control – group used to transfer the received commands from AMZ Solar (A, S mode) to the devices included in this group. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values | Flag Advanced |
|---|
2 | Season select | Season of using awning blind 1 – summer 2 – winter | 0 | 1 | 1 | 2 | 1 |
Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98
From | To | Description |
|---|
1 | 2 | 1 – summer, 2 – winter |
| | 4 | Sensitivity | Level of sun sensitivity at which the awning blind will open or close. | 0 | 1 | 3 | 100 | 60 | From | To | Description |
|---|
3 | 100 | 3 to 100 procent |
| | 1 | Mode Control | The awning blind mode operate: 0 – manual - control with the use of the remote control 1 – semiautomatic - automatic closing and with the use of the remote control 2 – automatic -automatic opening and closing and with the use of the remote control | 0 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 2 | 0 - manual, 1 – semiautomatic, 2 – automatic |
| Yes |
|
|---|
Texts | ID | Description | Value |
|---|
6 | Additional Special Features | Parameter Reset Locally – Press fast 3 times P button on the Awning Blind. Function removes information about parameters. | 1 | Inclusion | Include - This function allow you to add awning blind to the network Z-Wave. Follow the procedur adding device to the network Z-Wave according to user manual supplied with the product. Then, press the programming button P on the awning blind for 1 second.
Autoinclusion - This feature allow you to add hard to reach devices to Z-Wave network. 3-times ON and OFF the power awning blind (OFF-ON-OFF-ON-OFF-ON) causes the introduction of awning blind to Autoinclusion mode. Please note that the procedure has been started the time between on and off can not exceed 20s. Autoinclusion mode is activated for a maximum of 10 minutes. During this time, we can add an awning to any Z-Wave controller running in the Include procedure. | 2 | Exclusion | Exclude - This function allow you to remove awning blind from the network Z-Wave. Follow the procedur removing device from the network Z-Wave according to user manual supplied with the product. Then, press the programming button P on the awning blind for 1 second. Function removes information only about newtork Z-Wave. | 5 | Factory Reset | Device Reset Locally – This function allows you to reset the Z-Wave network without the use of Z-Wave controller. Press 5 times the programming button P fast, the awning blind was removed from the Z-Wave network, restore the default parameters, name and locations.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | (Refer to parameters): State idle | System | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
