Product Recognition
Certification Number	ZC10-17035500

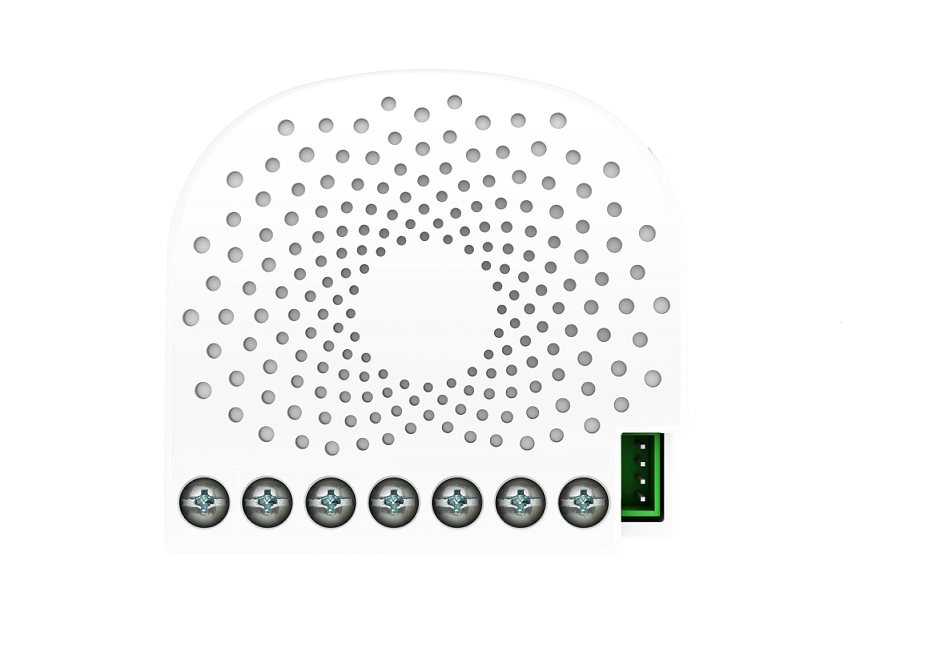

Name	Dual In-Wall Switch
Short Description	Oomi Dual In-Wall Switch is a Z-Wave Smart Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches also provides energy metering.
Long Description	Oomi Dual In-Wall Switch is a Z-Wave Smart Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. It can connect to 2 external manual switches to control the load ON/OFF independently. Its surface has a pin socket, which can be used for connecting to the touch panel, so you can also use the touch panel to control the Dual Nano Switch. The Dual In-Wall Switch is also a security Z-Wave device and supports Over The Air (OTA) feature for the products firmware upgrade.
Brand	Oomi
Product Identifier	FT132-B
OEM Version	HW: 132 FW: 1.01:01.00
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x016A
Product Type ID	0x0203
Product ID	0x0084
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	ANZ: 919.80MHz, 921.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	Australia
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Oomi Dual In-Wall Switch manual.pdf
Features	Feature Values Supported Meter Type Value Electric Energy Switch Type Value Toggle Firmware Updatable Value Updatable by Consumer by RF Z-Wave Scene Type Value Scene Electric Load Type Value Incandescent Fluorescent MLV (Magnetic) ELV (Electronic) LED Dimmable LED Inductive (e.g. Motor)
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline. When the load state of Dual Nano Switch (turn on/off the load) is changed, the Hail CC and Basic Report (configured by parameter 80) can be sent to the associated nodes in this group. 2 5 0 Forward the Basic Set, Switch All, Scene Activation Set to associated nodes in Group 2 when the Dual Nano Switch receives the Basic Set, Switch All, Scene Activation Set commands from main controller. (E.g. Send/forward Basic Set to control the other nodes in association Group 2) 3 5 0 Send Basic Set (configured by parameter 0x51 ) to the associated nodes in Group 3 when the external switch S1 is operated. Note: The Switch Mode of external switch S1 should be identified successfully, which means that the value of Configuration parameter 0x78 should be non-zero, then the Basic Set can be sent to the associated nodes in Group 3 via triggering the S1 switch. 4 5 0 Send Basic Set (configured by parameter 0x52) to the associated nodes in Group 4 when the external switch S2 is operated. Note: The Switch Mode of external switch S2 should be identified successfully, which means that the value of Configuration parameter 0x79 should be non-zero, then the Basic Set can be sent to the associated nodes in Group 3 via triggering the S2 switch.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 82 To set which notification would be sent to the associated nodes in association group 4 To set which notification would be sent to the associated nodes in association Group 4 when using the external switch 2 to switch the loads. 0 1 0 0 1 From To Description 0 0 Send Nothing 1 1 Send Basic Set CC 83 Configure the state of LED when it is in 3 modes Configure the state of LED when it is in 3 modes (Energy mode, Momentary indicate mode, Night light mode) 0 1 0 0 0 From To Description 0 0 Energy mode. The LED will follow the status (on/off). 2 2 Night light mode. The LED will remain ON state. 1 1 Momentary indicate mode. When the state of Switch’s load changed, the LED will follow the status (on/off) of its load, but the LED will turn off after 5 seconds if there is no any switch action. 84 Set the ON/OFF time of the LED when it is in Night light mode. Set the ON/OFF time of the LED when it is in Night light mode. 0 4 0 0 301991936 From To Description 0 60 The minute time of OFF 256 316 The hour time of OFF 65536 65596 The minute time of ON 16777216 16777276 The hour time of ON 86 Set appointment 1 Set the ON time of output load. 0 4 0 0 8327680 From To Description 256 316 The hour value of ON time 16777215 16777215 Disable the setting. 0 60 The minute value of ON time 65536 65543 The day value (Mon to Sun) 16777216 16777216 Enable the setting. 87 Set appointment 2 Set the OFF time of output load. 0 4 0 0 8327680 From To Description 256 316 The hour value of ON time 65536 65543 The day value (Mon to Sun) 16777215 16777215 Disable the setting. 0 60 The minute value of ON time 16777216 16777216 Enable the setting. 90 Enables/disables parameter 91 and 92 below: Enables/disables the function of parameter 91 and 92. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 91 Set the threshold value of wattage. Threshold change in wattage (in terms of wattage) to induce an automatic report. 0 2 0 0 25 From To Description 0 60000 The thershold value range is 0 to 60000 92 Set the threshold value of wattage. Threshold change in wattage (in terms of percentage) to induce an automatic report. 0 1 0 0 5 From To Description 0 100 The thershold value range is 0 to 100 100 Set parameter 101-103 to default value. Set parameter 101-103 to default value. 0 1 0 0 0 From To Description 0 0 Reset the parameter 101-103 101 To set which reports need to be sent in Report group 1. To set which reports need to be sent in Report group 1. 0 4 0 0 0 From To Description 4 4 Send Meter Report of voltage (V) 2 2 Send Meter Report of wattage (W) 2048 2048 Send Multi Channel Meter Report of energy (kWh) on Channel 1 512 512 Send Multi Channel Meter Report of wattage (W) on Channel 2 1048576 1048576 Send Multi Channel Meter Report of current (A) on Channel 2 524288 524288 Send Multi Channel Meter Report of current (A) on Channel 1 8 8 Send Meter Report of current (A) 131072 131072 Send Multi Channel Meter Report of voltage (V) on Channel 2 1 1 Send Meter Report of energy (kWh) 256 256 Send Multi Channel Meter Report of wattage (W) on Channel 1 4096 4096 Send Multi Channel Meter Report of energy (kWh) on Channel 2 65536 65536 Send Multi Channel Meter Report of voltage (V) on Channel 1 102 To set which reports need to be sent in Report group 2. To set which reports need to be sent in Report group 2. 0 4 0 0 0 From To Description 1 1 Send Meter Report of energy (kWh) 2 2 Send Meter Report of wattage (W) 4 4 Send Meter Report of voltage (V) 8 8 Send Meter Report of current (A) 256 256 Send Multi Channel Meter Report of wattage (W) on Channel 1 512 512 Send Multi Channel Meter Report of wattage (W) on Channel 2 2048 2048 Send Multi Channel Meter Report of energy (kWh) on Channel 1 4096 4096 Send Multi Channel Meter Report of energy (kWh) on Channel 2 65536 65536 Send Multi Channel Meter Report of voltage (V) on Channel 1 131072 131072 Send Multi Channel Meter Report of voltage (V) on Channel 2 524288 524288 Send Multi Channel Meter Report of current (A) on Channel 1 1048576 1048576 Send Multi Channel Meter Report of current (A) on Channel 2 103 To set which reports need to be sent in Report group 3. To set which reports need to be sent in Report group 3. 0 4 0 0 0 From To Description 1 1 Send Meter Report of voltage (V) 2 2 Send Meter Report of current (A) 4 4 Send Meter Report of wattage (W) 8 8 Send Meter Report of energy (kWh) 256 256 Send Multi Channel Meter Report of wattage (W) on Channel 1 512 512 Send Multi Channel Meter Report of wattage (W) on Channel 2 2048 2048 Send Multi Channel Meter Report of energy (kWh) on Channel 1 4096 4096 Send Multi Channel Meter Report of energy (kWh) on Channel 2 65536 65536 Send Multi Channel Meter Report of voltage (V) on Channel 1 131072 131072 Send Multi Channel Meter Report of voltage (V) on Channel 2 524288 524288 Send Multi Channel Meter Report of current (A) on Channel 1 1048576 1048576 Send Multi Channel Meter Report of current (A) on Channel 2 110 Set parameter 111-113 to default value. Set parameter 111-113 to default value. 0 1 0 0 0 From To Description 0 0 Reset the parameter 111-113 111 Set the interval of automatic report for Report group 1. Set the interval of automatic report for Report group 1. 0 4 0 0 10 From To Description 1 2147483647 The range of interval time is 1 to 2147483647. 112 Set the interval of automatic report for Report group 2. Set the interval of automatic report for Report group 2. 0 4 0 0 600 From To Description 1 2147483647 The range of interval time is 1 to 2147483647. 81 To set which notification would be sent to the associated nodes in association group 3 To set which notification would be sent to the associated nodes in association Group 3 when using the external switch 1 to switch the loads. 0 1 0 0 1 From To Description 0 0 Send Nothing 1 1 Send Basic Set CC 121 Configure the external switch mode for S2. Configure the external switch mode for S2. 0 1 0 0 0 From To Description 1 1 2-state switch mode 2 2 3 way switch mode 0 0 Enter automatic identification mode 3 3 Momentary push button mode 122 Set the control destination for external switch Set the control destination for external switch 0 1 0 0 3 From To Description 1 1 control the output loads of itself. 2 2 control the other nodes 3 3 control the output loads of itself and other nodes. 120 Configure the external switch mode for S1. Configure the external switch mode for S1. 0 1 0 0 0 From To Description 0 0 Enter automatic identification mode 1 1 2-state switch mode 2 2 3 way switch mode 3 3 Momentary push button mode 3 Current Overload Protection. Output Load will be turned off automatically after 30 seconds and if the current overrun 10.5A. 0 1 0 0 1 From To Description 1 1 Enable 0 0 Disable 4 Overheat protection. Output Load will be turned off automatically after 30 seconds and if the temperature of product inside exceeds 100 ℃. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 113 Set the interval of automatic report for Report group 2. Set the interval of automatic report for Report group 3. 0 4 0 0 600 From To Description 1 2147483647 The range of interval time is 1 to 2147483647. 252 Lock/unlock configuration parameters Lock/unlock configuration parameters. 0 1 0 0 0 From To Description 0 0 Unlock 1 1 Lock 255 Reset the Dual In-Wall Switch Reset the Dual In-Wall Switch to factory default. 0 4 0 0 0 From To Description 0 0 Reset all configuration parameters to factory default setting 1431655765 1431655765 Reset to factory default setting and removed from the z-wave network 80 To set which notification would be sent to the associated devices (Group 1) To set which notification would be sent to the associated devices (Group 1) when the state of Dual Nano Switchr’s load is changed. 0 1 0 0 0 From To Description 0 0 Send Nothing 1 1 Send Hail CC 2 2 Send Basic CC report 3 3 Send Hail CC when using the manual switch to change the load state.
Texts	ID Description Value 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing. 5 Factory Reset Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is missing or inoperable.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
