Product Recognition

Certification Number

ZC10-20026861

Name

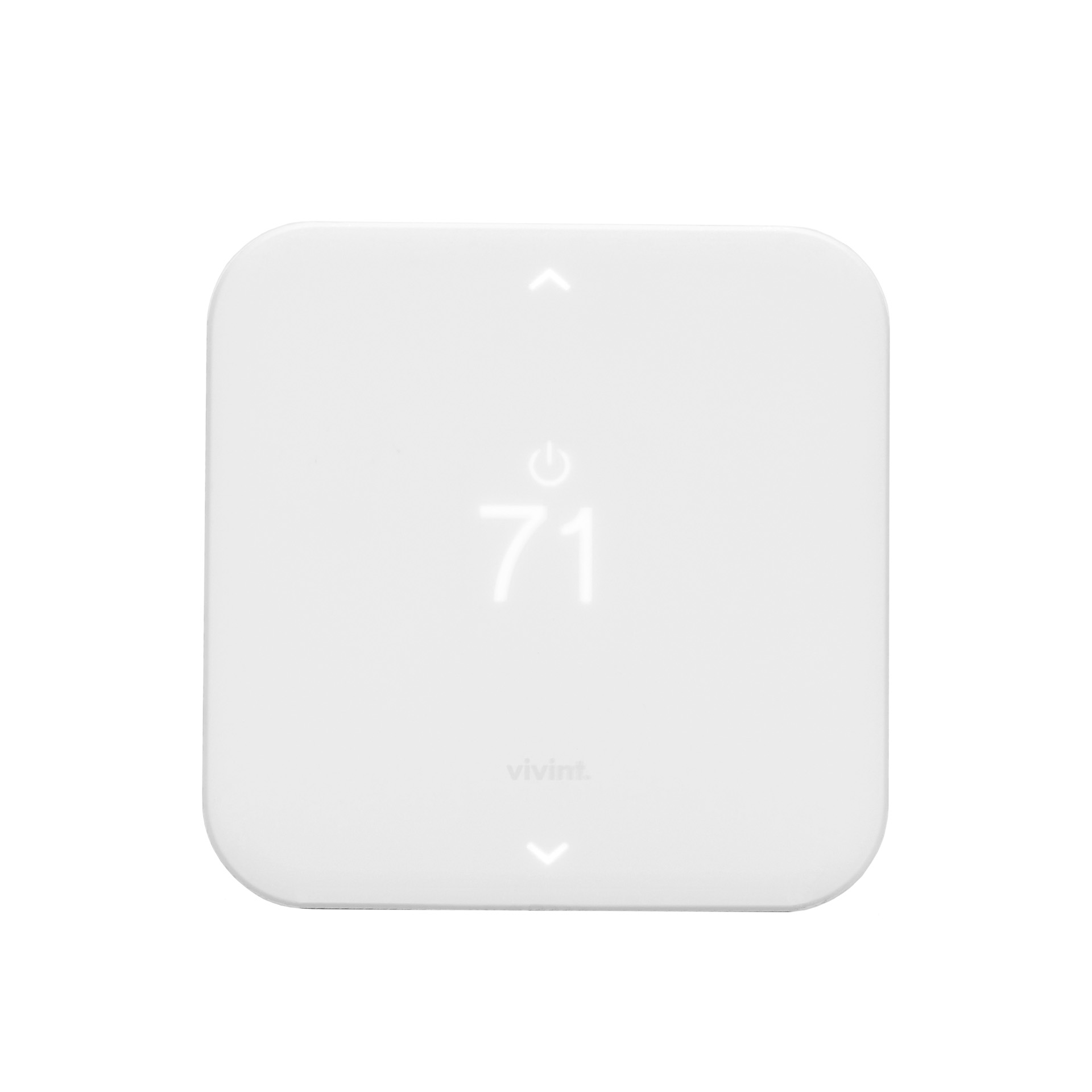

Element Thermostat V2

Short Description

A smart thermostat you can control from anywhere.

Long Description

Conserving energy doesn’t mean you have to sweat in the summer and freeze in the winter. As part of your Vivint Smart Home system, the Element thermostat uses your security system and sensors to know when you’re home, asleep, away, or on vacation. Using that information, it automatically adjusts, keeping you comfortable when you’re home and conserving energy when you’re not. Using the Vivint Smart Home app, you can access your thermostat and control the temperature in your home from anywhere, at any time. Thanks to integration with Amazon Alexa and Google Assistant, you can even adjust the temperature with the sound of your voice. And with an elegant design than blends into your home’s interior, its illuminated controls fade out as you walk away.

Brand

Vivint

Product Identifier

EV2

Product Line

Thermostat

OEM Version

HW: 1 FW: 6.04:00.15

Hardware Platform

ZM5202

Z-Wave Version

6.81.03

Library Type

SLAVE_ROUTING

Device Type

Thermostat - HVAC

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0156

Product Type ID

0x5448

Product ID

0x0001

User Icon

0x1200

Installer Icon

0x1200

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

Thermostats

Countries / Regions

United States of America

Supported Command Classes

S2 Classes

S2_UNAUTHENTICATED

Documents

Features

Association Groups

Texts

ID	Description	Value
5	Factory Reset Procedure	Reset will restore the thermostat settings to the factory defaults. It will also disconnect the thermostat from the Z-Wave network. 1. Press the DOWN arrow to highlight Reset, then press the SIDE button. 2. Confirm that you want to reset the thermostat, select yes, then press the SIDE button. The thermostat resets. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
4	Wake-Up Procedure	The thermostat’s node type is pre-determined when it connects to the Z-Wave network; if the C-Wire is not connected and is only battery-powered when connecting to the network, the thermostat will remain a frequent listening routing slave (FLiRS) node until it is removed from the network. When your thermostat is running on battery power, the Z-Wave radio will turn off to help conserve battery life. The thermostat Z-Wave radio module supports Z-Wave beaming, which allows other devices in the network to wake up the Z-Wave module and accept commands and then go back to sleep. When your thermostat is running on C-Wire power, the Z-Wave radio will stay on and actively help route messages within the Z-Wave network. The thermostat’s node type is pre-determined when it connects to the Z-Wave network; if the C-Wire is present and powered when connecting to the network, the thermostat will remain an always-listening node until it is removed from the network.
8	Where to find S2 DSK on product	The SmartStart QR code can be found on the back of the product, side of the package, or also inserted as a insert card/sticker. The sticker contains the full DSK string. It’s important that if you plan to use DSK that you keep this label in a safe place you’ll remember.
2	Classic Exclusion	To get into Installer Settings, from the Home Screen, press and hold the SIDE button for three (3) seconds to access the SETTINGS menu. Use the UP/DN arrows to select the INSTALLER SETTINGS. Press the side button. Use the UP/DN arrows to select the NETWORK settings. If the thermostat IS connected to the Z-Wave Network, “Disconnect” will be displayed. Press the SIDE button to disconnect.
1	Classic Inclusion	1. Set your panel to add node mode to add the thermostat as a node on your network. 2. The Thermostat main screen shows a welcome message. Press the SIDE button to continue. 3. When your panel is ready to connect to the Thermostat, press the SIDE button to connect. This initiates the network connection process. The Thermostat’s screen says “Connecting.” • If the connection fails, the screen says, “Failed.” Press the SIDE button to try connecting again. 4. When the Thermostat has successfully joined a Z-Wave network from the panel, the screen displays the message “Next”. 5. Complete your setup on the VIVINT panel. 6. Press the SIDE button to continue. Your panel indicates that the thermostat was successfully added to its network (see your specific controller’s User Manual for details).

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes
