Product Recognition
Certification Number	ZC10-17035458

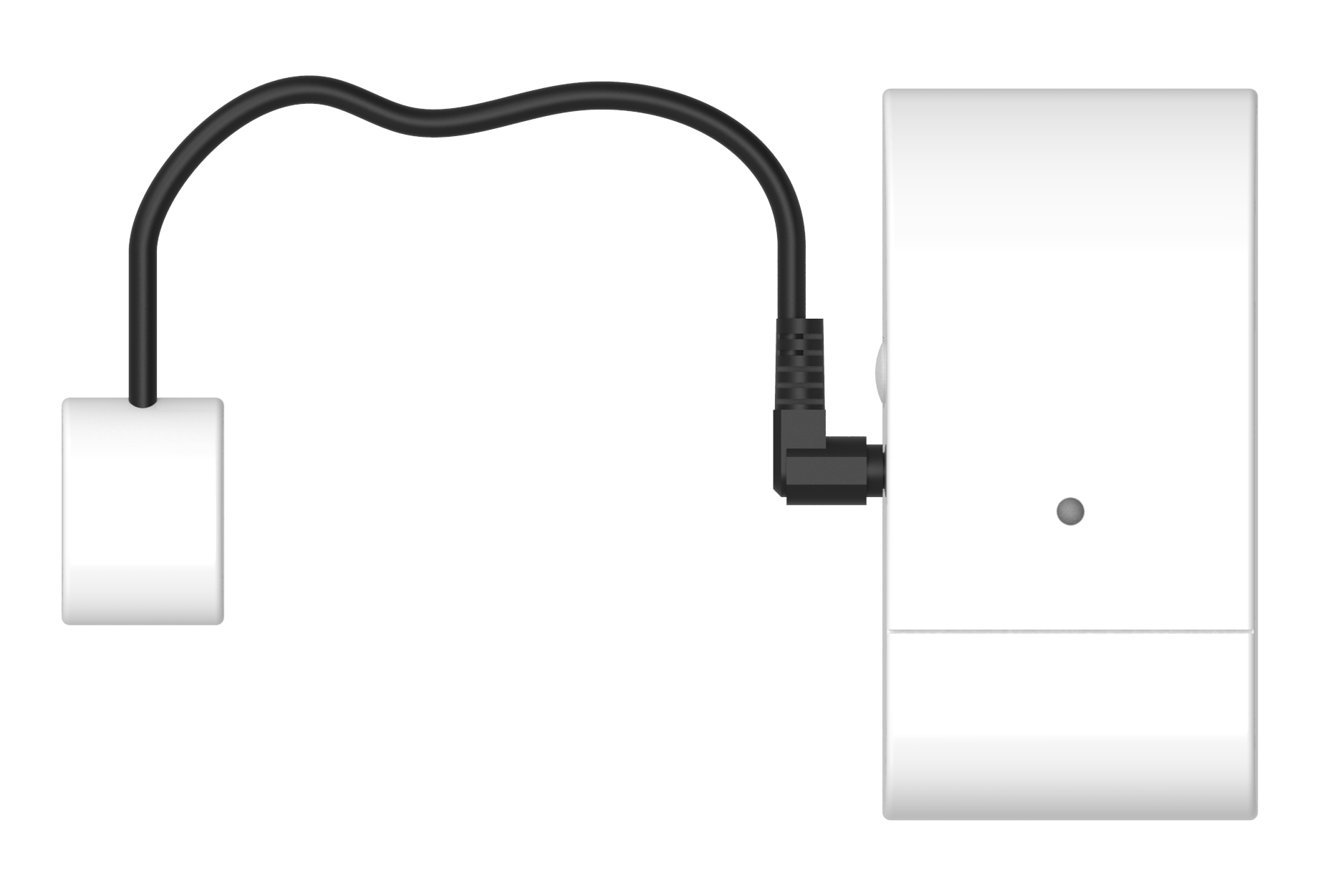

Name	Energy Meter
Short Description	EMD-1ZW E-Meter is a power metering device designed to measure electricity consumption from the electricity meter.
Long Description	EMD-1ZW E-Meter is a power metering device designed to measure electricity consumption from the electricity meter. E-Meter counts LED pulses from the house meter and converts it to Watt and accumulated KWh. Measuring your home’s energy consumption is the first and most important step toward reducing energy consumption and achieving greater energy efficiency.
Brand	Climax Technology
Product Identifier	EMD-1ZW
OEM Version	HW: 255 FW: 1.37
Hardware Platform	ZM5202
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Whole Home Meter - Simple
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x018E
Product Type ID	0x0004
Product ID	0x000C
User Icon	0x1700
Installer Icon	0x1700
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_METER_V2 Meter V2 0x32 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual EMD-1ZW 20170218.pdf
Features	Feature Values Supported Meter Type Value Electric Energy Battery Quantity Value 2 Battery Type Value Alkaline Batteries AA Firmware Updatable Value Updatable by Professional/Technician
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 3 0 Group 1 for “LifeLine”: Battery CC (COMMAND_CLASS_BASIC) Device Reset Locally CC Meter CC
Texts	ID Description Value 1 Inclusion This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufactures and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. -Insert batteries to power on the E-meter. -Put the Z-Wave control panel into Inclusion mode (please refer to the Z-Wave control panel manual). -Within 1.5 seconds, press the Function Button 3 times. -Refer to operation manual of the Z-Wave Gateway or Control Panel to complete the adding process. If the device has already been added (included) into another Z-Wave Gateway/Control Panel, or if the device is unable to be added into the current Z-Wave Gateway/Control Panel, try removing it first (see Removing Device). 2 Exclusion The device must be removed from existing Z-Wave network before being added into another. Exclusion Mode -Put the Z-Wave Gateway or Control Panel into Exclusion mode (please refer to the Z-Wave or control panel manual). -Within 1.5 seconds, press the Function Button 3 times and the device will be removed from the Z-Wave network. 5 Factory Reset Factory resetting the device will restore it to factory default settings (i.e. not included into any Z-Wave network). Please only use this procedure if the Z-Wave Gateway or Control Panel is lost or otherwise inoperable. -Press and hold the Function Button of the device for 10 seconds to factory reset.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
