Product Recognition
Certification Number	ZC10-16035027
Name	FESCO H2

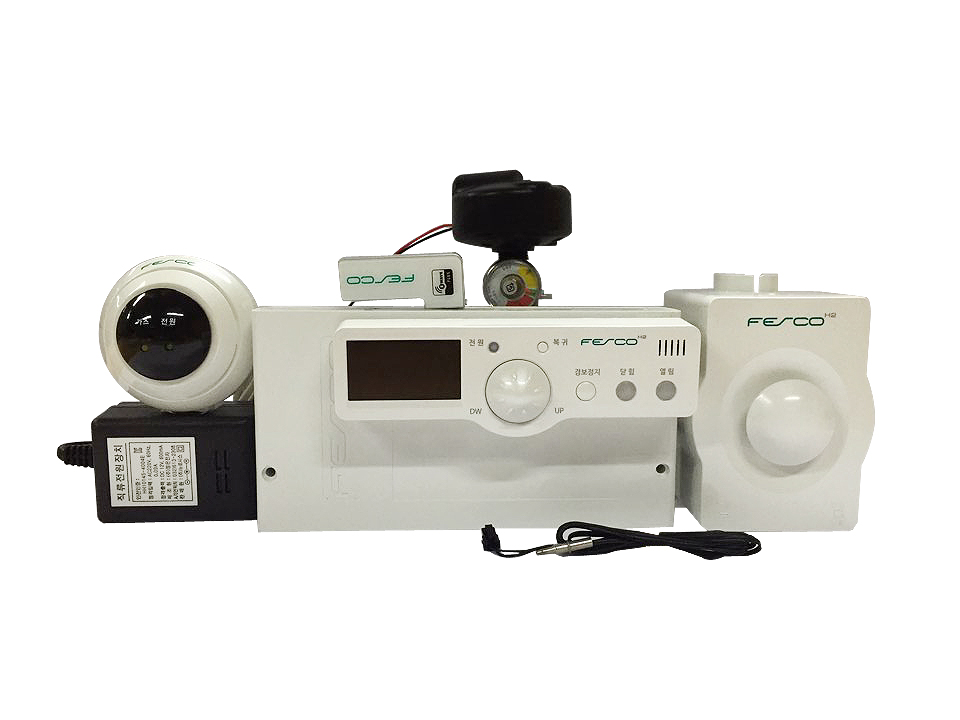

Short Description	FCP-01 Z-Wave Smart Fire Extinguisher device has below function. There are Gas Leak detection, Fire (Temperature) sensing, control of cooking time, cut-off time of gas valve, Fire Extinguisher operation, Gas Valve open/close function
Long Description	1. Minus & Minimal design suitable for high class kitchen interior 2. Plug-in parts for easy installation 3. Precise gas leakage detection assures safety 4. Prevents malfunction perfectly with dual electronic fire monitoring control 5. Anticorrosive stainless temperature sensor with high sensitivity 6. Excellent dual disaster prevention system and wide protection area (0.6m2) 7. Power saving electronic gas valve 8. By using this application, you can check the conditions and use smart functions such as valve control and timer alarm.
Brand	FESCO
Product Identifier	FCP-01
OEM Version	HW: 1 FW: 39.18
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Valve - Open/Close
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0257
Product Type ID	0x004D
Product ID	0x0001
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	KR: 920.90MHz, 921.70MHz, 923.10MHz
Categories	Gas Valves
Countries / Regions	Republic of Korea
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual FCP01 user manual1600304.docx
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 1 Inclusion After doing inclusion action on controller, then hold 5 seconds “STOP SOUND” button till hearing beep once 2 Exclusion After doing exclusion action on controller, then hold 5 seconds “STOP SOUND” button till hearing beep once 5 Factory Reset Hold 10 seconds “STOP SOUND” button till hearing beep once -Use this procedure only in the event that the network primary controller is missing or otherwise inoperable
Supports NWI	Yes
Supports Explorer Frames	Yes
