Product Recognition
Certification Number	ZC10-17025432

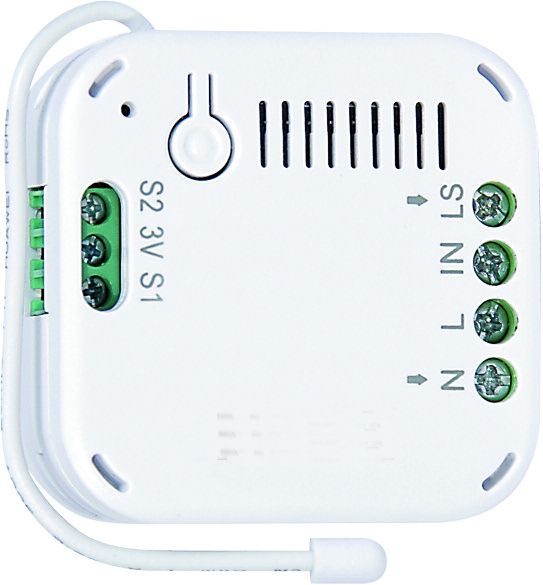

Name	In-Wall On/Off Switch Module
Short Description	The LIZY0005 is an in-wall on/off switch module.
Long Description	The In-Wall On/Off Module is a Z-Wave enabled device which is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave enabled networks. Inclusion of this unit on other manufacturer’s Wireless Controller menu allows remote operation of the unit and the connected load. Z-Wave node in the system also acts as a repeater, so the RF signal can reach its intended receiver by routing around obstacles and radio dead spots. The In-Wall On/Off Module is designed to control the on/off status of lighting and appliances load in your house. Two sets of dry contacts provide more wiring applications. For security, the unit can detect overheating and will turn off relay automatically to avoid damage. At 230V voltage, this module can support up to 2500W resistive, 1200W incandescent, 700W motor, or 320W (40W*8) fluorescent load.
Brand	COMAP
Product Identifier	LIZY0005
OEM Version	HW: 2 FW: 1.02:00.01
Hardware Platform	SD3502
Z-Wave Version	6.51.02
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0329
Product Type ID	0x0004
Product ID	0x0008
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual AN179_A501112256R.pdf
Features	Feature Values Gateway Has Preferred Partners Switch Load Capacity Watts Value 2500W Loads Controlled Value 2 Supported Notification Types Value System Switch Type Value Push Button Color Value White Communications Protocol Value Z-Wave Serial API Electric Load Type Value Incandescent LED Firmware Updatable Value Not Updatable
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Lifeline frame : groupingIdentifier + maxNodesSupported + reportsToFollow + nodeid1 2 4 0 On/Off control (Button1) frame : groupingIdentifier + maxNodesSupported + reportsToFollow + nodeid1 + nodeid2 + nodeid3 + nodeid4
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Basic Set Command value The Basic Set value. 0 2 0 0 255 From To Description 0 99 Dimmer Value 255 255 switch on 2 The delaying time to report to Group 1: delay for while second to send 0 1 0 0 3 From To Description 3 25 unit is second 3 Remember the last status to setup remember the on/off last status if power applied 1: remember 0: do not remember 0 1 0 0 1 From To Description 0 1 remember or not 4 Switch 1 switching type setup the Switch Contact switch mode 0: Single Pole Double Throw 1: Toggle switch 0 1 0 0 0 From To Description 0 1 mode 1 or mode 2
Texts	ID Description Value 1 Inclusion 1. Put the Z-Wave Controller into inclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into inclusion mode. 2 Exclusion 1. Put the Z-Wave Controller into exclusion mode. 2. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. 5 Factory Reset (This procedure should only be used when the primary controller is no longer operational.) 1. Press the link key three times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press link key again and hold until LED is off (about 5 sec.). 3. Node ID is excluded, and the unit is returned to the factory default state.
Supported Notification Types	Notification Type Event / State System (Refer to parameters): State idle
Supports NWI	Yes
Supports Explorer Frames	Yes
