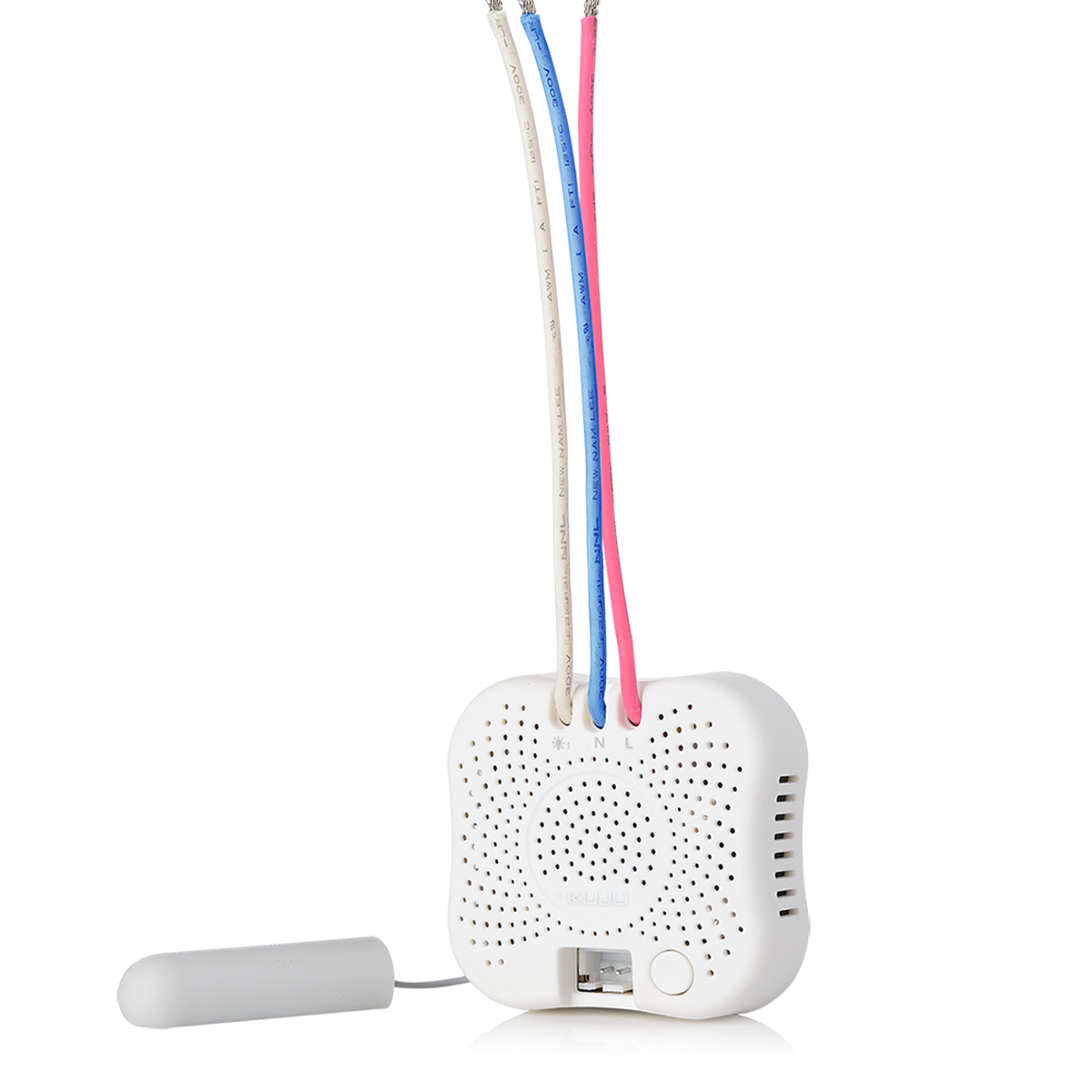

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_SWITCH_ALL

Switch All

0x27

1

COMMAND_CLASS_SWITCH_BINARY

Switch Binary

0x25

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_MULTI_CHANNEL_V4

Multi-Channel V4

0x60

4

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_BASIC

Basic

0x20

1

Manual_Primary_Lang

Product or Owner's Manual

Loads Controlled

Neutral Wire Required

Color

Outdoor Use

Switch Type

Electric Load Type

1

1

0

This group is dedicated for device status reporting to gateway/master controller Z-Wave command class: SWITCH BINARY REPORT DEVICE_RESET_LOCALLY_NOTIFICATION

2

2

0

This group is dedicated for “load 1 on”, BASIC SET ON command will be sent out when load 1 is turned on

3

2

0

This group is dedicated for “load 1 off”, BASIC SET OFF command will be sent out when load 1 is turned off

4

2

0

This group is dedicated for “load 2 on”, BASIC SET ON command will be sent out when load 2 is turned on

5

2

0

This group is dedicated for “load 2 off”, BASIC SET OFF command will be sent out when load 2 is turned off

2

synchronize

Rocket switch button “on/off location” synchronize with insert module on/off status

0

1

0

0

255

3

power on

Default Lighting on/off when power turn on

0

1

0

0

255

1

Selection of Switch types

0

1

0

0

255

2

Exclusion

Step 1) Start the gateway in Remove device mode. Step 2) Trigger module start ""Device Add/Remove"" mode by program button on the module or local switch connected to the module as following: a) By program button on the module: Quick pressing the program button 3 times in 1.5 seconds ( LED quick flashing ) to enter “Device Add/Remove” mode. LED lights up for 3 sec to indicate Remove process complete. b) By switch connected to the module (only available after 10 mins of AC power on ): ● Rocker Switch: Quick toggle channel 1 or channel 2 switch turn on and off 5 times( LED quick flashing ) to enter “Device Add/Remove” mode. LED lights up for 3 sec to indicate Remove process complete. ● Momentary Switch: Quick pressing channel 1 or channel 2 switch button 5 times ( LED quick flashing ) to enter “Device Add/Remove” mode. LED lights up for 3 sec to indicate Remove process complete.

5

Factory Reset

Press and hold the program button for 10 sec, LED lights up for 3 sec to indicate the factory default reset complete. Note:Please use this procedure only when the network primary controller is missing or otherwise inoperable.

6

Additional Special Features

Advanced Configuration 1、Selection of Switch types Parameter number Parameter Size Value Description 1 1 00 Momentary switch panel 1 1 FF （default） Rocker switch panel 2、Rocket switch button “on/off location” synchronize with insert module on/off status Parameter number Parameter Size Value Description 2 1 00 Synchronize 2 1 FF （default） Not Synchronize 3、Default Lighting on/off when power turn on Parameter number Parameter Size Value Description 3 1 00 Load 1&2: off 3 1 FF（default） Load 1&2:resume last status

1

Inclusion

Step 1) Start the gateway in Add device mode. Step 2) Trigger module start ""Device Add/Remove"" mode by program button on the module or local switch connected to the module as following: a) By program button on the module: Quick pressing the program button 3 times in 1.5 seconds ( LED quick flashing ) to enter “Device Add/Remove” mode. LED lights up for 3 sec to indicate Add process complete. b) By switch connected to the module (only available after 10 mins of AC power on ): ● Rocker Switch: Quick toggle channel 1 or channel 2 switch turn on and off 5 times( LED quick flashing ) to enter “Device Add/Remove” mode. LED lights up for 3 sec to indicate Add process complete. ● Momentary Switch: Quick pressing channel 1 or channel 2 switch button 5 times ( LED quick flashing ) to enter “Device Add/Remove” mode. LED lights up for 3 sec to indicate Add process complete.
