Product Recognition
Certification Number	ZC10-15100006

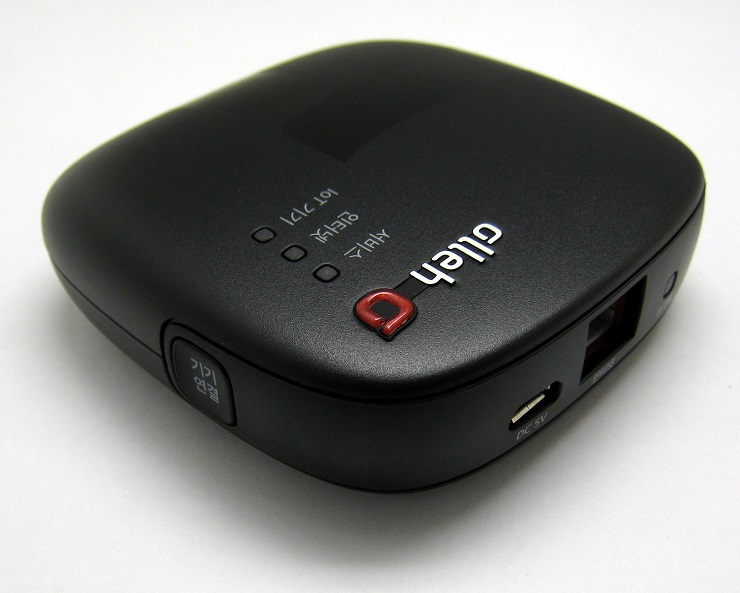

Name	IoT Hub
Short Description	MC01-507 is universal controller which can control the several control group device.
Long Description	IoT Hub is universal controller which can control several control groups. This IoT Hub can support full function of Notification Sensor, Door Lock and Gas Valve products made for KT. Other products made as general Z-Wave plus standard can be controlled with limited function.
Brand	Mercury
Product Identifier	MC01-507L
OEM Version	01
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	CONTROLLER_BRIDGE
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x022D
Product Type ID	0x0100
Product ID	0x0001
Frequency Plans	KR: 920.90MHz, 921.70MHz, 923.10MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	Republic of Korea
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_NETWORK_MANAGEMENT_INCLUSION Network Management Inclusion 0x34 1 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION Multi-Channel Association V1 0x8E 0 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_ZWAVEPLUS_INFO Z-Wave Plus Info 0x5E 1 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_NOTIFICATION Notification V1 0x71 0 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_VERSION Version 0x86 1 COMMAND_CLASS_NETWORK_MANAGEMENT_BASIC Network Management Basic 0x4D 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual MC01507Luserguide.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion You can add the device by either hardware button or application. - Hardware button : Press the Add/Remove button (Start Z-Wave LED blink) - Application : 1. Click Add the device button. 2. Click Start button. (Start blink Z-Wave LED) 3. MC01-507L put into inclusion mode to add to the device. When finished adding the device, the Z-Wave LED is green light ON. (Stop blink Z-Wave LED) 4. The home screen of the app shown the added device. 5. Click the device icon. The screen detail view about information of added-device and can control device on this screen. 5 Factory Reset Press Reset button more than 5 seconds. 3 Learn Mode (adding another controller) 1. Select Controller Learn Mode Request command in the Emulator. 2. Click Kafka Send button. 3. Enter the parameter value. 4. Click Confirm button. 24 Controller Exclusion You can remove the device by either hardware button or application. - Hardware button : Press the Add/Remove button(Start Z-Wave LED blink) - Application : 1. Click Menu button on the screen detail view. 2. Click Remove the device button. 3. Click Remove button. (Start blink Z-Wave LED) 4. MC01-507L put into exclusion mode and it will remove the device. When finished removing the device, the Z-Wave LED is green light OFF. (Stop blink Z-Wave LED) 5. The home screen of the app shows the removed device.
Supports NWI	Yes
Supports Explorer Frames	Yes
