Product Recognition
Certification Number	ZC14-25120564

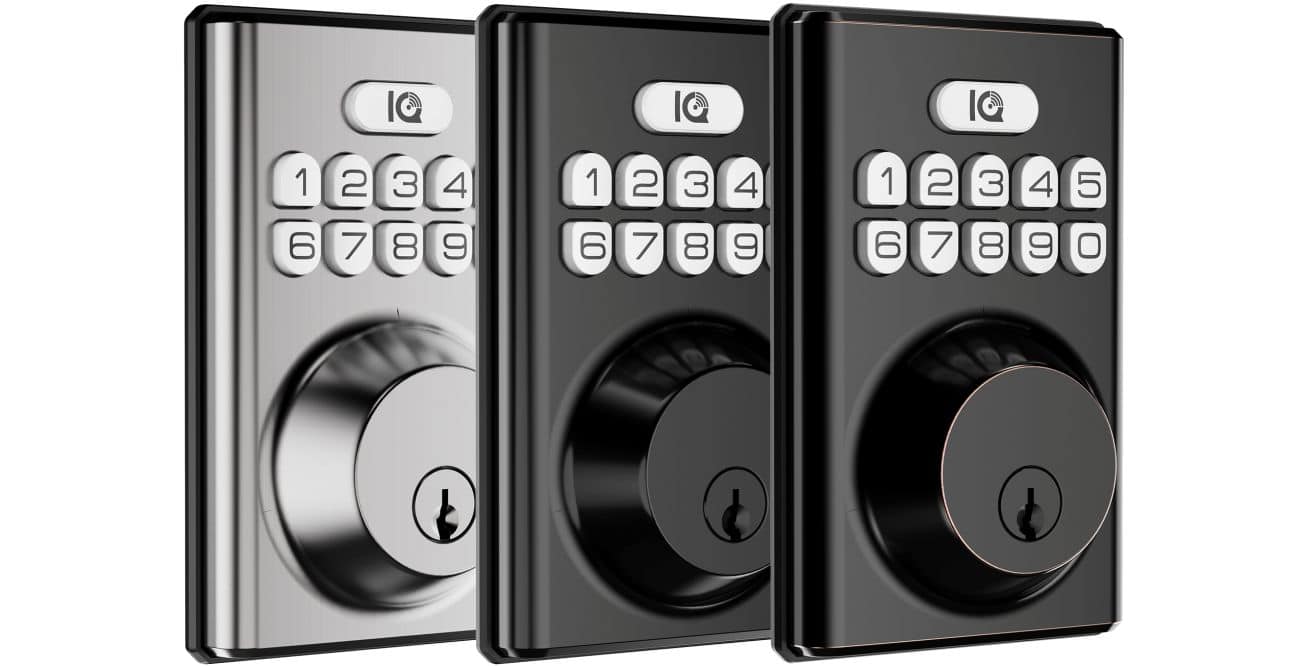

Name	IQ Lock-PGP
Short Description	Wireless Z-Wave Smart Lock with Rubber Keypad
Description	The IQ Lock-PGP, a wireless Z-Wave Smart Lock with Rubber Keypad, is equipped with Z-Wave Plus S2 security encryption, offering multi-layered protection for smart home networks. S2 Security enhances both the reliability and stability of the network while ensuring improved interoperability with smart home systems. Additionally, the IQ Lock-PGP supports Z-Wave Long Range communication and is capable of Over-the-Air (OTA) firmware updates for seamless performance enhancements.
Brand	IQ
Brand Owner	Johnson Controls
Identifier	IQ Lock-PGP
Product Line	Z-Wave Plus v2 Devices
OEM Version	HW: 01 FW: 02.00:00.110
Hardware Platform	EFR32ZG23A
Z-Wave Version	7.18.8
Library Type	END_NODE_ENHANCED_232
Device Type	Lock DT
Role Type	ROLE_TYPE_END_NODE_SLEEPING_LISTENING
Manufacturer ID	0x012A
Product Type ID	0x0103
Product ID	0x0329
User Icon	0x0300
Installer Icon	0x0300
Radio Range Z-Wave (m)	40
Radio Range Z-Wave LR (m)	400
Frequency Plans	US: 916.00MHz, 908.40MHz, ANZ: 919.80MHz, 921.40MHz, CN: 868.40MHz, EU: 869.85MHz, 868.40MHz, HK: 919.80MHz, 919.80MHz, IL: 916.00MHz, IN: 865.20MHz, RU: 869.00MHz, JP: 922.50MHz, 923.90MHz, 926.30MHz, KR: 920.90MHz, 921.70MHz, 923.10MHz, US_LR: 912.00MHz, 920.00MHz
Categories	Locks
Countries / Regions	Argentina, Bahamas, Barbados, Bermuda, Bolivia, British Virgin Islands, Canada, Cayman Islands, Colombia, Guatemala, Haiti, Honduras, Jamaica, Mexico, Panama, Saint Kitts and Nevis, Suriname, Trinidad and Tobago, Turks and Caicos Islands, United States of America, Australia, Brazil, Chile, El Salvador, Indonesia, Malaysia, New Zealand, Paraguay, Peru, Uruguay, Venezuela, Vietnam, China, Morocco, Armenia, Bahrain, European Union, Cyprus, Moldova, Egypt, French Guiana, Georgia, Iraq, Jordan, Kazakhstan, Kuwait, Lebanon, Libya, Maldives, Mauritius, Nigeria, Oman, Philippines, Qatar, Saudi Arabia, South Africa, Turkmenistan, United Arab Emirates, ZU, Yemen, Hong Kong, Israel, India, Russian Federation, Costa Rica, Japan, Macao, Singapore, Republic of Korea, Taiwan, Thailand
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_DOOR_LOCK_V4 Door Lock V4 0x62 4 COMMAND_CLASS_NOTIFICATION_V8 Notification V8 0x71 8 COMMAND_CLASS_USER_CODE_V2 User Code V2 0x63 2 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information (AGI) V3 0x59 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta Data V5 0x7A 5 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi Channel Association V3 0x8E 3 COMMAND_CLASS_TIME_V2 Time V2 0x8A 2 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SECURITY Security 0 0x98 1 COMMAND_CLASS_SECURITY_2 Security 2 0x9F 1 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 Schedule Entry Lock V3 0x4E 3
S2 Classes	S2_ACCESS_CONTROL
Documents	Category File Adv_Manual AdvancedInformationProductManualV1.0_2.pdf Manual_English IQLock-PGPInstallationandUser.pdf
Features	Feature Values Battery Quantity Value 4 Battery Type Value AA alkaline battery Door Lock Type Value Deadbolt Firmware Updatable Value Updatable by Consumer by RF
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Profile 1 5 0 Lifeline 0x0001 2 5 0 On/Off control 0x2000
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value 1 Set the volume to silent Set the volume to silent 2 1 0 0 0x01 2 Timed battery report Configure timed battery report 1 2 0 0 0x05A0 3 Code Privacy Set door lock keypad random number display 2 1 0 0 0x00 4 Code to Lock Set the switch between one-click locking and user password locking 2 1 0 0 0x00
Texts	ID Description Value 8 Where to find S2 DSK on product You can find the QR code when you open the battery box You may also find the QR Code and DSK on individual package of each product. Please do not remove or damage them. 1 Classic Inclusion 1. Follow the user guide of hub to enter inclusion mode. 2. Operate on lock following guide below: 1) Press the RF Button 3 times within 6 seconds to switch to Z-Wave mode. 2) Press the RES Button once briefly with a tool to start the network inclusion process. 2 Classic Exclusion 1. Follow the user guide of hub to enter exclusion mode. 2. Operate on lock following guide below: 1) Press the RES Button once briefly with a tool to start the network exclusion process. 5 Factory Reset Procedure 1. Operations on lock 1) Keep your lock in "unlock" status. 2) Use the provided reset pin to press and hold the RES button for more than 5 seconds until hearing beep sound. 3) If reset is successful, the bolt will extend on its own to learn the orientation of the door. The lock will reset itself to factory default by sending a "Device Reset Locally Notification" to gateway. 2. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Supported Notification Types	Notification Type Event / State Access Control Manual lock operation Access Control Manual unlock operation Access Control RF lock operation Access Control RF unlock operation Access Control Keypad lock operation Access Control Keypad unlock operation Access Control Auto lock locked operation Access Control Lock state: Lock jammed Access Control All user codes deleted Access Control Single user code deleted Access Control New user code added Access Control New user code not added due to duplicate code Access Control Manually enter user access code exceeds code limit Access Control Keypad state: Keypad temporary disabled Access Control Messaging User Code entered via keypad Power Management Power status: Power has been applied Power Management Battery maintenance status: Replace battery soon Power Management Battery maintenance status: Replace battery now
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
Supports SmartStart	Yes
