Product Recognition

Certification Number

ZC10-18066143

Name

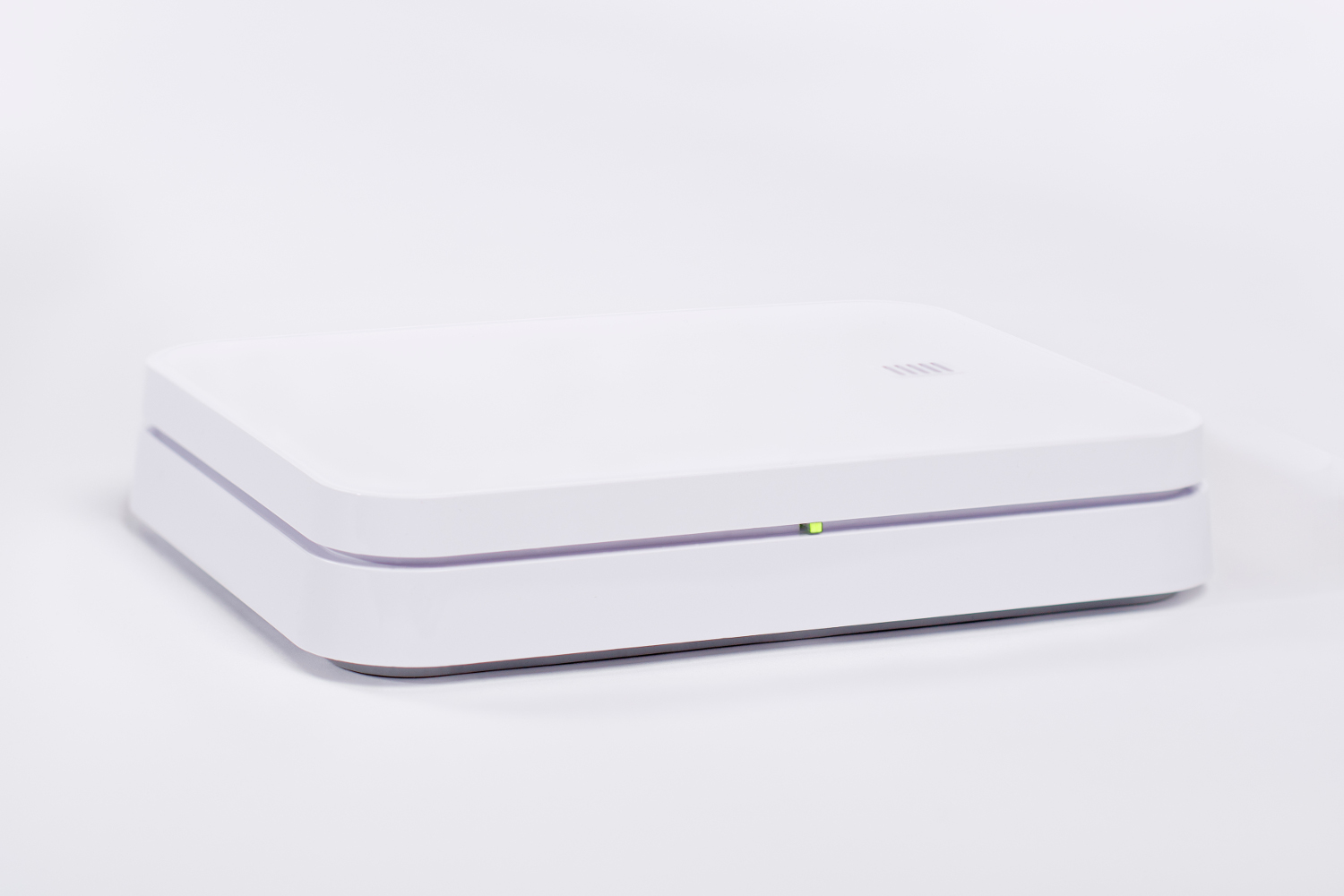

LifeShield S30 Base

Short Description

The LifeShield S30 Base is the central hub for the LifeShield wireless home security system.

Long Description

The LifeShield S30 Base is the central communication platform for security and automation devices in the LifeShield home security ecosystem. The S30 Base allows automation and security devices to interact to enhance the safety and home experience for LifeShield customers.

Brand

LifeShield

Product Identifier

S30

OEM Version

HW: 1 FW: 6.14:02.81:01.00:01.00

Hardware Platform

ZM5202

Z-Wave Version

6.81.01

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0224

Product Type ID

0x0001

Product ID

0x0001

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL

Documents

Features

Association Groups

Texts

ID	Description	Value
23	Controller Inclusion	1. To add a Z-Wave device, 3. Enter master code. Navigate to Settings. 2. Choose devices. 4. Click on the add button. 5. Choose the type of device you would like to add to the system. 6. The system willthen enter z-wave add mode. 7. Now follow the instructions provided by your device for including it in a Z-Wave network.
24	Controller Exclusion	To remove a device from the Z-Wave network, go to settings -> Devices as you would when adding a new device, but instead of selecting the ‘+’ icon to add a new device, select the device you would like to remove Select ‘Remove’. The LifeShield system will enter exclusion mode to prepare for the removal. Follow the instructions provided with your device to exclude it from the Z-Wave network (this is often the same procedure you used to include the device). Once the device is removed, you will hear a confirmation beep from the LifeShield base to confirm that the device has been removed.
5	Factory Reset	RESETTING YOUR Z-WAVE NETWORK In order to factory reset your Z-Wave network, navigate to the Z-Wave Utilities page under Settings. Select “Z-Wave Reset Controller” After a few seconds, the LifeShield base will beep to indicate that your Z-Wave network has been reset. Any devices which were part of your Z-Wave network will need to be reset before they can be re-added. Use the Z-Wave General Exclusion menu under Z-Wave Utilities to do this. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
3	Learn Mode (adding another controller)	If you would like to add the LifeShield base into another Z-Wave network, you must first delete all Z-Wave devices from the LifeShield base before proceeding. Once all devices have been deleted, follow the instructions on the other controller to put it into add mode. Once the other Z-Wave controller is in add mode, you can place the LifeShield base into learn mode by navigating to the settings page and choosing Z-Wave Utilities. From this menu, select Z-Wave Learn Mode to put the LifeShield base into learn mode. Follow the instructions on the other controller to complete the add process. Once the add is complete, the LifeShield base will request a copy of the other Z-Wave network configuration, and the network devices will appear on the LifeShield IOS, Android, and web applications. When the LifeShield base is included in another Z-Wave network, it will ignore Basic Z-Wave commands that are sent to it.

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
