Product Recognition | |
|---|
Certification Number | ZC14-25080542 |
|---|

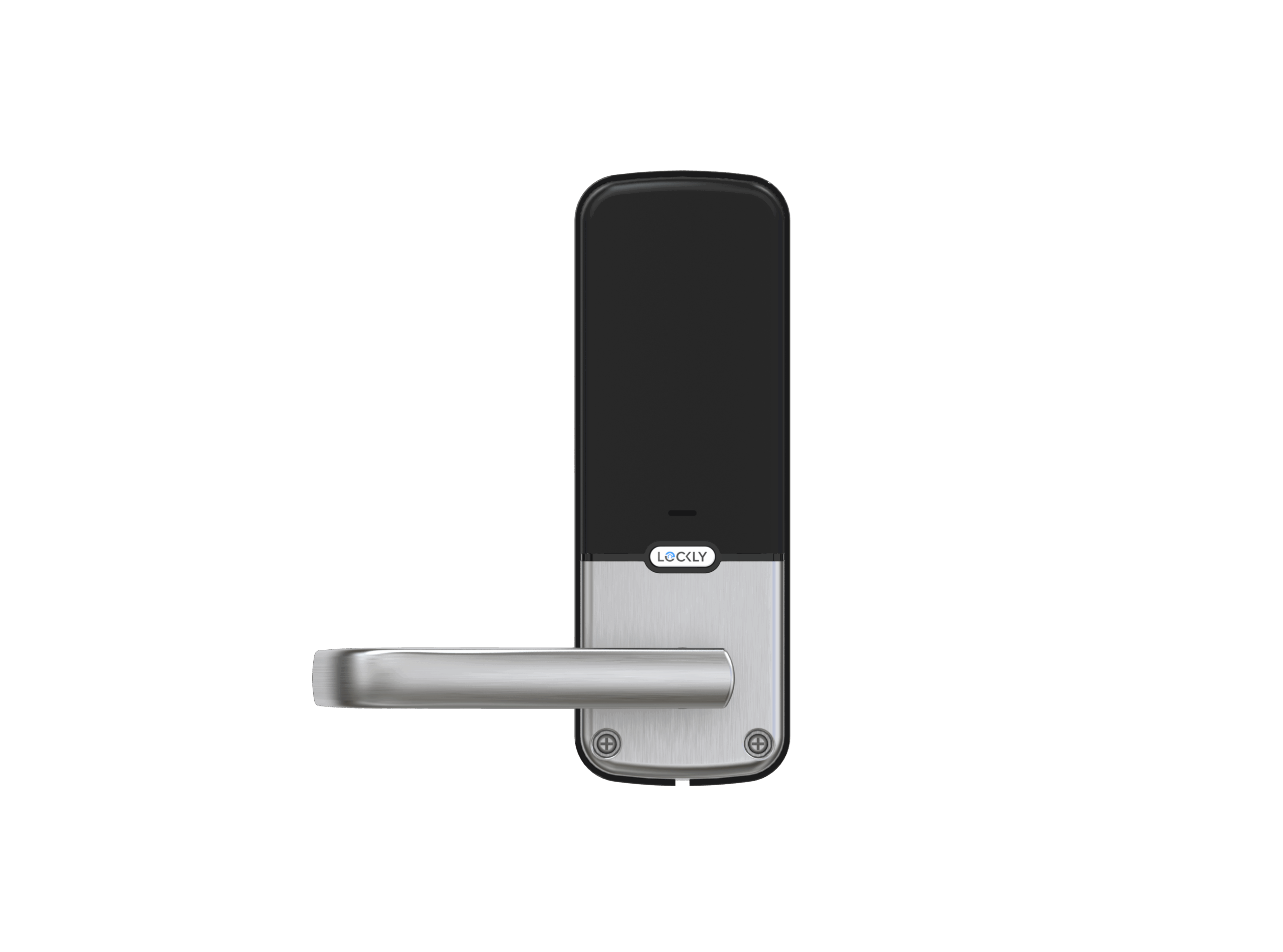

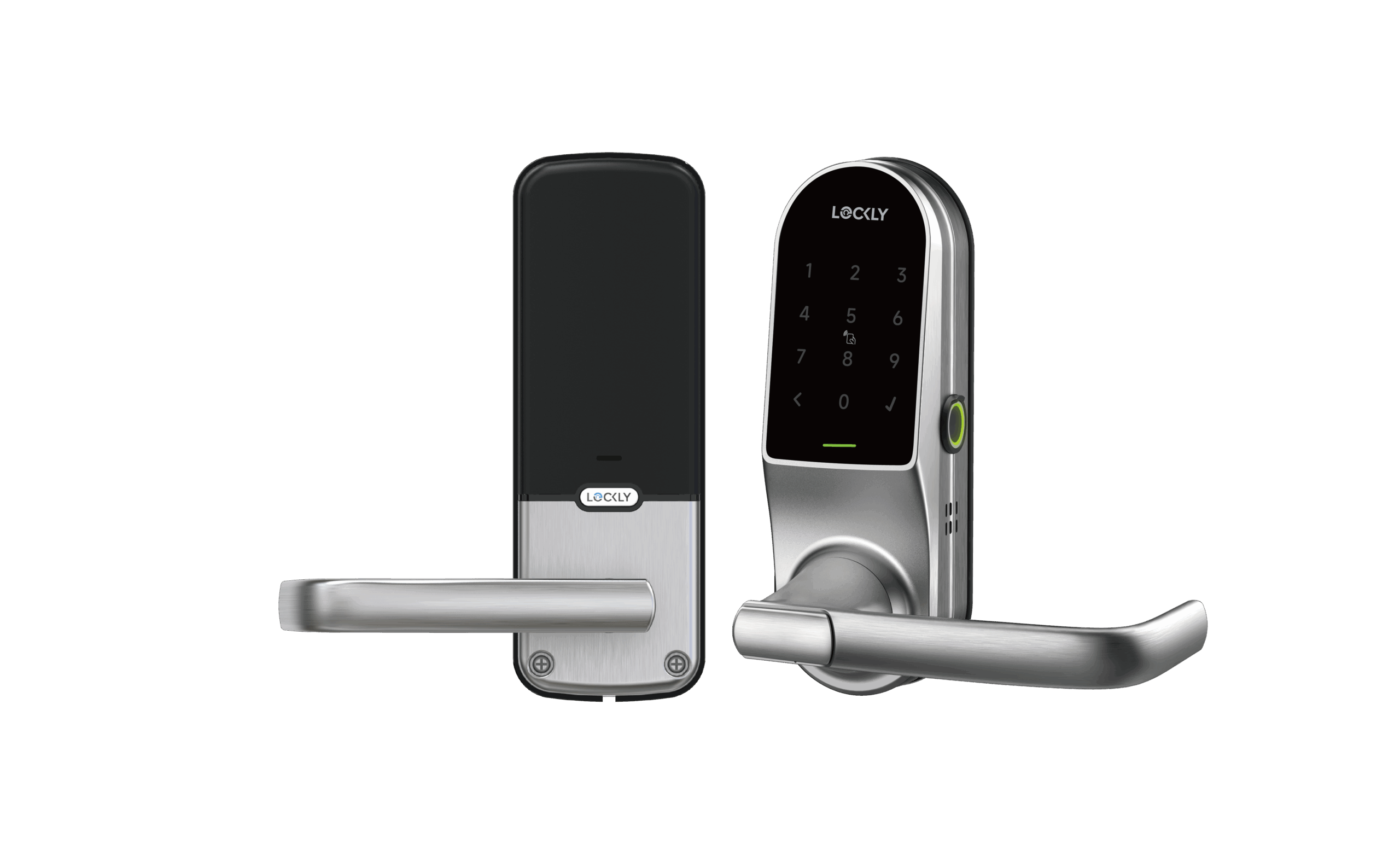

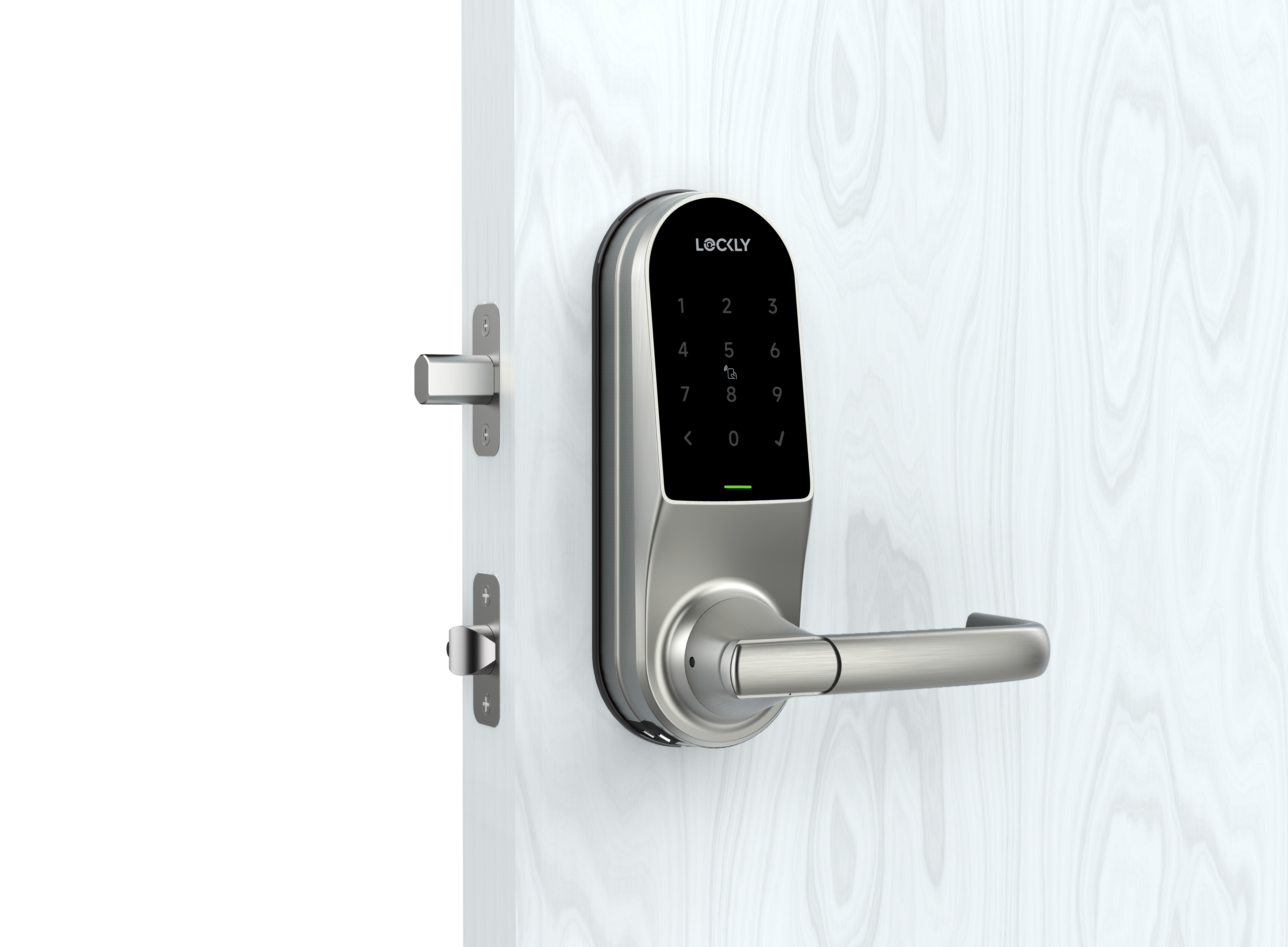

Name | LOCKLY GUARD Interconnected Z-Wave Smart Lock |
|---|
Short Description | LOCKLY GUARD Interconnected Z-Wave Smart Lock |
|---|
Description | The LOCKLY GUARD Interconnected Smart Lock Z-Wave Edition is a sturdy and reliable smart lock. It features fingerprint, ID card, password, and remote control via APP/PC. Its 45-minute UL fire rating and Z-Wave compatibility make it a secure choice for your home. |
|---|
Brand | LOCKLY |
|---|
Brand Owner | PIN GENIE, INC. DBA LOCKLY |
|---|
Identifier | PGD679DZ |
|---|
Product Line | LOCKLY GUARD Z-WAVE version smart lock is a new member of the flagship product in the LOCKLY smart door lock product line |
|---|
OEM Version | HW: 02 FW: 04.46:09.36:00.33 |
|---|
Hardware Platform | ZM5202AU-CME3 |
|---|
Z-Wave Version | 6.85.02 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Lock DT |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x043D |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0076 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_DOOR_LOCK_V4 | Door Lock V4 | 0x62 | 4 | COMMAND_CLASS_DOOR_LOCK_LOGGING | Door Lock Logging | 0x4C | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Information (AGI) | 0x59 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_TIME_V2 | Time V2 | 0x8A | 2 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | File |
|---|
Manual_English | | Adv_Manual | | Installer_Guide | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | Value |
|---|
AA （Alkaline Battery） |
| Door Lock Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer via Internet |
| Outdoor Use | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 5 | 0 | Lifeline | 0x0001 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | Activated Or DeActivated Fp Module | This command is used to control the activated or deactivated state of the fingerprint | 1 | 1 | 0 | 0 | 0x00 |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | 1. Bring the door lock within direct range of your controller.
2. Carefully remove the battery compartment cover.
3. Put your Z-Wave controller into inclusion mode.
4. Press the program button three times to enter pairing Z-Wavemode, at which point the lock screen indicator flashes green.
5. The door lock will appear on your controller's device list, allowing you to change its name as desired.
6. After setup is complete, either press the program button once briefly or wait 2 minutes to automatically exit the device pairing mode. | 2 | Classic Exclusion | 1.Ensure the door lock is powered on and within range of your Z-Wavegateway.
2. Activate exclusion mode on your Z-Wave controller.
3. Press the program button three times to enter deleting Z-Wave mode, at which point the lock screen indicator flashes green.
4. The door lock will disappear from your device list.
5. After setup is complete, either press the program button once briefly or wait 2 minutes to automatically exit the device deletion mode. | 5 | Factory Reset Procedure | If your network’s primary controller is missing or not working, you may
need to reset the door lock to factory settings manually. Ensure the
door lock is not synced to a smartphone, then press and hold the reset
button for at least 3 seconds to reset both the door lock and the
Z-Wave module. You can also reset while syncing with a smartphone.
During the factory reset, the Z-Wave module will send the following
to the Smart Home Controller:
Group: "Lifeline Group"
Instruction: DEVICE_RESET_LOCALLY_NOTIFICATION | 8 | Where to find S2 DSK on product | The QR Code and digits DSK can be found on activation card inside
the box. After you open the box, you can see it on flap top layer. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | Manual lock operation | Access Control | Manual unlock operation | Access Control | RF lock operation | Access Control | RF unlock operation | Access Control | Keypad lock operation | Access Control | Keypad unlock operation | Access Control | All user codes deleted | Access Control | Single user code deleted | Access Control | New user code added | Access Control | Auto lock locked operation | Power Management | Power status: Power has been applied | Power Management | Battery maintenance status: Replace battery soon | Power Management | Battery maintenance status: Replace battery now |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
