Product Recognition
Certification Number	ZC12-21060233

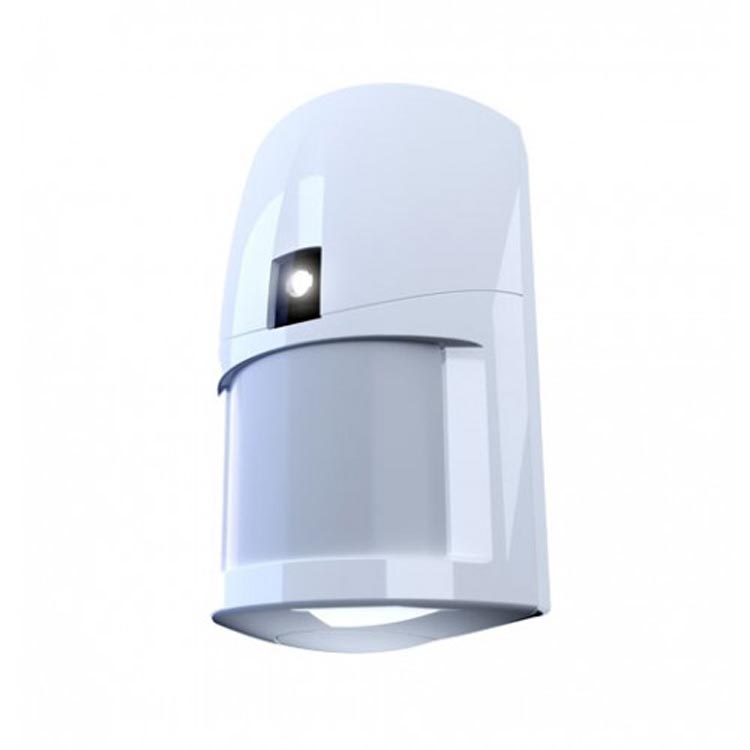

Name	Ness Z-Wave LUX PIR Sensor
Short Description	The LUX Z-Wave Radio PIR allows you to improve the safety and security of your home and family easily and effectively.
Long Description	Built with premium components for better performance, these motion sensors provide instant and reliable performance as part of your security system. Ness is a leading developer of low power, highly reliable wireless solutions, including a wide range of intelligent wireless security, sensing and home automation devices.
Brand	Ness
Product Identifier	ZA-117001
Product Line	LUX PIR Sensor
OEM Version	HW: 1 FW: 1.12
Hardware Platform	ZGM130
Z-Wave Version	7.14.3
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x0189
Product Type ID	0x0204
Product ID	0x0301
User Icon	0x0C07
Installer Icon	0x0C07
Frequency Plans	ANZ: 919.80MHz, 921.40MHz
Categories	Sensors, Security Add-Ons
Countries / Regions	Australia
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta-Data V5 0x7A 5 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information V3 0x59 3 COMMAND_CLASS_NOTIFICATION_V8 Notification V8 0x71 8 COMMAND_CLASS_SECURITY_2 Security S2 0x9F 1 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
S2 Classes	S2_UNAUTHENTICATED, S2_AUTHENTICATED
Documents	Category Description File Manual_Primary_Lang Product Manual 890-493_LUX_ZWave_Manual_Rev1.0_Draft9.pdf
Features	Feature Values Color Value White Battery Type Value CR123A+ Battery Quantity Value 2
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Description 1 5 0 Lifeline BATTERY_REPORT, NOTIFICATION_REPORT, SENSOR_MULTILEVEL_REPORT, DEVICE_RESET_LOCALLY_NOTIFICATION, INDICATOR_REPORT
Configuration Parameters	Parameter Number Name Description Format Read-only Flag Advanced Size Min Value Max Value Default Value Parameter Values 6 Luminance Change threshold This parameter determines the change in Lux of light intensity level resulting in sending luminance report. Range: 0~60 (Lux). Default: 50. Value = 0 Disable luminance value scanning, no report. Note: The luminance value is scanned every 5 seconds. A luminance report will be sent if a change over the set threshold value is detected. 2 Yes Yes 1 0 60 50 From To Description 0 0 Disable luminance value scanning, no report 1 60 Lux luminance value 2 Motion Alarm Retrigger Modes This option will select how the motion alarm retrigger duration timer (CPN#1) to be reset. Range: 0~1. Value = 0, in this mode, the motion alarm retrigger duration timer (CPN#1) will be reset to zero once the motion event is detected. Hence, the motion alarm retrigger duration timer will start recounting which extends the retrigger duration. This mode will extend the battery life and reduce unnecessary motion alarm reports (default). Value = 1, in this mode, the motion alarm retrigger duration timer (CPN#1) would not be reset once the motion event has detected. The motion alarm reports will be enabled to send once the motion alarm retrigger duration timer has expired. In this mode, it will report the motion alarm event with greater fidelity. This setting might be used where the device will be used for automation tasks. 2 Yes Yes 1 0 1 0 From To Description 0 0 Motion alarm retrigger duration timer (CPN#1) will be reset to zero once the motion event is detected 1 1 Motion alarm retrigger duration timer (CPN#1) would not be reset once the motion event has detected 9 Temperature Scale Setting Option to select the temperature scale type reported in Celsius or Fahrenheit. Range: 0~1. Value = 0 Celsius (C): Value = 1 Fahrenheit (F). 2 Yes 1 0 1 0 From To Description 0 0 Celsius 1 1 Fahrenheit 11 Night Light ON based on ambient light level meas Range: 0~1. Value = 0 Night Light ON only when sense detects total darkness (default). Value = 1 Night Light ON only when a small amount of light is detected. 2 Yes Yes 1 0 1 0 From To Description 0 0 Night Light ON only when sense detects total darkness (default) 1 1 Night Light ON only when a small amount of light is detected 8 Temperature Scheduled report interval The temperature value report interval time is based on 30 minutes per kick. The value N related to the time in minutes is N x 30 minutes. Range: 0~120. Default: 6 (6x30 =180 minutes). Value = 0 Disable temperature scheduled report. 2 Yes Yes 1 0 120 6 From To Description 0 0 Disable temperature scheduled report 1 120 N x 30 minutes temperature scheduled report 7 Temperature Change threshold This parameter determines the change in temperature value resulting in sending temperature value report. Range: 0~80 (10 = 1.0 °C or °F; 20 = 2.0 °C). Value > 0 and <10 set as 10. Default: 10. Value = 0 Disable temperature value scanning, no report. Note: The temperature value is scanned every 5 minutes. A temperature report will be sent if a change over the set threshold valueis detected. 2 Yes 1 0 80 10 From To Description 0 10 No report sent 11 80 Temperature range from 1-80°C 10 Night Light ON Duration Range: 0~1. Value = 0 Night Light ON for 10 seconds (default). Value = 1 Night Light ON for 30 seconds. 2 Yes Yes 1 0 1 0 From To Description 0 0 Night Light ON for 10 seconds 1 1 Night Light ON for 30 seconds 1 Motion Alarm Retrigger Duration The duration in seconds that the motion alarm would not be sent since last motion alarm reported. The motion alarm report is enabled only when the duration timer has expired. Range: 10~3600; Default: 240; value = 10 disable motion alarm report. Any valid value that great than 10 enable motion alarm report. 2 Yes 2 10 3600 240 From To Description 10 10 Disable motion alarm report 11 3600 Enable motion alarm report 3 Motion Clear Duration The period of time in seconds to send motion clear report after motion alarm has reported in Security Mode. Range: 0~3600; Default: 10; value = 0 disable motion clear report. 2 Yes 2 0 3600 10 From To Description 0 0 Disable motion clear report 1 3600 Enable motion clear report 4 Low battery setting Report battery low warning message when battery level reaches this value (percentage). Range: 10~50 (10%~50%) 2 Yes 1 10 50 10 From To Description 10 50 Low warning message when battery level reaches this value
Texts	ID Description Value 8 Where to find S2 DSK on product *If your Z-Wave controller supports S2 Security 2 Authenticated encryption and DSK, enter the first 5 digits of the DSK printed at the bottom of the QR image on the rear of the LUX Z-Wave sensor. ADDING WITH SMART START* LUX Z-Wave sensor is a SmartStart enabled device allowing it to be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity. *Requires a SmartStart compatible controller and app. LUX Z-Wave sensor must be within network range. Scan the DSK QR code image on the front of this manual or on the rear of the LUX Z Wave sensor 2 Classic Exclusion REMOVING LUX Z-WAVE SENSOR FROM A Z-WAVE NETWORK You may need to refer to your Z-Wave gateway’s instructions for removing devices. 1. Put your primary Z-Wave gateway into exclude mode, the gateway should confirm that it is waiting to remove a device, 2. Press the Z-Wave Action button on your LUX Z-Wave sensor for 1 second. 3. The LED on the LUX Z-Wave sensor will display a solid Green LED for 1 second after successful exclusion. 5 Factory Reset Procedure TO FACTORY DEFAULT LUX Z-WAVE SENSOR To reset all LUX Z-Wave sensor settings to factory default, press and hold the Z-Wave Action button for 20 seconds and release. This will remove any previous Z- Wave network inclusion credentials and reset any user set parameters. 4 Wake-Up Procedure LUX will be in wake-up mode for 30 Seconds on power-up (batteries have been inserted). • Event reporting is disabled during wake-up. • LUX Z-Wave sensor also enters wake-up mode for 60 seconds once it has been added into a Z- Wave network - to allow the device to complete a Z-Wave interview. • There is no wake-up Mode after the device has been removed from a Z-Wave network - the unpaired device will function in Walk Test mode. 6 Other Special Features LUX will be in Walk Test mode once it exits wake- up mode. The duration of the Walk Test Mode is configurable by CPN#13. The default is 30 minutes. The Motion Alarm Retrigger Timer CPN#1 and Retrigger Mode CPN#2 are disabled during Walk- Test mode to allow the device to be tested without lockout timers. Motion events report whenever motion has detected. Use Walk-Test Mode to test the sensor’s detection coverage and Z-Wave signal. Please note the Mounting Location and Mounting Height instructions for optimal performance. • To exit Walk-Test mode, press and hold the Z-Wave Action Button for more than 3 seconds then release. 1 Classic Inclusion ADDING LUX Z-WAVE SENSOR INTO A Z-WAVE NETWORK Power up the LUX Z-Wave sensor by inserting the batteries (or fit the batteries in the correct polarity). You may need to refer to your Z-Wave controller’s instructions for adding devices. 1. Put your primary Z-Wave gateway into inclusion mode, the gateway should confirm that it is waiting to add a new device, 2. Press the Z-Wave Action button on your LUX Z-Wave sensor for 1 second. 3. The LED on the LUX Z-Wave sensor will blink Red rapidly, followed by a solid Green LED for 1 second for successful inclusion, or a solid red LED for 1 second for a failed inclusion.
Supported Notification Types	Notification Type Event / State Home Security Cover status: Tampering, product cover removed Home Security Motion sensor status: Motion detection
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature Illuminance
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
Supports SmartStart	Yes
