Product Recognition
Certification Number	ZC10-15100012

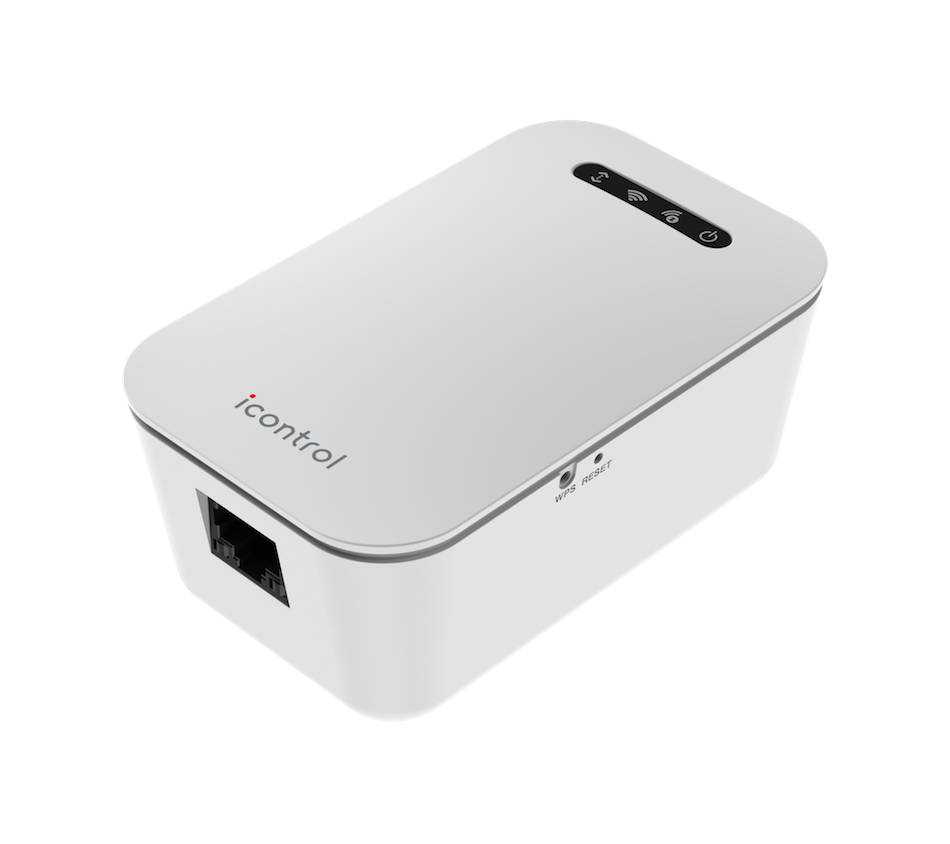

Name	One Link
Short Description	Home Automation Gateway for Icontrol One interactive security systems.
Long Description	The Icontrol One Link provides users with a low cost way to extend their interactive home security system to include home automation. The device includes a dedicated Wi-Fi access point and a Z-Wave controller to provide a robust home automation solution.
Brand	iControl Networks
Product Identifier	CH-1000
OEM Version	App: 1.6
Hardware Platform	SD3503
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Gateway
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0106
Product Type ID	0x0004
Product ID	0x0001
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION Multi-Channel Association V1 0x8E 0 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_NOTIFICATION Notification V1 0x71 0 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_VERSION Version 0x86 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual One Link QIG 10.2015.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Lifeline. On a reset of the controller, the Device Reset Locally command is sent.
Texts	ID Description Value 24 Controller Exclusion To exclude another Z-Wave product, log into the Icontrol user interface and select ""Manage Devices"". Then select ""Z-Wave"". From the Z-Wave screen, select ""Reset"". Perform the necessary steps on the targeted Z-Wave device to exclude it from the system. 23 Controller Inclusion To include another Z-Wave product, log into the Icontrol user interface and select ""Manage Devices"". Then select ""Z-Wave"". From the Z-Wave screen, select ""Add Z-Wave"". Perform the necessary steps on the targeted Z-Wave device to add it to the system. 3 Learn Mode (adding another controller) To include another Z-Wave product, log into the Icontrol user interface and select ""Manage Devices"". Then select ""Z-Wave"". From the Z-Wave screen, select ""Add Z-Wave"". Perform the necessary steps on the targeted Z-Wave controller to add it to the network. 5 Factory Reset To reset the One Link to factory defaults, push and hold the ""Reset"" button for at least 15 seconds (or until all LED's begin flashing simultaneously). Note: resetting your One Link will remove it and all associated devices from your Icontrol system.
Supports NWI	Yes
Supports Explorer Frames	Yes
