Product Recognition
Certification Number	ZC10-17065665

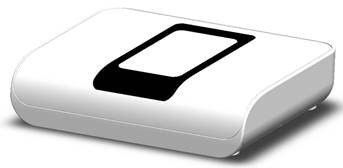

Name	PowerMaster-360
Short Description	PowerMaster-360 is a security, safety and smart home gateway
Long Description	PowerMaster-360 is a security, safety and smart home gateway. It is ideal for clients wishing to combine Wi-Fi and Zwave devices with PowerG security and safety sensors. Combined with a connected home web platform and application, this gateway allows you to control your home from a single point. This latest innovative solution leverages our 30 years of proven security leadership and award-winning technologies.
Brand	ADT Security Services Inc.
Product Identifier	PM-360
OEM Version	0.4.24.10.2
Hardware Platform	ZM5202
Z-Wave Version	6.51.07
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x019C
Product Type ID	0x0001
Product ID	0x0001
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Controllers
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_HAIL Hail 0x82 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_THERMOSTAT_MODE_V2 Thermostat Mode V2 0x40 2 COMMAND_CLASS_THERMOSTAT_SETPOINT_V2 Thermostat Setpoint V2 0x43 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4 COMMAND_CLASS_METER_V4 Meter V4 0x32 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Amdocs Connected Home - User Guide Release 10.1.pdf
Features	Feature Values Communications Connections Value Ethernet (Wired) Ethernet (Wireless/WiFi) USB (Universal Serial Bus) Manufacturer Proprietary Communications Protocol Value Z-Wave Serial API Firmware Updatable Value Updatable by Manufacturer Outdoor Use Color Value White
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion Log in to your Amdocs Connected Home account (via web portal) and start the inclusion wizard (""Add a new device"" button). Select the icon that corresponds to the device to be included, or the generic Z-Wave icon (which works for all Z-Wave devices). Follow the instructions displayed by the inclusion wizard. 24 Controller Exclusion Log in to your Amdocs Connected Home account (via web portal) and go the Devices section (by clicking on the Devices tab). Find the device that needs to be excluded in the list of included devices. Click on the cross mark at the end of the line; this starts the exclusion wizard. Follow the instructions and perform the exclusion procedure on the Z-Wave device when instructed by the exclusion wizard. 5 Factory Reset Log in to your Amdocs Connected Home account (via web portal) and go the Devices section (by clicking on the Devices tab). Scroll down to the bottom of the page and expand the Advanced Settings section (collapsed by default). Click on the ""Reset Network Controller"" button. 3 Learn Mode (adding another controller) Log in to your Amdocs Connected Home account (via web portal) and go the Devices section (by clicking on the Devices tab). Scroll down to the bottom of the page and expand the Advanced Settings section (collapsed by default). Put the other Z-Wave controller in Inclusion Mode and then click on the ""Enter Z-Wave Learn Mode"" button.
Supports NWI	Yes
Supports Explorer Frames	Yes
