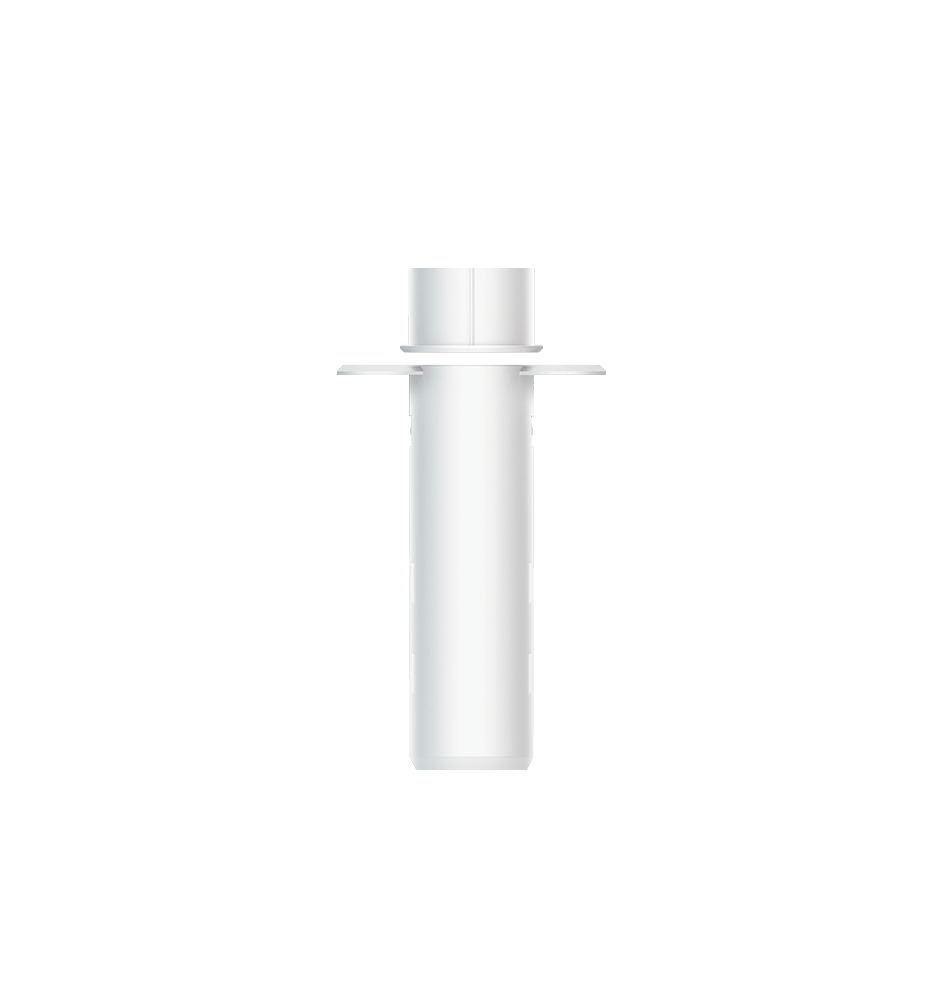

COMMAND_CLASS_CONFIGURATION_V4

Configuration V4

0x70

4

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_INDICATOR_V3

Indicator V3

0x87

3

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_APPLICATION_STATUS

Application Status

0x22

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_SENSOR_BINARY_V2

Sensor Binary V2

0x30

2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_WAKE_UP_V2

Wake Up V2

0x84

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Firmware Update Meta-Data V5

0x7A

5

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association Group Information V3

0x59

3

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_VERSION_V3

Version V3

0x86

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product Manual

Manual_English

Product Manual in English

Adv_Manual

Advanced Information Product Manual

Battery Quantity

Battery Type

Color

Firmware Updatable

1

5

0

Lifeline

0x0001

Lifeline group. (1) Device Reset Locally Notification: Issued when Factory Reset is performed. (2) Battery Report: Issued periodically to report the current battery level; Issued when battery becomes low. (3) Sensor Binary Report: Issued when Magnet is away or near. (4) Notification Report (Type=0x06; Event=0x16): Issued when sensor state is changed to be Open Status. (5) Notification Report (Type=0x06; Event=0x17): Issued when sensor state is changed to be Close Status. (6) Notification Report (Type=0x08; Event=0x01): Issued when battery voltage change exceeds 20%. (7) Notification Report (Type=0x09; Event=0x04;Param=0x55): Issued when reset due to Watch-Dog Timeout.

2

5

0

On/Off control (Access)

0x7106

Issue Basic Set when Magnet is away or near. (The Basic Set Value is determined by Configuration Parameter 3)

1

Binary Sensor Report

Enable/Disable Binary Sensor Report. Allow for backward compatibility to report Binary if Notification Report cannot be used for status changes.

2

1

0

1

0

Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98

From	To	Description
0	0	Disable. Sensor Binary Report will NOT be issued via Lifeline when Magnet is away or near.
1	1	Enable. Sensor Binary Report will be issued via Lifeline when Magnet is away or near.

2

Sensor Reports

Reverse Sensor Reports (both Sensor Binary Report and Notification Report.)

2

1

0

1

0

3

Association Group 2 Settings

Configure the Basic Set value. Determine the Basic Set value to control other Z-Wave devices directly when Magnet is away or near.

2

1

0

6

1

4

Application Layer Retry

Configure retry number and wait time. The device supports an application retry mechanism when the application of the device has detected a transmission error when Basic Set, Sensor Binary Report or Notification Report (Access Control) message is sent out but fails to result in an ACK or a Supervision Report.

2

2

0

1535

0

Yes

81

Led Indicator

Control LED Indicator. Determine whether the LED flash or not when sending Basic Set, Sensor Binary Report, Notification Report (Access Control) or Wake Up Notification.

2

1

0

3

3

101

Timed battery report

Set how often battery is reported in minutes.

2

2

1

14400

70

5

Factory Reset Procedure

If the primary controller is missing or inoperable, you may need to reset the device to factory settings. Make sure the product is powered. To complete the reset process manually, press and hold the Action Button for at least 20s, and release the Action Button when LED becomes solid red color, then Factory Reset is performed. Slow fade-in fade-out red LED color indicates the reset operation is successful. Contact us for further support if needed. Note: 1. This procedure should only be used when the primary controller is missing or inoperable. 2. Factory Reset will: (a) Remove the product from Z-Wave network; (b) Delete the Association setting; (c) Restore the configuration settings to the default.

8

Where to find S2 DSK on product

There is no DSK on the product. In Section Used in this guide, there is a picture showing where the QR and PIN are, as well as a Note saying "QR Code used for SmartStart inclusion. DSK Code can be found on packaging. Do not remove or damage them."

2

Classic Exclusion

1. Set your Z-Wave Controller into its 'Remove Device' mode in order to remove the product from your Z-Wave system. Refer to the Controller's manual if you are unsure of how to perform this step. 2. Make sure the product is powered. 3. Single-click Action Button; LED will become flash red color for 5 seconds, which indicates entering exclusion mode. 4. If the exclusion is successful, LED will change to the default unpaired state which is slow fade-in fade-out red color. 5. Should its LED extinguish without slow fade-in fade-out red color, it indicates the exclusion is unsuccessful. Contact us for further support if needed.

4

Wake-Up Procedure

When re-power on, Wake Up Notification will be issued, and the Wake Up destination is according to the Wake Up Interval Set. The Wake Up period starts when the node issues a Wake Up Notification and it ends either 10 seconds after the last received/transmitted frame or at the reception of a Wake Up No More Information Command by the Wake Up destination. If press and hold the Action Button for 2s and release the Action Button when the LED becomes slow pulsing Red color, Wake Up Notification will also be issued, and the Wake Up destination is according to the Wake Up Interval Set. It will stay awake for 10 minutes after issuing Wake Up Notification, or goes into sleep immediately if receives Wake Up No More Information.

1

Classic Inclusion

1. Press the sensor latch with a slotting screwdriver to remove the lid of the sensor. 2. Squeeze the sides of the sensor casing to alleviate pressure on the chipboard; slide the chipboard out. 3. Remove the Pull Tab to engage the pre-installed battery. The sensor’s LED will fade the color red in and out for a few seconds to indicate that it’s powered on. 4. Set your gateway into its 'add device' mode. Refer to its manual if you are unsure of how to perform this step. Then press Recessed Door Sensor 7's Action Button once; its LED will blink. If your gateway supports S2 security, and you want your device to use this higher level of security, please enter the first 5 digits of the DSK into the gateway's interface when prompted. Refer to the gateway's manual if you are unsure how to perform this step. Do not lose the DSK or remove it from the product or package. 5. When Recessed Door Sensor 7 successfully joins your Z-Wave network its LED will turn solid red for 10 minutes and then off. If fails, its LED turns slow fade-in fade-out red color. Repeat the above steps and please contact us for further support if needed. 6. Squeeze the sides of the sensor casing lightly again and re-insert the chipboard as it was. Re-attach the lid.

Access Control

Door state: Window/door is open

Access Control

Door state: Window/door is closed

Power Management

Power status: Power has been applied

System

SW status: System software failure (manufacturer proprietary failure code provided)
