Certification Number | ZC14-23090337 |
|---|

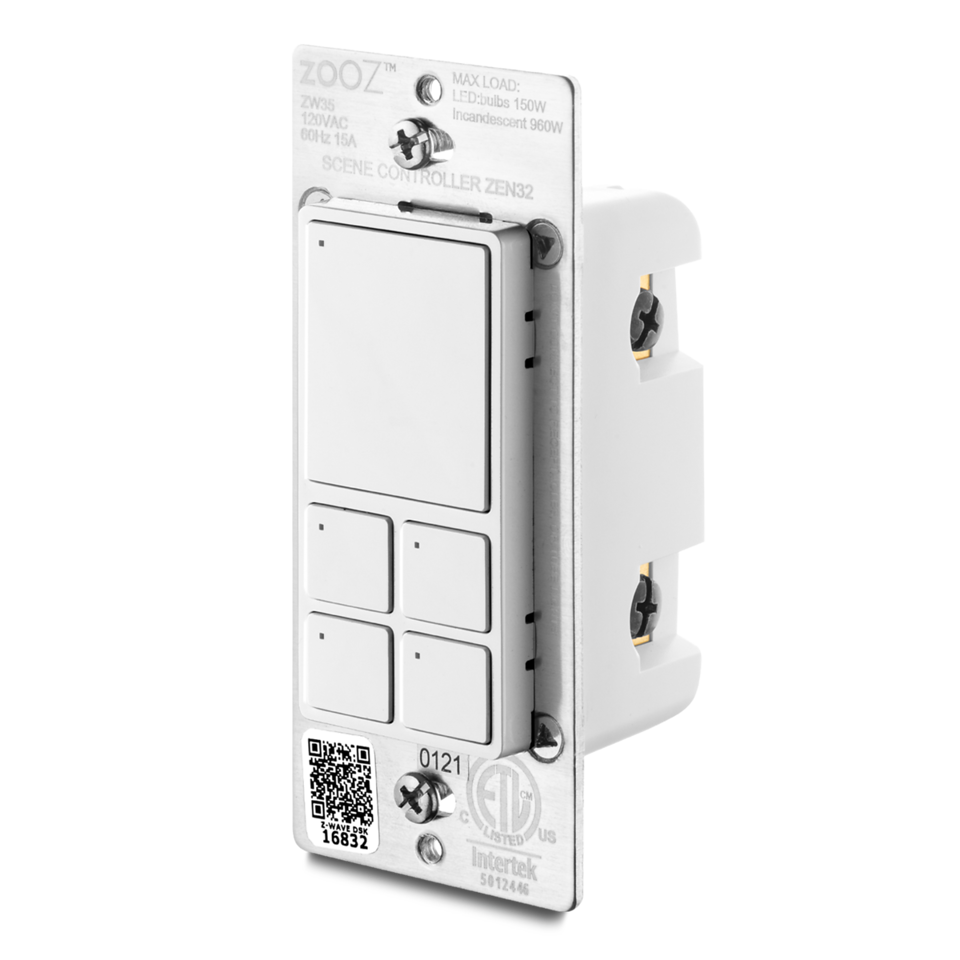

Name | SCENE CONTROLLER |
|---|
Short Description | Control a single load electrically with the main button and up to 35 scenes or devices through remote control. |
|---|
Long Description | PRODUCT FEATURES:
- Switch button: 15 A relay for Z-Wave™ on/off control
- 4 remote control buttons: trigger scenes and control other devices in your Z-Wave™ network from this switch
- NEW 800 series Z-Wave™ chip for better range and faster control
- Direct 3-Way: works with regular on/off switches in a 3-way
- Z-Wave™ Long Range for ultra reliable no-mesh communication
- Smart bulb mode: disable relay and control lights via Z-Wave™
- Adjustable LED indicator in 4 colors and 3 brightness levels
- S2 Security and SmartStart for easier inclusion
SPECS:
- Model Number: ZEN32 800LR
- Z-Wave™ Region: US/CA/MX
- Power: 120 VAC, 60 Hz
- Maximum Load: 150W LED, 960W Incandescent, 1800W (15A) Resistive, 3A motor (DON’T use with receptacles)
- Range: Up to 500 feet line of sight (up to 1 mile with Long Range enabled)
- Operating Temperature: 32-104° F (0-40° C)
- Installation and Use: Indoor only |
|---|
Brand | Zooz |
|---|
Product Identifier | ZEN32 800LR |
|---|
Product Line | Light Switches |
|---|
OEM Version | HW: 02 FW: 02.10 |
|---|
Hardware Platform | EFR32ZG23A |
|---|
Z-Wave Version | 7.19.3 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Binary Switch DT |
|---|
Role Type | ROLE_TYPE_END_NODE_ALWAYS_ON |
|---|
Manufacturer ID | 0x027A |
|---|
Product Type ID | 0x7000 |
|---|
Product ID | 0xA008 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz, US_LR: 912.00MHz, 920.00MHz |
|---|
Categories | On/Off Switches/Devices |
|---|
Countries / Regions | Canada, Mexico, United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY_V2 | Binary Switch V2 | 0x25 | 2 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | File |
|---|
Manual_English | |
|
|---|
Features | Feature | Values |
|---|
Color | | Electric Load Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Neutral Wire Required | | Switch Load Capacity Watts | | Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 10 | 0 | Lifeline | 0x0001 | 2 | 10 | 0 | Main Button BASIC SET | 0x2001 | 3 | 10 | 0 | Main Button SWITCH MULTILEVEL | 0x2001 | 4 | 10 | 0 | Button One BASIC SET | 0x2002 | 5 | 10 | 0 | Button One SWITCH MULTILEVEL | 0x2002 | 6 | 10 | 0 | Button Two BASIC SET | 0x2003 | 7 | 10 | 0 | Button Two SWITCH MULTILEVEL | 0x2003 | 8 | 10 | 0 | Button Three BASIC SET | 0x2004 | 9 | 10 | 0 | Button Three SWITCH MULTILEVEL | 0x2004 | 10 | 10 | 0 | Button Four BASIC SET | 0x2005 | 11 | 10 | 0 | Button Four SWITCH MULTILEVEL | 0x2005 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | Indicator mode for relay | Indicator mode for relay. | 1 | 1 | 0 | 0 | 0x00 | 2 | Indicator mode for Button 1 | Indicator mode for Button 1. | 1 | 1 | 0 | 0 | 0x00 | 3 | Indicator mode for Button 2 | Indicator mode for Button 2. | 1 | 1 | 0 | 0 | 0x00 | 4 | Indicator mode for Button 3 | Indicator mode for Button 3. | 1 | 1 | 0 | 0 | 0x00 | 5 | Indicator mode for Button 4 | Indicator mode for Button 4. | 1 | 1 | 0 | 0 | 0x00 | 6 | Indicator color for relay | Indicator color for relay. | 1 | 1 | 0 | 0 | 0x00 | 7 | Indicator color for Button 1 | Indicator color for Button 1. | 1 | 1 | 0 | 0 | 0x00 | 8 | Indicator color for Button 2 | Indicator color for Button 2. | 1 | 1 | 0 | 0 | 0x00 | 9 | Indicator color for Button 3 | Indicator color for Button 3. | 1 | 1 | 0 | 0 | 0x00 | 10 | Indicator color for Button 4 | Indicator color for Button 4. | 1 | 1 | 0 | 0 | 0x00 | 11 | Indicator brightness for relay | Indicator brightness for relay. | 1 | 1 | 0 | 0 | 0x01 | 17 | Auto Turn-On Timer | Setting auto on minutes. | 1 | 4 | 0 | 0 | 0x00000000 | 23 | Disable LED blinking | Disable LED blinking when a setting is changed. | 1 | 1 | 0 | 0 | 0x00 | 24 | Disable Relay Scene | Disable scene of main button. | 1 | 1 | 0 | 0 | 0x00 | 25 | Association Group Trigger | Select control association group way. | 1 | 1 | 0 | 0 | 0x0F |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | SCAN THE QR CODE / ENTER THE 5-DIGIT DSK if using the new SmartStart method. [a visual arrow pointing to the QR code on the switch] | 1 | Classic Inclusion | 1. Initiate inclusion (pairing) in the app (or web interface).
2. TAP THE MAIN SWITCH BUTTON 3 TIMES QUICKLY if using traditional Z-Wave inclusion.
3. The LED indicator will blink blue to signal communication and turn green for 3 seconds if inclusion is successful or turn red for 3 seconds if the pairing attempt fails. | 2 | Classic Exclusion | 1. Bring your Z-Wave gateway (hub) close to the switch if possible
2. Put the Z-Wave hub into exclusion mode (not sure how to do that? ask@getzooz.com)
3. Tap the main switch button 3 times quickly (the LED indicator will start blinking blue)
4. Your hub will confirm exclusion, the LED indicator on the switch will turn green for 3 seconds, and the device will disappear from your controller's device list
reset | 5 | Factory Reset Procedure | If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the switch, press and hold the switch button for 20 seconds until the LED indicator turns solid red. Release the button, and immediately after, tap remote button 1 once to complete the reset. The LED indicators on all buttons will flash red to confirm a successful reset. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
Radio Range Z-Wave LR (m) | 400 |
|---|
