Product Recognition
Certification Number	ZC10-15080007

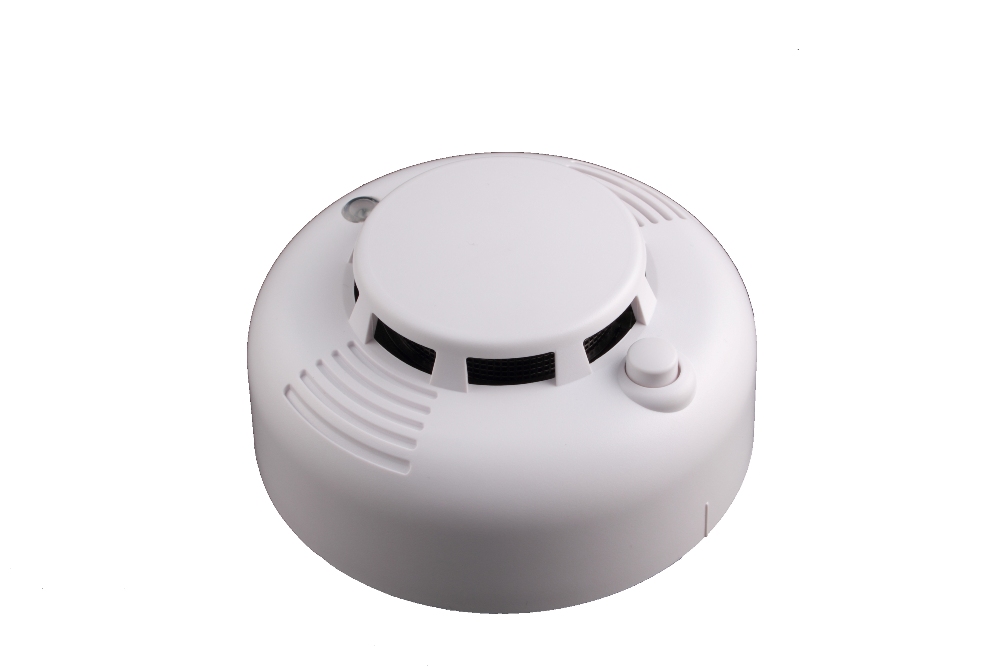

Name	Smoke Detector
Short Description	The SD-8ZW is a Z-Wave smoke detector with a built-in siren to sound audible alerts when alarms occur.
Long Description	The SD-8ZW is a Z-Wave smoke detector with a built-in siren to sound audible alerts when alarms occur. The SD-8ZW triggers alarms by using latest optical chamber technology to detect harmful smoke particles enter its detection chamber.
Brand	Climax Technology
Product Identifier	SD-8ZW
OEM Version	01
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x018E
Product Type ID	0x0003
Product ID	0x0001
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual SD-8ZW 20150804.doc
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 3 5 0 Group 1 for “LifeLine”: Notification CC,V4 (COMMAND_CLASS_NOTIFICATION) Battery CC (COMMAND_CLASS_BASIC) Device Reset Locally CC Group 2 for “Basic Set”: Basic CC, v2 (COMMAND_CLASS_BASIC) Group 3 for “Notification Report”: Notification CC,V4 (COMMAND_CLASS_NOTIFICATION)
Texts	ID Description Value 2 Exclusion The Smoke Detector must be removed from existing Z-wave network before being included into another. There are two methods available to exclude a device. Exclusion Mode -Put the Z-wave gateway or control panel into Exclusion mode (please refer to the Z-wave gateway or control panel manual). -Within 1.5 seconds, press the Test Button 3 times and the Smoke Detector will be removed from the Z-wave network. 1 Inclusion This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufactures and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. -Insert the 3 “AA” batteries into the battery compartment connecting the correct polarity as shown on the battery compartment lid. The Smoke Detector will emit a 2-tone beep. -The LED will start flashing and begin a 6-minute warming period. -Put the Z-wave gateway or control panel into Inclusion or Learning mode (please refer to the Z-wave gateway or control panel manual). -Within 1.5 seconds, press the Test Button 3 times. The Smoke Detector will emit a 2-tone beep and the LED will turn on for ~2 seconds. -Refer to the operation manual of the Z-wave gateway or control panel to complete the learn-in process. -If the sensor has already been included (learnt) into another Z-wave Gateway/Control Panel, or if the sensor is unable to be learnt into the current Z-wave Gateway/Control Panel, please exclude it first (see Exclusion) before attempting to include it into the current Z-wave Gateway/Control Panel. -When the 6-minute warming period is over, the Smoke Detector will emit one short beep to indicate that the Smoke Detector is starting calibration process. The process will be repeated every 100 seconds and notified by a short beep respectively. The Smoke Detector will emit a 2-tone beep and the LED will turn off to indicate calibration is completed. -Normal calibration process lasts 2 - 16 minutes. -If the Smoke Detector emits continuous beeps after 16 minutes, the calibration has failed. Remove the batteries to silence the continuous beeps. -Restart the calibration process by re-inserting the batteries. 4 Device Wake-Up This function uses the Z-Wave Wake Up Command Class. The Wake Up Command Class allows the battery-powered Heat Detector to notify the Control Panel/Gateway that it is awake and ready to receive any queued commands. The wake up interval time period is programmed automatically according to Control Panel’s setting when The Heat Detector is included. The recommended setting of the interval time is between 30 to 60 minutes. 5 Factory Reset (Only use factory reset when network Control Panel/Gateway is missing or inoperable). -Press and hold the Test Button of the Smoke Detector for 8 seconds to factory reset.
Supports NWI	Yes
Supports Explorer Frames	Yes
