Product Recognition

Certification Number

ZC12-22010332

Name

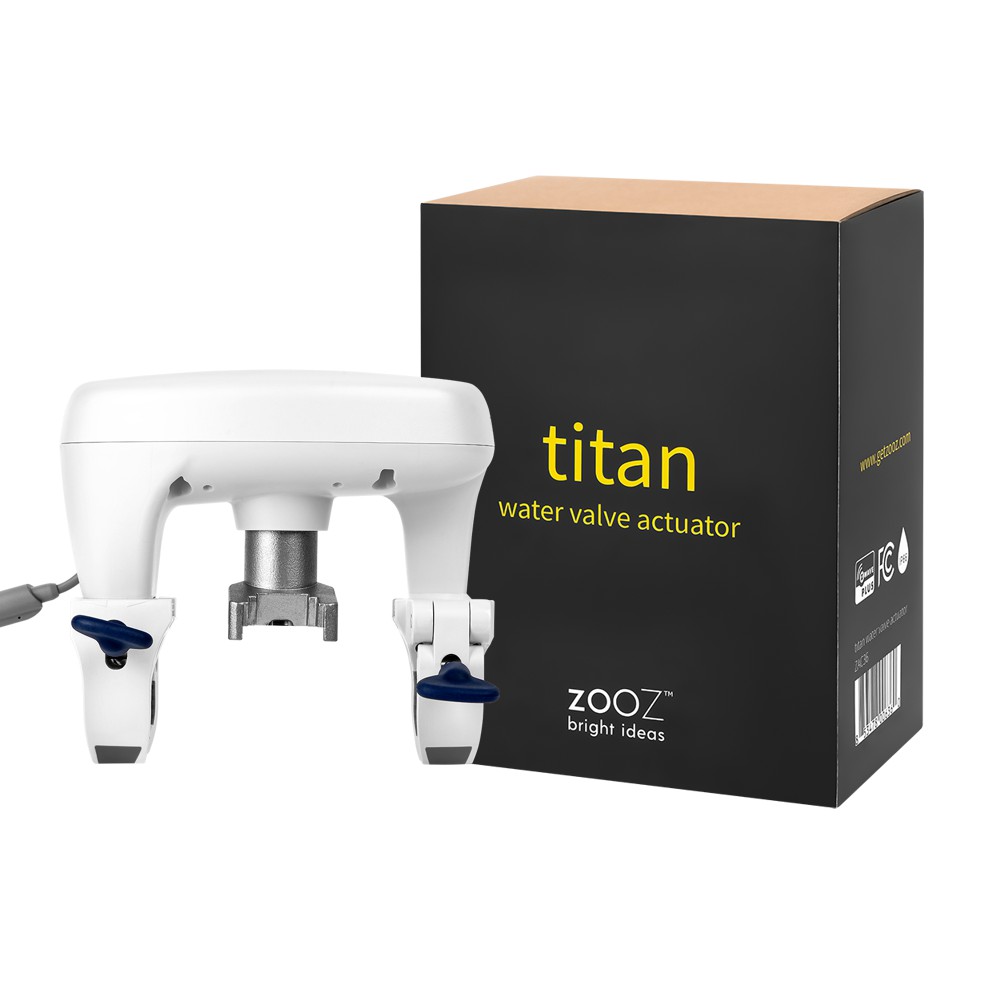

Titan Water Valve Actuator

Short Description

The Titan Water Valve Actuator is the ultimate DIY retrofit solution for flood prevention in the event of a water leak. Install on ball valves only.

Long Description

PRODUCT HIGHLIGHTS: Automatic shut-off actuator for your main water valve Connect it to your Z-Wave™ hub for full smart home control Use it offline with the included leak sensor probe Built-in temperature detection for instant freeze detection Retrofit installation with no tools required Use with 1/2” - 1 1/4” ball valves only (close prior to installation) Indoor & outdoor installation with IP66 rating (avoid direct sunlight) NEW 700 series Z-Wave™ chip for better range and faster control S2 Security and SmartStart for easier inclusion PRODUCT SPECS: Model Number: ZAC36 Z-Wave Signal Frequency: 908.42 MHz Power: 12 V DC (1 A) power supply (included) Temperature Sensor Range: -40° to 257° F Sound Indicator: up to 85 dB Z-Wave Range: Up to 400 feet line of sight (up to 130 feet indoors) Operating Temperature: 14-122° F (-10-50° C) Installation and Use: Indoor & outdoor (IP66) Standby Power Consumption: 0.12 W Full Operation Power Consumption: 8.4 W

Brand

Zooz

Product Identifier

ZAC36

Product Line

Valve Actuators

OEM Version

HW: 3 FW: 3.03

Hardware Platform

ZGM130

Z-Wave Version

7.13.2

Library Type

SLAVE_ENHANCED_232

Device Type

Binary Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x027A

Product Type ID

0x0101

Product ID

0x0036

User Icon

0x1500

Installer Icon

0x1500

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

Water Valves & Irrigation

Countries / Regions

United States of America

Supported Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Freeze Alarm Operation Mode

Decide if you want to allow the valve actuator to open and close during freeze alarm mode. If the actuator is disabled, it won't react to Z-Wave or manual triggers to open or close until the freeze alarm is cleared.

From	To	Description
0	0	operation disabled
1	0	operation enabled (default)

Freeze Recover Value

Set the freeze alarm cancellation trigger value. Default: 36.

511

292

From	To	Description
0	511	degrees

Association Group 5 Freeze Trigger

Decide which report is sent to Group 5 when the freeze alarm (set in parameter 40) is triggered.

From	To	Description
2	0	Basic Set off
0	0	reports to Group 5 disabled (default)
1	0	Basic Set on

Association Group 5 Freeze Cancel

Decide which report is sent to Group 5 when the freeze alarm is cancelled.

From	To	Description
2	0	Basic Set off
1	0	Basic Set on
0	0	reports to Group 5 disabled (default)

Association Group 3 Water Leak Trigger

Decide which report is sent to Group 3 when a leak alarm is triggered (from the connected leak detection probe). Values:

From	To	Description
2	0	Basic Set off
1	0	Basic Set on (default)
0	0	reports to Group 3 disabled

Buzzer

Decide if you'd like to receive sound (beep) feedback when operating the actuator as well as sound alarms for different modes and alarms the actuator goes into when installed.

From	To	Description
0	0	sound notifications disabled
1	0	sound notifications enabled (default)

LED Brightness Level

Decide how bright you'd like the LED indicator to be on your actuator. If you set it to value 0, the LED indicator will be disabled. Default: 80.

From	To	Description
0	99	%

Association Group 3 Water Leak Cancel

Decide which report is sent to Group 3 when the leak alarm is cleared (water is no longer detected by the connected probe).

From	To	Description
2	0	Basic Set off
1	0	Basic Set on
2	0	Basic Set off
0	0	reports to Group 3 disabled (default)
2	0	Basic Set off

Water Leak Detection Valve Control

Decide if you want to allow the valve actuator to open and close during a leak alarm event. If the actuator is disabled, it won't react to Z-Wave or manual triggers to open or close until the leak alarm is cleared.

From	To	Description
0	0	operation disabled
1	0	operation enabled (default)

Water Valve Command and Reporting Behavior

Decide which Z-Wave commands and reports you'd like to use to display when the device is open or closed (or to open / close the device). Default value: 1.

From	To	Description
0	0	reports on when the valve is open (opens the valve when an "on" report is sent from the hub), reports off when the valve is closed (closes the valve when an "off" report is sent from the hub)
1	0	reports off when the valve is open (opens the valve when an "off" report is sent from the hub), reports on when the valve is closed (closes the valve when an "on" report is sent from the hub)

Z-Wave Button Lock Protection

Enable Z-Wave button lock protection if you'd like to prevent the Z-Wave button from being locked accidentally.

From	To	Description
0	0	Z-Wave button lock disabled (default)
1	0	Z-Wave button lock enabled

Texts

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes
