Product Recognition

Certification Number

ZC14-22030089

Name

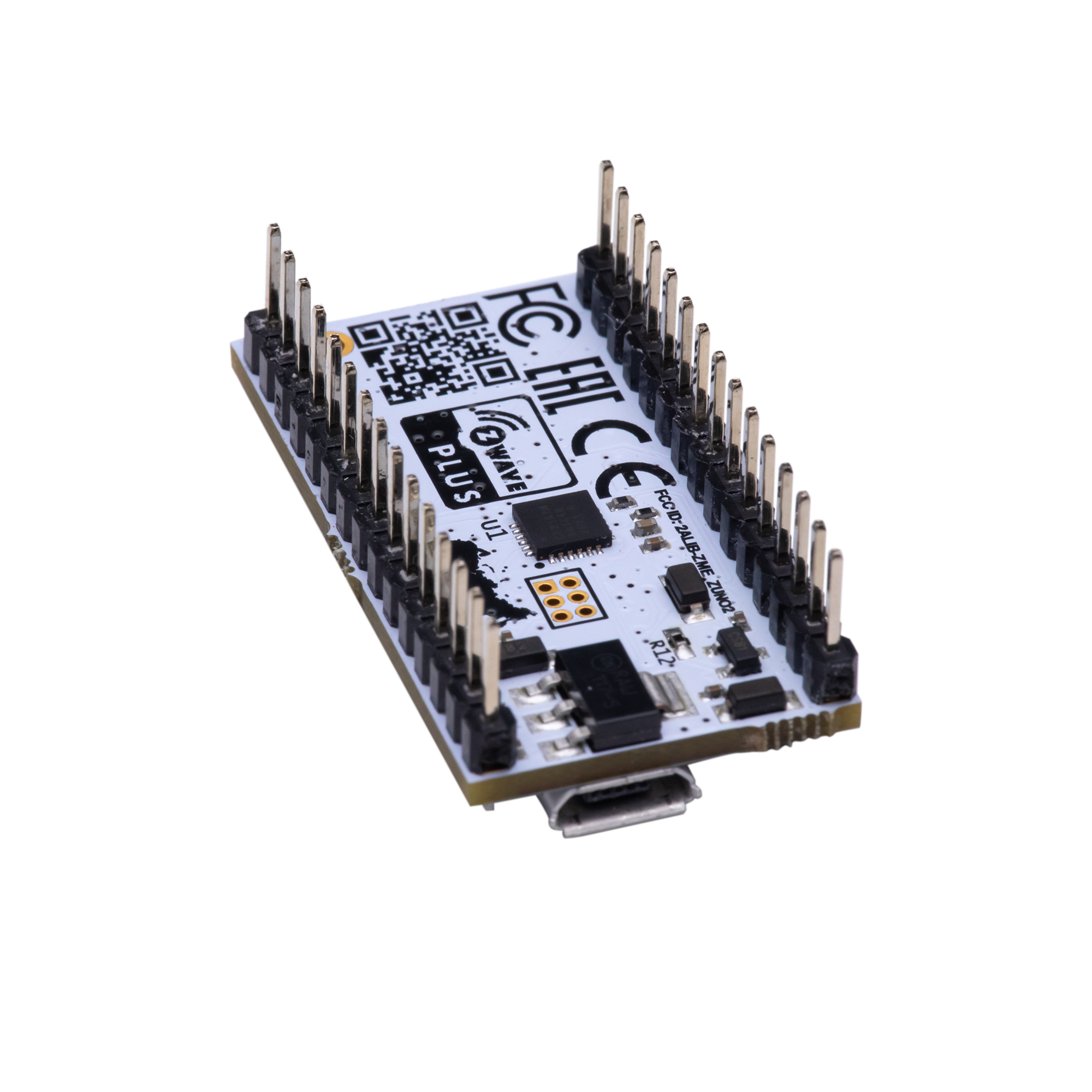

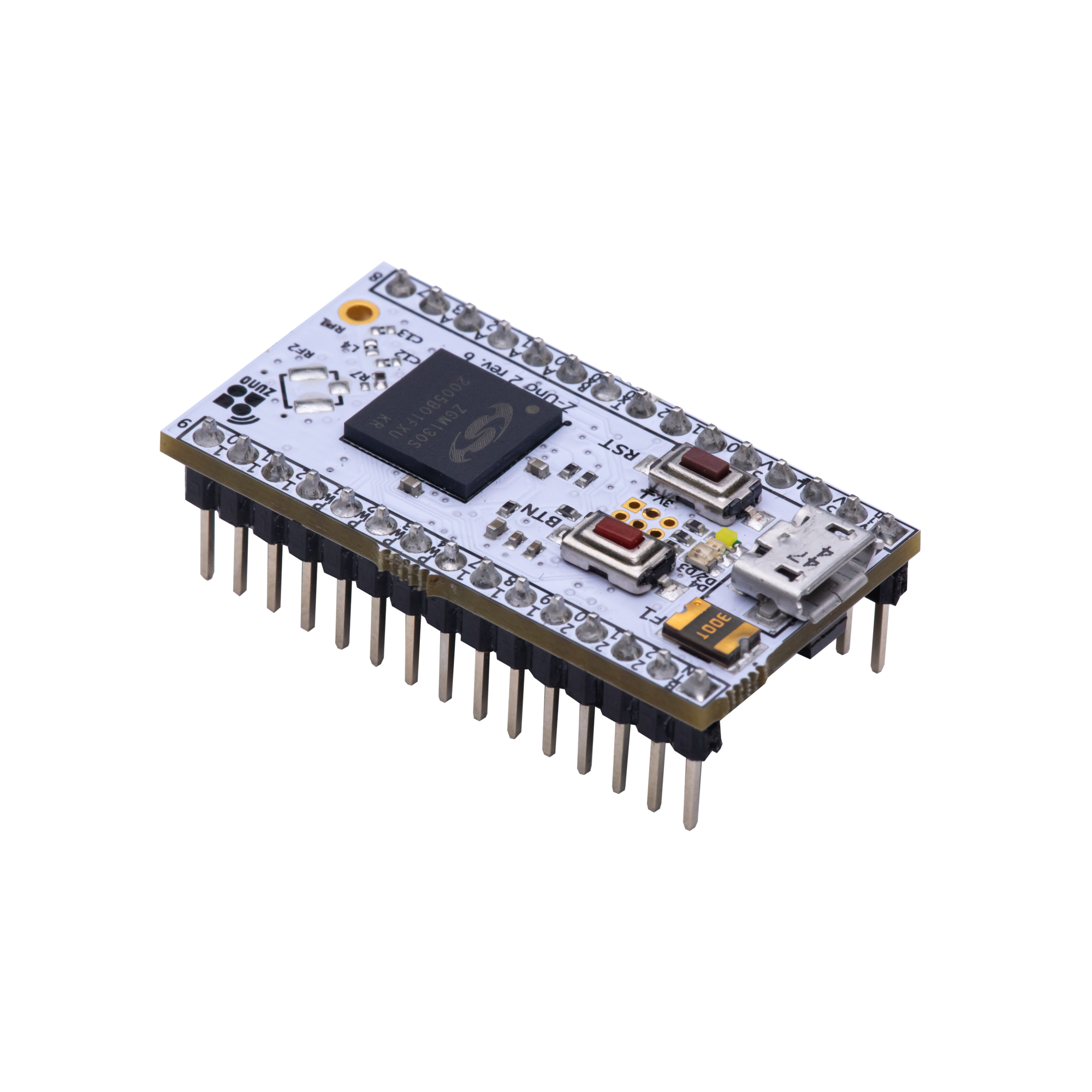

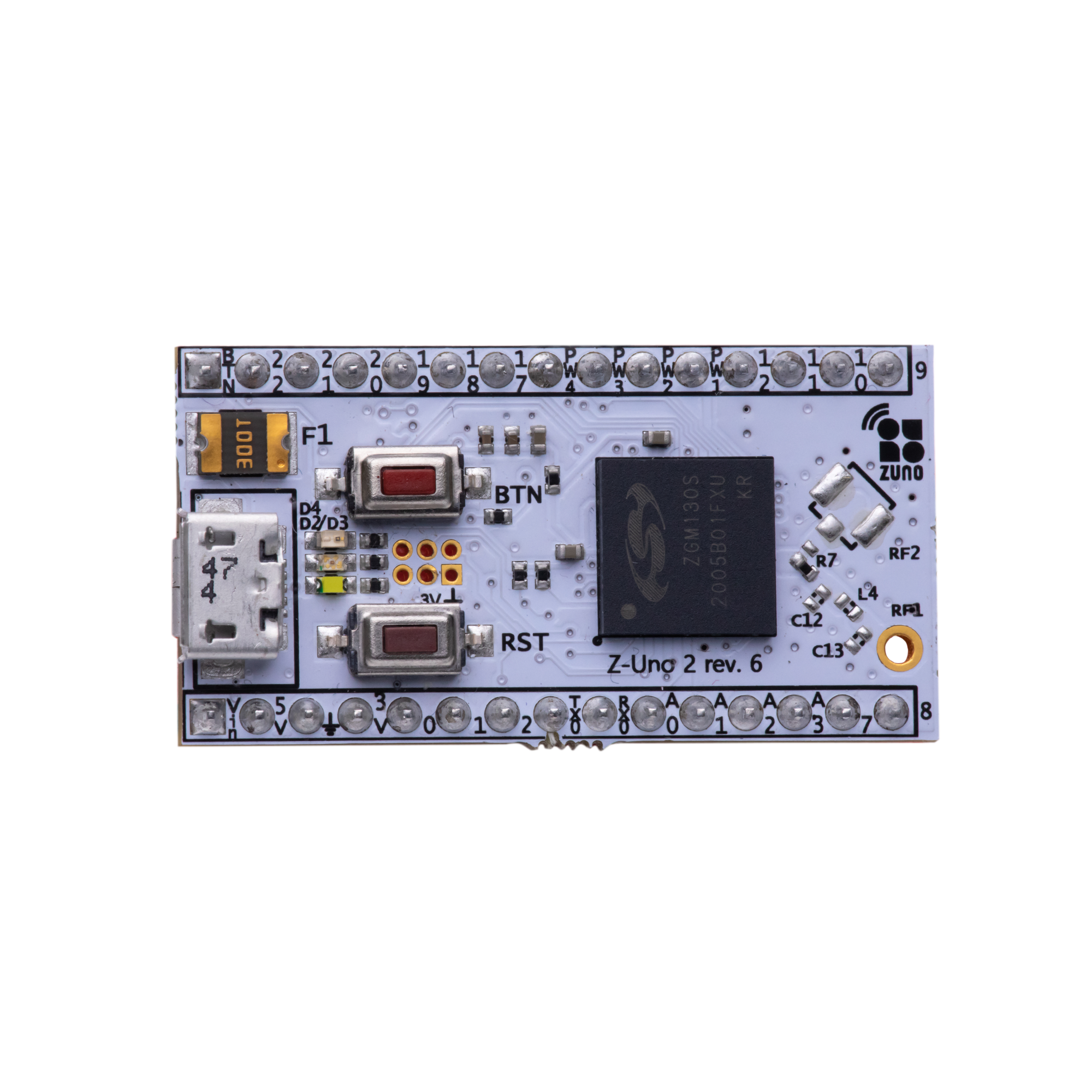

Z-Uno G2

Short Description

Z-Uno is a Z-Wave™ prototyping and development board. It allows you to create your own Z-Wave devices and sensors. Compatible with Arduino IDE and VSCode.

Long Description

Z-Uno is the first and only easy-to-use developer board that allows you to create your own Z-Wave™ device without deep knowledge of Z-Wave protocol or programming. Z-Uno is a mix of Z-Wave home automation radio protocol power and Arduino simplicity. Being inspired by the Arduino project Z-Uno inherits all concepts of easy-to-use hardware and software solutions, keeping maximum flexibility. Z-Uno is a fully DIY product. It is made for those who are limited by the existing choice of Z-Wave products and want to extend their smart homes with more sensors and actuators: connect LEDs, buttons, switches, motors or any low voltage sensor including most of Arduino compatible sensors. Z-Uno programming is done by writing sketches in simplified C language and loaded into Z-Uno using Arduino IDE or VSCode. Many examples and comprehensive tutorials will help you to make your own project.

Brand

Z-Uno by Z-Wave.Me

Product Identifier

Z-Uno G2

Product Line

Z-Uno

OEM Version

HW: 04 FW: 03.09:01.01

Hardware Platform

ZGM130S037HGN2 / ZGM130S037HGN1

Z-Wave Version

7.16.2

Library Type

END_NODE_ENHANCED_232

Device Type

Binary Switch DT

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0115

Product Type ID

0x0210

Product ID

0x0001

User Icon

0x0700

Installer Icon

0x0700

Frequency Plans

ANZ: 919.80MHz, 921.40MHz, EU: 869.85MHz, 868.40MHz, HK: 919.80MHz, 919.80MHz, IL: 916.00MHz, IN: 865.20MHz, JP: 922.50MHz, 923.90MHz, 926.30MHz, KR: 920.90MHz, 921.70MHz, 923.10MHz, RU: 869.00MHz, US: 916.00MHz, 908.40MHz, CN: 868.40MHz, US_LR: 912.00MHz, 920.00MHz

Categories

Hospitality, Installer Tools, Locks, Sensors, Window Covering, Thermostats, Computer Controller Interfaces, Water Valves & Irrigation, Energy Meters, On/Off Switches/Devices, Dimming Lighting Devices, Motor Control, HVAC, Lighting Accessories, Security Systems, Fan Control, Gas Valves

Countries / Regions

Australia, Brazil, Chile, Dominican Republic, El Salvador, Indonesia, Malaysia, New Zealand, Paraguay, Peru, Uruguay, Venezuela, Vietnam, Algeria, Armenia, Bahrain, European Union, Cyprus, Moldova, Egypt, French Guiana, Georgia, Iraq, Jordan, Kazakhstan, Kuwait, Lebanon, Libya, Maldives, Mauritius, Nigeria, Oman, Philippines, Qatar, Saudi Arabia, South Africa, Turkmenistan, United Arab Emirates, ZU, Yemen, Hong Kong, Israel, India, Costa Rica, Japan, Macao, Singapore, Republic of Korea, Taiwan, Thailand, Russian Federation, Argentina, Bahamas, Barbados, Bermuda, Bolivia, British Virgin Islands, Canada, Cayman Islands, Colombia, Ecuador, Guatemala, Haiti, Honduras, Jamaica, Mexico, Nicaragua, Panama, Saint Kitts and Nevis, Suriname, Trinidad and Tobago, Turks and Caicos Islands, United States of America, China, Morocco

Supported Command Classes

S2 Classes

S2_AUTHENTICATED, S2_UNAUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Texts

ID	Description	Value
8	Where to find S2 DSK on product	Z-Uno supports SmartStart technology. You are able to add device to network by means of special QR-code/SmartStart string. Just plug in ZUno to power supply and scan SmartStart label, no other interruction with device is needed. User is able to get SmartStart string using zme_make utility manually or by means of ArduinoIDE. You have to select "verbose output" in preferences of IDE. Smart Strart QR-code is listed in "Z-Uno board information" section. Manually you are able to do it using the command: zme_make boardInfo -q -d . It will save qr-code image into "/path/to/qrcode_output_filename.png".
1	Classic Inclusion	To become part of Z-Wave network Z-Uno need to be included (added) to the network using Z-Wave controller. Read more about inclusion and exclusion processes. Inclusion and exclusion (the process of removing a node from the network) are confirmed on Z-Uno by three press on the Service button. This sequence will also tell Z-Uno to send Node Information Frame (NIF). You are able to use special non-secure inclusion using this sequence: hold the Service button until you'll see that the red LED is blinking, release the Service button and then short press it.
2	Classic Exclusion	To become part of Z-Wave network Z-Uno need to be included (added) to the network using Z-Wave controller. Read more about inclusion and exclusion processes. Inclusion and exclusion (the process of removing a node from the network) are confirmed on Z-Uno by three press on the Service button. This sequence will also tell Z-Uno to send Node Information Frame (NIF). You are able to use special non-secure inclusion using this sequence: hold the Service button until you'll see that the red LED is blinking, release the Service button and then short press it.
5	Factory Reset Procedure	You are able to reset Z-Uno using this sequence: hold the Service button until you'll see that the red LED is blinking, release the Service button and then triple click on it. You have to see another red LED pattern when device will be ready.

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes
